Home > products > Hydraulic CNC Press Brake > 330mm 1600kn Hydraulic CNC Press Brake DA58T Industrial Pipe Bending Machine

330mm 1600kn Hydraulic CNC Press Brake DA58T Industrial Pipe Bending Machine

Product Details

Place of Origin: China

Brand Name: AOXUANZG

Certification: CE

Model Number: WE67K-160T/3200

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Packaging Details: Standard export packing

Delivery Time: 20-30 days

Payment Terms: L/C, T/T, Western Union, D/P, D/A

Supply Ability: 500sets/Year

Get Best Price
Highlight:

330mm Hydraulic CNC Press Brake

,

1600kn Hydraulic CNC Press Brake

,

DA58T Industrial Pipe Bending Machine

Controller:
Delem DA58T
Type:
CNC
Pressure:
1600kn
Length:
3200mm
Throat Depth:
330mm
Max.Open Height:
457mm
Strokes Times:
≥6times/min
Main Motor:
11kw
Controller:
Delem DA58T
Type:
CNC
Pressure:
1600kn
Length:
3200mm
Throat Depth:
330mm
Max.Open Height:
457mm
Strokes Times:
≥6times/min
Main Motor:
11kw

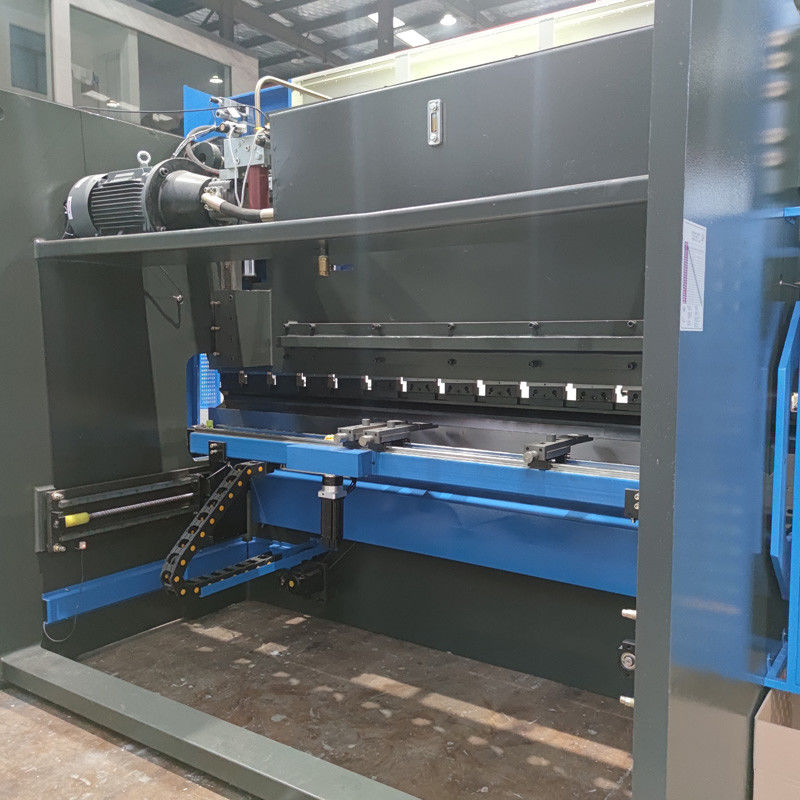

330mm 1600kn Hydraulic CNC Press Brake DA58T Industrial Pipe Bending Machine
High Quality DA58T CNC Hydraulic Press Brake Bending Machine On Sale

CNC press brake uses the mold (general or special mold) to bend a cold metal sheet into a workpiece of various geometric cross-section shapes. It is a sheet metal forming machine designed for cold rolling sheet metal processing. It is widely used in sheet metal bending, such as automobile, aircraft manufacturing, light industry, shipbuilding, container, elevator, railway vehicles and other industries.


Technical Parameters:



Model Norminal pressure (KN) Worktable Length (mm) Columns Distance (mm) Throat Depth (mm) Slider Stroke(mm) Max Open hight (mm) Main motor power(KW) Crowing Cylinders Control Axes X axis stroke(mm) X axis speed(mm/s) Dimension
LxWxH (mm)
WC67Y/K-63/2500 630 2500 1900 350 170 380 5.5 2 3+1 500 200 3100×1450×2050
WC67Y/K-80/3200 800 3200 2700 350 170 380 7.5 3 3+1 500 200 3500×1550×2100
WC67Y/K-100/3200 1000 3200 2700 400 200 420 7.5 3 3+1 500 200 3500×1580×2400
WC67Y/K-160/3200 1600 3200 2700 400 200 420 11 3 3+1 500 200 3500×1650×2550
WC67Y/K-200/3200 2000 3200 2700 400 200 420 15 3 3+1 500 200 3500×1680×2550
WC67Y/K-250/3200 2500 3200 2700 400 200 420 15 3 3+1 500 200 3500×1700×2600
WC67Y/K-320/3200 3200 3200 2700 400 200 420 22 3 3+1 500 200 3500×1800×2730
WC67Y/K-400/4000 4000 4000 3500 500 320 600 30 4 3+1 500 200 4300×2450×3500
WC67Y/K-500/5000 5000 5000 3900 500 320 600 37 / 3+1 800 200 5400×2810×4300
WC67Y/K-500/6000 5000 6000 4900 500 320 600 37 / 3+1 800 200 6500×2810×4300
WC67Y/K-500/7000 5000 7000 4900 500 320 600 37 / 3+1 800 200 7500×2810×4900
WC67Y/K-600/5000 6000 5000 3900 500 320 600 45 / 3+1 800 200 5500×2910×4900
WC67Y/K-600/6000 6000 6000 4900 500 320 600 45 / 3+1 800 200 6500×2910×5100
WC67Y/K-600/7000 6000 7000 5900 500 320 600 45 / 3+1 800 200 7500×2910×5200
WC67Y/K-800/6000 8000 6000 4900 600 400 600 55 / 3+1 800 200 6500×2750 ×5300
WC67Y/K-800/8000 8000 8000 6900 600 400 600 55 / 3+1 800 200 8500×2750×5900
WC67Y/K-1000/6000 10000 6000 4900 600 400 600 2×37 / 3+1 800 200 6500×2800×5600
WC67Y/K-1000/8000 10000 8000 6900 600 400 600 2×37 / 3+1 800 200 8500×2800×6100
WC67Y/K-1000/10000 10000 10000 8000 600 400 600 2×37 / 3+1 800 200 10500×2800×5850
WC67Y/K-1200/6000 12000 6000 4900 600 400 800 2×37 / 3+1 1000 200 6500×3100×5850
WC67Y/K-1200/8000 12000 8000 6900 600 400 800 2×37 / 3+1 1000 200 8500×3100×7150




330mm 1600kn Hydraulic CNC Press Brake DA58T Industrial Pipe Bending Machine 0



330mm 1600kn Hydraulic CNC Press Brake DA58T Industrial Pipe Bending Machine 1



Safety Equipment:
Safety Standards(2006/42/EC)
1.EN 12622:2009+a1:2003
2.EN ISO 12100:20110
3.EN 60204-1:2006+A1:2009



Details:

Electric Components
Brand: Schneider France
Original: France
All press brake electrical components original from Schneider France. Also our machine use frequency inverter.



330mm 1600kn Hydraulic CNC Press Brake DA58T Industrial Pipe Bending Machine 2



Backgauge
4+1 Axis CNC Backgauge ,including the (Y1 , Y2 ,X,R + crowing )
the fine adjustment with high accuracy up to ± 0.02mm
330mm 1600kn Hydraulic CNC Press Brake DA58T Industrial Pipe Bending Machine 3

Motor
Brand: Siemens Germany

Original: Germany
All press brake motor original from Siemens Germany. Our bending machine warranty is 2 years.


330mm 1600kn Hydraulic CNC Press Brake DA58T Industrial Pipe Bending Machine 4



For more information, please contact me (^o^)/~
