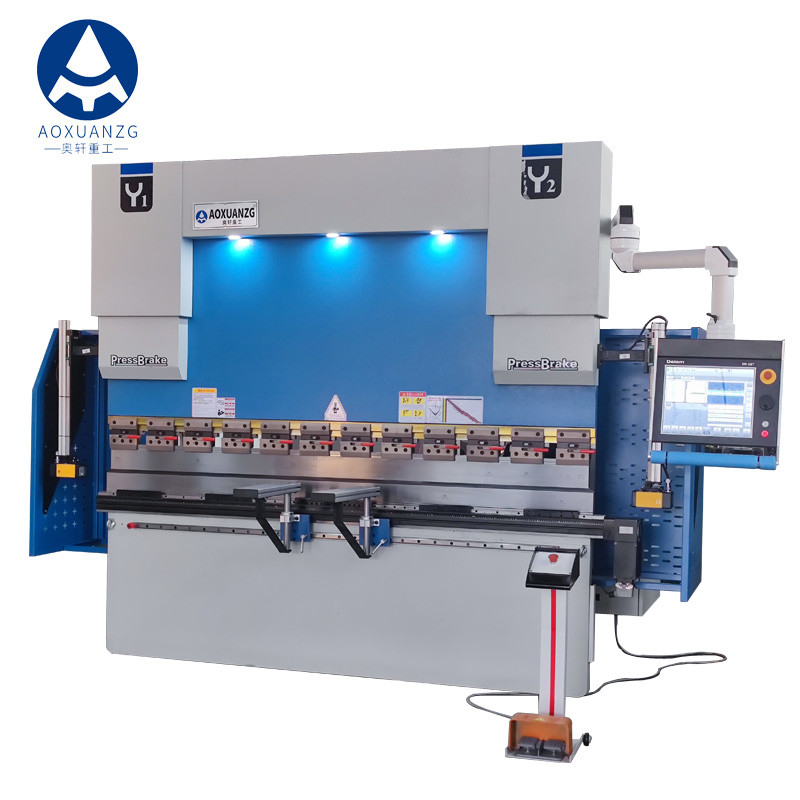

7.5 KW DA66T 6+1 Axis Hydraulic CNC Press Brake For Metal Sheet

Product Details

Place of Origin: China

Brand Name: AOXUANZG

Certification: CE

Model Number: WE67Y-100T/2500

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: $38859-$58978/unit

Packaging Details: Standard export packing

Delivery Time: 20-30 days

Payment Terms: L/C, T/T, Western Union, D/P, D/A

Supply Ability: 500sets/Year

Get Best Price
Highlight:

Metal Sheet Hydraulic CNC Press Brake

,

7.5 KW Hydraulic CNC Press Brake

,

DA66T Hydraulic CNC Press Brake

Raw Material:
Carbon Steel Stainless Steel
System:
Delem DA66T
Machine Type:
Muti-axis Hydraulic CNC Bending Machine
Pressure:
100T
Bend Length:
2500mm
Distance Between Housings:
2050mm
Throat Depth:
320mm
RAM Stroke:
140mm
Open Height:
395mm
Strokes:
≥8 Times/min
Motor:
7500w
Machine Size:
2600*1800*2400mm
Raw Material:
Carbon Steel Stainless Steel
System:
Delem DA66T
Machine Type:
Muti-axis Hydraulic CNC Bending Machine
Pressure:
100T
Bend Length:
2500mm
Distance Between Housings:
2050mm
Throat Depth:
320mm
RAM Stroke:
140mm
Open Height:
395mm
Strokes:
≥8 Times/min
Motor:
7500w
Machine Size:
2600*1800*2400mm
7.5 KW DA66T 6+1 Axis Hydraulic CNC Press Brake For Metal Sheet
7.5 KW DA66T 6+1 Axis CNC Press Bender Folding Brake Mchine Metal Sheet


CNC ELECTRO-HYDRAULIC SYNCHRONOUS CNC PRESS BRAKE
CNC series of press brakes has been designed and crafted with an ethos of heavy duty quality. The range also features the multi-axis CNC controller, delivering the ability to handle complex, multi-bend operations quickly and easily. Touch screen control is quick and easy thanks to the user-friendly interface. There is also the option of preparing the production off line on a PC with the software provided, enabling feasibility checks prior to production


Optional Controller
The control panel you choose can have a real impact on your productivity. To ensure you get the most out of your Press Brake, the best decisions are always guided by your industry, your product and even the things you hope to undertake in the future. We have DA52S, DA53T, DA58T, DA66T, DA69T, S630, S640, Cybtouch8, Cybtouch12 and other cnc controller.



7.5 KW DA66T 6+1 Axis Hydraulic CNC Press Brake For Metal Sheet 07.5 KW DA66T 6+1 Axis Hydraulic CNC Press Brake For Metal Sheet 1



Technical Parameters:
7.5 KW DA66T 6+1 Axis Hydraulic CNC Press Brake For Metal Sheet 2​

Model

Nominal pressure

(KN)

Worktable Length

(mm)

Columns Distance

(mm)

Throat Slider Max Main Dimension
Depth Stroke Open motor L x W x H
(mm) (mm) height Power (mm)
    (mm) (KW)
WC67Y/K-30/1600 300 1600 1280 200 80 190 3 1700×900×1650
WC67Y/K-30/2000 300 2000 1280 200 80 190 3 1700×900×1650
WC67Y/K-40/2500 400 2500 1900 280 100 320 5.5 2600×1100×1900
WC67Y/K-63/2500 630 2500 1900 350 170 380 5.5 3100×1450×2050
WC67Y/K-80/3200 800 3200 2700 350 170 380 7.5 3500×1550×2100
WC67Y/K-100/3200 1000 3200 2700 400 200 420 7.5 3500×1580×2400
WC67Y/K-160/3200 1600 3200 2700 400 200 420 11 3500×1650×2550
WC67Y/K-200/3200 2000 3200 2700 400 200 420 15 3500×1680×2550
WC67Y/K-250/3200 2500 3200 2700 400 200 420 15 3500×1700×2600
WC67Y/K-320/3200 3200 3200 2700 400 200 420 22 3500×1800×2730
WC67Y/K-400/4000 4000 4000 3500 500 320 600 30 4300×2450×3500
WC67Y/K-500/5000 5000 5000 3900 500 320 600 37 5400×2810×4300
WC67Y/K-500/6000 5000 6000 4900 500 320 600 37 6500×2810×4300
WC67Y/K-500/7000 5000 7000 4900 500 320 600 37 7500×2810×4900
WC67Y/K-600/5000 6000 5000 3900 500 320 600 45 5500×2910×4900
WC67Y/K-600/6000 6000 6000 4900 500 320 600 45 6500×2910×5100
WC67Y/K-600/7000 6000 7000 5900 500 320 600 45 7500×2910×5200
WC67Y/K-800/6000 8000 6000 4900 600 400 600 55 6500×2750 ×5300
WC67Y/K-800/8000 8000 8000 6900 600 400 600 55 8500×2750×5900
WC67Y/K-1000/6000 10000 6000 4900 600 400 600 2×37 6500×2800×5600
WC67Y/K-1000/8000 10000 8000 6900 600 400 600 2×37 8500×2800×6100
WC67Y/K-1000/10000 10000 10000 8000 600 400 600 2×37 10500×2800×5850
WC67Y/K-1200/6000 12000 6000 4900 600 400 800 2×37 6500×3100×5850
WC67Y/K-1200/8000 12000 8000 6900 600 400 800 2×37 8500×3100×7150




Details:


The standard cofiguration:


Germany Bosch Rexroth safety valve
Germany EMB Hose connector
Schneider Electric System
Quick mold clamping device


7.5 KW DA66T 6+1 Axis Hydraulic CNC Press Brake For Metal Sheet 3

DA66T Controller System:



7.5 KW DA66T 6+1 Axis Hydraulic CNC Press Brake For Metal Sheet 4



Backgauge
6 Axis CNC Backgauge ,including the R1 R2 ; X1 X2 ; Z1 Z2 ,can move up and down ; front and back , left and right , the fine adjustment with high accuracy up to ± 0.02mm



7.5 KW DA66T 6+1 Axis Hydraulic CNC Press Brake For Metal Sheet 5



Quick Clamp
The standard quick fixture will help you to change the upper mold better in a short time. Convenient to save time and improve work efficiency.



7.5 KW DA66T 6+1 Axis Hydraulic CNC Press Brake For Metal Sheet 6



Laser Protection Device (optional)
It can effectively prevent the occurrence of pinching when working in fast mode. Good safety performance and long service life.



7.5 KW DA66T 6+1 Axis Hydraulic CNC Press Brake For Metal Sheet 7



7.5 KW DA66T 6+1 Axis Hydraulic CNC Press Brake For Metal Sheet 8



Customized molds:



7.5 KW DA66T 6+1 Axis Hydraulic CNC Press Brake For Metal Sheet 9



7.5 KW DA66T 6+1 Axis Hydraulic CNC Press Brake For Metal Sheet 10



Front supporter
Simple structure,with powerful function, supporting up/down adjustment,and can move along T-shaped channel or the linear guide rail in horizontal direction.



7.5 KW DA66T 6+1 Axis Hydraulic CNC Press Brake For Metal Sheet 11



Certifications:
 7.5 KW DA66T 6+1 Axis Hydraulic CNC Press Brake For Metal Sheet 12 7.5 KW DA66T 6+1 Axis Hydraulic CNC Press Brake For Metal Sheet 13



Packing and shipping:
For standard export packaging, the whole body of the machine is wrapped with plastic film, and then packed in wooden cases.There two kinds of ways: LCL is for small press brake, FCL is for big press brake.

※ LCL: Covered by plastic films, packed by wooden case.
※ FCL: Covered by plastic films, packed by a container.
☀ Beforepackaged, the machines will be tested strictly to guarantee the stability and high accuracy.
☂ After tested, the machines will be wrapped with plastic sheet ,machine will be securely wired to the container.
☂ Each Press Brake with plastic film package first, then placed in a wooden case, wooden case with a foam filling.
✈ We loaded the truck with heavy trucks for loading the cargo to the harbor terminal.At the dock we pack the goods in containers and ship them abroad.

Delivery Detail :
✈ Shipped in 30 days after payment.


 7.5 KW DA66T 6+1 Axis Hydraulic CNC Press Brake For Metal Sheet 14​ 7.5 KW DA66T 6+1 Axis Hydraulic CNC Press Brake For Metal Sheet 15

Our Service
Pre-sales.

* Project design, performance introduction, technical agreement, contract signing, packaging * Inquiry and consulting support.
* Sample testing support.
In-sales.

* We will provide you with the latest progress in the product assembly, packaging and transportation.


Our workshop:


7.5 KW DA66T 6+1 Axis Hydraulic CNC Press Brake For Metal Sheet 16  7.5 KW DA66T 6+1 Axis Hydraulic CNC Press Brake For Metal Sheet 17

Customer & EXPO:
  7.5 KW DA66T 6+1 Axis Hydraulic CNC Press Brake For Metal Sheet 18​  7.5 KW DA66T 6+1 Axis Hydraulic CNC Press Brake For Metal Sheet 19

RFQ

1. Are you the manufacture? Can we visit your factory?
◆ Of course, you can. We are manufacturer and we are located in Anhui,China. We have our own team for products design. Welcome to visit our factory and check our machine qualtiy, any question will be solved on time.

2.What's your main product? What is your main foreign market?
◆ Our main products are press brake, shears machines, press, cutting machine, locking machine , auto duct line and related products.Our main foreign markets are Asia, North America, Europe, and Africa.

3. What are the advantages of your machines? And how can I believe the quality of your product?
◆ The main configuration is import high quality products, and professional product quality inspection team ensures machine in top-quality, precision and life. For example, Germany Bosch-Rexroth Valve group,Germany Siemens Main Motor,Schneider Electrics system and so on. Once tested as qualified, our machine would be sent out. So The quality of our product is stable and reliable.

4. Are you able to update the production process Information in time after placing our order?
◆ After confirming your order ,we would keep you updated of production details of emails and photos.

5. Can we be your agent?
◆ Yes,we are looking for global agent, and we will help agent improve the market ,and supply all the service like machine
technical problem or other after-sales problem, meanwhile ,you can get big discount and commission.

6. Payment terms?
◆ T/T, L/C, Western Union, Paypal, Alibaba Secure Payment ect.

7. Are you provide product metal parts and provide us technical guidance?
◆ Wearing parts, Disassembly tool(free) are what we could provide.And we can give you technical guidance.Our technical staff can go abroad to provide you with professional technical guidance.

8. How long is your warranty?
◆ 2 years free warranty, life-long maintenance.

9.Do you accept customer Logo and customized ?
◆ We accept kinds of customized , including logo and machine .
