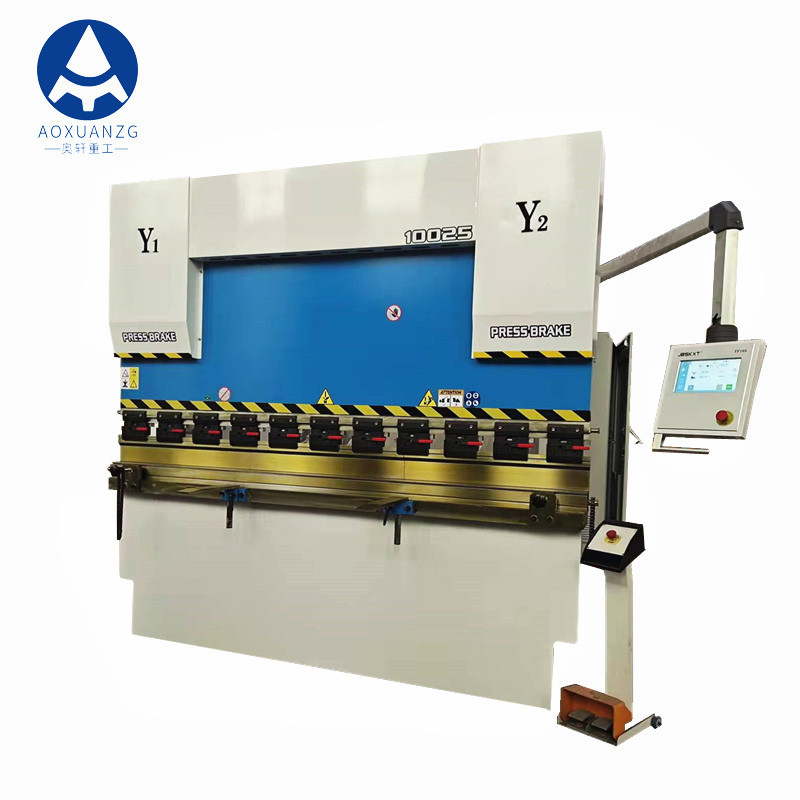

Product Details
Place of Origin: China
Brand Name: AOXUANZG
Certification: CE
Model Number: WC67Y-100T/2500
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: $10698-$12954/unit
Packaging Details: Standard export packing
Delivery Time: 20-30 days
Payment Terms: L/C, T/T, Western Union, D/P, D/A
Supply Ability: 500sets/Year
Pressure: |
1000KN |
Worktable Length: |
2500mm |
Max. Open Height: |
395mm |
Strokes: |
≥ 8 Times/min |
Main Motor: |
7.5kw |
Machine Weight: |
5.5t |
Pressure: |
1000KN |
Worktable Length: |
2500mm |
Max. Open Height: |
395mm |
Strokes: |
≥ 8 Times/min |
Main Motor: |
7.5kw |
Machine Weight: |
5.5t |
Main Features:
1. High bending precision,fast working speed, and efficient,operational safety,performance stably.
2. Good antiknock frame(welded-steel plate construction),whole frame is been tempering,reduce modification,using large-scale CNC milling machine,process in one time,insure high-precision.
3. Using international brand parts and cnc.
4. Visual operating system,easy operation,convenient,multi-functions and practical.
5. All parts are produced by cnc produce center,according to standard drawing.
6. High executive force,high standard and high professional machine assembled team.
7. Fashion outlook,delicate,and beautiful,machines are compact design,small floor space,easy operation.
8. Providing comprehensive bending program for all press brake,shearing machine user.
9. Replaceable worktable and the upper and lower mound,no welding,forging and precision grinding.
10. The similarity of images and shipping machine can reach 99.5%.13. The similarity of images and shipping machine can reach 99.5%.
11. Thickening the slider and the vertical plate, to ensure the stability of the machine tool and reduce the elasticity.
12. Rational layout of the oil pipeline design, to prevent the oil temperature rise quickly.
13. Deliver goods on time
High precision backguage
Germany Bosch Rexroth safety valve
Germany EMB Hose connector
Schneider Electric System
Details:
Technical Parameters:
| Model | Nominal pressure (KN) | Worktable Length (mm) | Columns Distance (mm) | Throat | Slider | Max | Main | Dimension |
| Depth | Stroke | Open | motor | L x W x H | ||||
| (mm) | (mm) | height | Power | (mm) | ||||
| (mm) | (KW) | |||||||
| WC67Y/K-30/1600 | 300 | 1600 | 1280 | 200 | 80 | 190 | 3 | 1700×900×1650 |
| WC67Y/K-30/2000 | 300 | 2000 | 1280 | 200 | 80 | 190 | 3 | 1700×900×1650 |
| WC67Y/K-40/2500 | 400 | 2500 | 1900 | 280 | 100 | 320 | 5.5 | 2600×1100×1900 |
| WC67Y/K-63/2500 | 630 | 2500 | 1900 | 350 | 170 | 380 | 5.5 | 3100×1450×2050 |
| WC67Y/K-80/3200 | 800 | 3200 | 2700 | 350 | 170 | 380 | 7.5 | 3500×1550×2100 |
| WC67Y/K-100/3200 | 1000 | 3200 | 2700 | 400 | 200 | 420 | 7.5 | 3500×1580×2400 |
| WC67Y/K-160/3200 | 1600 | 3200 | 2700 | 400 | 200 | 420 | 11 | 3500×1650×2550 |
| WC67Y/K-200/3200 | 2000 | 3200 | 2700 | 400 | 200 | 420 | 15 | 3500×1680×2550 |
| WC67Y/K-250/3200 | 2500 | 3200 | 2700 | 400 | 200 | 420 | 15 | 3500×1700×2600 |
| WC67Y/K-320/3200 | 3200 | 3200 | 2700 | 400 | 200 | 420 | 22 | 3500×1800×2730 |
| WC67Y/K-400/4000 | 4000 | 4000 | 3500 | 500 | 320 | 600 | 30 | 4300×2450×3500 |
| WC67Y/K-500/5000 | 5000 | 5000 | 3900 | 500 | 320 | 600 | 37 | 5400×2810×4300 |
| WC67Y/K-500/6000 | 5000 | 6000 | 4900 | 500 | 320 | 600 | 37 | 6500×2810×4300 |
| WC67Y/K-500/7000 | 5000 | 7000 | 4900 | 500 | 320 | 600 | 37 | 7500×2810×4900 |
| WC67Y/K-600/5000 | 6000 | 5000 | 3900 | 500 | 320 | 600 | 45 | 5500×2910×4900 |
| WC67Y/K-600/6000 | 6000 | 6000 | 4900 | 500 | 320 | 600 | 45 | 6500×2910×5100 |
| WC67Y/K-600/7000 | 6000 | 7000 | 5900 | 500 | 320 | 600 | 45 | 7500×2910×5200 |
| WC67Y/K-800/6000 | 8000 | 6000 | 4900 | 600 | 400 | 600 | 55 | 6500×2750 ×5300 |
| WC67Y/K-800/8000 | 8000 | 8000 | 6900 | 600 | 400 | 600 | 55 | 8500×2750×5900 |
| WC67Y/K-1000/6000 | 10000 | 6000 | 4900 | 600 | 400 | 600 | 2×37 | 6500×2800×5600 |
| WC67Y/K-1000/8000 | 10000 | 8000 | 6900 | 600 | 400 | 600 | 2×37 | 8500×2800×6100 |
| WC67Y/K-1000/10000 | 10000 | 10000 | 8000 | 600 | 400 | 600 | 2×37 | 10500×2800×5850 |
| WC67Y/K-1200/6000 | 12000 | 6000 | 4900 | 600 | 400 | 800 | 2×37 | 6500×3100×5850 |
| WC67Y/K-1200/8000 | 12000 | 8000 | 6900 | 600 | 400 | 800 | 2×37 | 8500×3100×7150 |
Certifications:
Our Service
Pre-sales.
* Project design, performance introduction, technical agreement, contract signing, packaging
* Inquiry and consulting support.
* Sample testing support.
In-sales.
* We will provide you with the latest progress in the product assembly, packaging and transportation.
After-sales.
* We will provide free accessories for the damage to non - human parts.
* Training how to install the machine, training how to use the machine with video and so on
* And our technical staff can go abroad to provide technical guidance.
