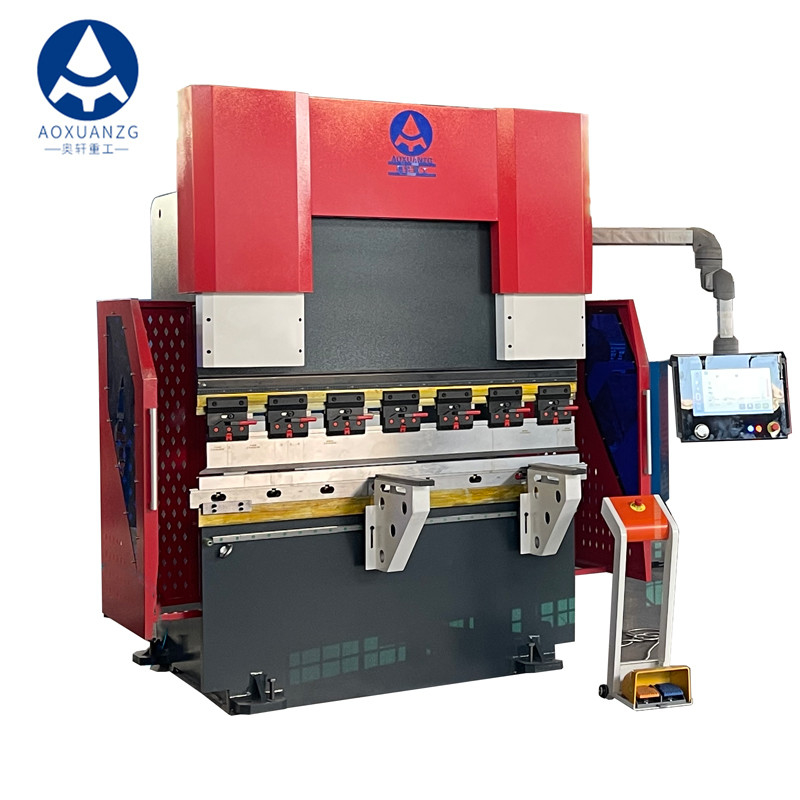

HK58T Controller Hydraulic CNC Press Brake 2D Programming Sheet Bending Machine

Product Description:

Hydraulic CNC Press Brake is a device used to bend sheet and plate material, most commonly sheet metal. It works by clamping the material between a matching punch and die. The press brake consists of a frame, a sliding bed, a ram, and a backstop. The ram is powered by a hydraulic system which applies a predetermined pressure to the workpiece. The backstop is adjustable to ensure that the material is bent to the correct angle. The hydraulic CNC Press Brake has a throat depth of 320mm, a maximum bending force of 1000kn, a maximum open height of 395mm, and a maximum bending thickness of 3.9mm carbon steel and 2mm stainless steel. The overall dimension of the Hydraulic CNC Press Brake is 3290x1740x2400mm. It is the perfect choice for those who require a press brake with superior accuracy, precision, and control.

Technical Parameters:

Introduction of HK58T Controller:

 15.6-inch full-color touch screen
Simple and easy to understand operation interface
1. Support angle programming and depth programming switching
2. Support mold library product library settings
3. The opening height can be freely set for each working step.
4. The shifting point position can be freely controlled
5. Standard Y1, Y2, R-axis multi-axis expansion
6. Support mechanical compensation workbench control
7. Support large arc automatic generation program
8. Supports top dead center, bottom dead center, foot release, delay and other step changing options, effectively improving processing efficiency
9. Support electromagnet simple bridge
10. Supports fully automatic pneumatic supporting bridge function
11. Support automatic bending, realize unmanned bending control, support up to 25 steps of automatic bending
12. Support valve group configuration functions, fast down, slow down, return, unloading action and valve action time control
13. 200 product libraries with 25 working steps, each product library name can be customized in Chinese and English, and the large arc supports 99 working steps.

Applications:

AOXUANZG's hydraulic CNC press brake WC67K-100T3200MM is a widely used tool for bending metal plates. It has a maximum open height of 395mm and a distance between housings of 2660mm. It is powered by hydraulic pressure and can bend metal plates with a maximum angle of 30-180. It has CE and ISO certifications and a minimum order quantity of 1. The price for this press brake is $36000 and the delivery time is 30 days. The payment terms require 50% deposit after the order is confirmed and the remaining 50% (payment after machine finished testing before shipping) must be paid by T/T. The packaging details include plastic film package first, then placed in container with steel wire fixed. This press brake is capable of supplying 500 sets per year.

Support and Services:

We offer technical support and service for our hydraulic CNC press brake products. Our experienced technicians are available to provide on-site installation and troubleshooting for any and all issues.

Our technicians have years of experience in the field and are knowledgeable in all aspects of the operation and maintenance of the hydraulic CNC press brake. They can provide on-site training, repairs, and preventive maintenance to ensure maximum efficiency and accuracy.

We also offer remote technical support for all our products. Our team of knowledgeable technicians is available to answer any questions you may have and can provide assistance in troubleshooting any issues you may be experiencing.

We believe in providing the best customer service in the industry and are always available to answer any questions and provide assistance in any way we can.

Packing and Shipping:

Packaging and Shipping for Hydraulic CNC Press Brake:
The Hydraulic CNC Press Brake will be carefully packed in a wooden crate with protective materials inside and secured with metal bands on the outside. It will then be placed on a suitable pallet for shipping, which will be securely strapped and sealed in a plastic wrap.
