Product Details
Place of Origin: China
Brand Name: AOXUANZG
Certification: CE,ISO
Model Number: WC67K-30T1600MM
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: $11900
Packaging Details: Plastic film package first, then placed in container with steel wire fixed.
Delivery Time: 30 DAYS
Payment Terms: 50% deposit after order confirmed , 50% (payment after machine finished testing before shipping by（T/T）.
Supply Ability: 500 sets/year
Type: |
CNC Press Brake |
Max. Bending Thickness: |
2.4mm Carbon Steel, 1.2mm Stainless Steel |
Throat Depth: |
200mm |
Max. Bending Angle: |
30-180 |
Distance Between Housings: |
1280mm |
Pressure: |
Hydraulic |
Max. Bending Length: |
1600mm |
Color: |
Customized |
Type: |
CNC Press Brake |
Max. Bending Thickness: |
2.4mm Carbon Steel, 1.2mm Stainless Steel |
Throat Depth: |
200mm |
Max. Bending Angle: |
30-180 |
Distance Between Housings: |
1280mm |
Pressure: |
Hydraulic |
Max. Bending Length: |
1600mm |
Color: |
Customized |

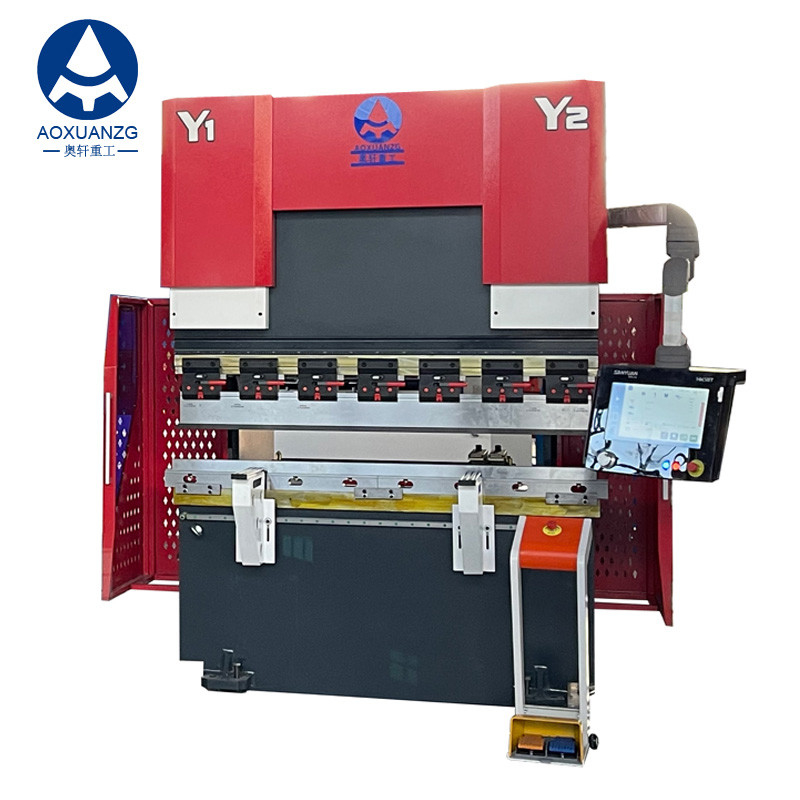

Hydraulic CNC Press Brake is one kind of press bending machine, which is designed for the precision press bending of metal sheet. It is a hydraulic press brake, which is equipped with a controller, HK58T, and suitable for bending sheet metal with a maximum thickness of 2.4mm Carbon Steel, and 1.2mm Stainless Steel. With a maximum bending length of 1600mm, this press brake provides superior performance and accuracy. Its overall dimension is 1900*1750*1900mm. The machine is ideal for various industrial applications, and it is a reliable press brakes for precise and efficient press bending work.
AOXUANZG's Hydraulic CNC Press Brake (Model Number: WC67K-30T1600MM) is the perfect choice for manufacturing industries that require precision pressing and bending. This press brake machine offers users the highest level of accuracy and reliability. It features an electric motor power of 3kw, maximum bending angle of 30-180, back gauge accuracy of ±0.01mm, throat depth of 200mm and pressure of hydraulic. With the advanced CNC technology, this press brake is able to provide a high level of automation, accuracy and efficiency. Its CE and ISO certifications ensure its excellent quality and safety.
This press brake machine is widely used in sheet metal processing, such as automotive, shipbuilding, aerospace and other industries. With this press brake, users can easily produce precision parts with high quality and accuracy. It is also suitable for various sheet metal forming and bending operations, such as pressing, bending, and cutting. Its low price of $10200 for a minimum order quantity of 1, and its capacity to produce 500 sets per year, make it a great choice for any industry.
Using AOXUANZG's Hydraulic CNC Press Brake is the perfect solution for manufacturing industries that need press bending machine, press brakes and CNC press brake. Its accuracy, reliability, CE and ISO certifications, and the capability to produce high quality parts make it the ideal choice for anyone looking for a cost-effective solution.
Brand Name: AOXUANZG
Model Number: WC67K-30T1600MM
Place of Origin: China
Certification: CE,ISO
Minimum Order Quantity: 1
Price: $10200
Packaging Details: Plastic film package first, then placed in container with steel wire fixed.
Delivery Time: 30 DAYS
Payment Terms: 50% deposit after order confirmed , 50% (payment after machine finished testing before shipping by(T/T).
Supply Ability: 500 sets/year
Throat depth: 200mm
Max. Bending Thickness: 2.4mm Carbon Steel, 1.2mm Stainless Steel
Overall Dimension: 1900*1750*1900mm
Type: CNC Press Brake
Distance between housings: 1280mm
We are the leading manufacturer and supplier of Press bending machine, Press Brake and Press Brake Machine.
| Model | Pressure | Worktable length | Distance between columns | Depth of throat | Stroke | Max height between worktable and ram | Main motor | Weight |
Dimension (LxWxH) |
| Units | kn | mm | mm | mm | mm | mm | kw | mm | mm |
| WC67Y/K-40/2500 | 400 | 2500 | 1925 | 220 | 80 | 300 | 4 | 3000 | 2650x1100x1950 |
| WC67Y/K-50/2500 | 500 | 2500 | 2015 | 220 | 100 | 340 | 4 | 3750 | 2650x1250x2100 |
| WC67Y/K-63/2500 | 630 | 2500 | 2015 | 250 | 100 | 340 | 5.5 | 4300 | 2650x1300x2200 |
| WC67Y/K-80/2500 | 800 | 2500 | 2010 | 250 | 120 | 380 | 5.5 | 5200 | 2560x1350x2250 |
| WC67Y/K-80/3200 | 800 | 3200 | 2510 | 250 | 120 | 380 | 5.5 | 6000 | 3260x1350x2280 |
| WC67Y/K-100/2500 | 1000 | 2500 | 2050 | 320 | 150 | 420 | 7.5 | 6700 | 2550x1360x2270 |
| WC67Y/K-100/3200 | 1000 | 3200 | 2550 | 320 | 150 | 420 | 7.5 | 7200 | 3260x1365x2520 |
| WC67Y/K-100/4000 | 1000 | 4000 | 3050 | 320 | 150 | 420 | 7.5 | 8500 | 4060x1365x2720 |
| WC67Y/K-125/3200 | 1250 | 3200 | 2550 | 320 | 150 | 420 | 7.5 | 7800 | 3260x1465x2600 |
| WC67Y/K-125/4000 | 1250 | 4000 | 3050 | 320 | 150 | 420 | 7.5 | 9000 | 4060x1460x2800 |
| WC67Y/K-160/3200 | 1600 | 3200 | 2590 | 320 | 200 | 475 | 11 | 10500 | 3260x1580x2775 |
| WC67Y/K-160/4000 | 1600 | 4000 | 3040 | 320 | 200 | 475 | 11 | 12500 | 4060x1580x2925 |
| WC67Y/K-160/6000 | 1600 | 6000 | 4800 | 320 | 200 | 480 | 11 | 19500 | 6060x1580x3480 |
| WC67Y/K-200/3200 | 2000 | 3200 | 2580 | 320 | 200 | 475 | 18.5 | 13200 | 3260x1650x2800 |
| WC67Y/K-250/4000 | 2500 | 4000 | 3130 | 400 | 250 | 530 | 18.5 | 19000 | 4060x1840x3150 |
| WC67Y/K-250/5000 | 2500 | 5000 | 3930 | 400 | 250 | 530 | 18.5 | 24000 | 5060x1840x3450 |
| WC67Y/K-300/3200 | 3000 | 3200 | 2530 | 400 | 250 | 580 | 18.5 | 18000 | 3300x2100x2980 |
| WC67Y/K-300/4000 | 3000 | 4000 | 3200 | 400 | 250 | 580 | 18.5 | 22000 | 4060x2040x3330 |
| WC67Y/K-400/4000 | 4000 | 4000 | 3180 | 400 | 320 | 630 | 30 | 30000 | 4060x2220x3630 |
| WC67Y/K-400/6000 | 4000 | 6000 | 4700 | 400 | 320 | 630 | 30 | 45000 | 60602x2203x980 |
| WC67Y/K-500/6000 | 5000 | 6000 | 4600 | 500 | 320 | 70 | 30 | 55000 | 6080x2760x4000 |
| WC67Y/K-800/6000 | 8000 | 6000 | 4600 | 500 | 400 | 900 | 37 | 72000 | 6100x3250x4300 |
Packaging and Shipping for Hydraulic CNC Press Brake:
