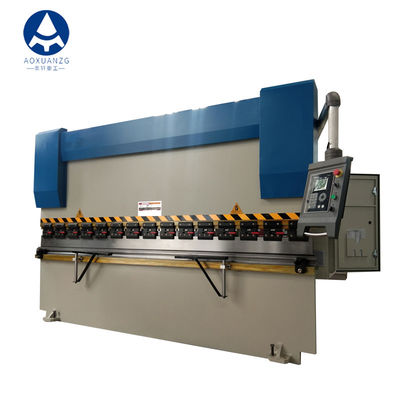

Aoxuan Delem DA41S Hydraulic Press Brake 1250KN CNC Sheet Metal Bending Machine

Product Details

Place of Origin: China

Brand Name: AOXUANZG

Certification: CE

Model Number: WC67Y-125T/3200

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: $13698-$14946/unit

Packaging Details: Standard export packing

Delivery Time: 20-30 days

Payment Terms: L/C, T/T, Western Union, D/P, D/A

Supply Ability: 500sets/Year

Get Best Price
Highlight:

Aoxuan Hydraulic Press Brakes

,

Hydraulic Press Brakes 1250KN

,

DA41S CNC Sheet Metal Bending Machine

Material / Metal Processed:
Metal Sheet
Control System:
DA41S Controller
Machine Type:
Hydraulic Press Brake
Nominal Pressure:
1250KN
Worktable Length:
3200mm
Distance Between Housings:
2510mm
Throat Depth:
320mm
RAM Stroke:
140mm
Max. Open Height:
395mm
Strokes:
≥8times/min
Main Motor:
7.5kw
Machine Size:
3450*1740*2450mm
Material / Metal Processed:
Metal Sheet
Control System:
DA41S Controller
Machine Type:
Hydraulic Press Brake
Nominal Pressure:
1250KN
Worktable Length:
3200mm
Distance Between Housings:
2510mm
Throat Depth:
320mm
RAM Stroke:
140mm
Max. Open Height:
395mm
Strokes:
≥8times/min
Main Motor:
7.5kw
Machine Size:
3450*1740*2450mm
Aoxuan Delem DA41S Hydraulic Press Brake 1250KN CNC Sheet Metal Bending Machine
Aoxuan Delem DA41S Hydraulic Press Brake CNC Sheet Metal Bending Machine

Press brake is a kind of machine specially in bending plate, mainly used in automotive manufacturing, kitchen appliance manufacturing,

electricity poles, lamp posts, ship-building, military industry, steel industry, mechanical manufacturing. Bending dies can be designed and changed according to customers' different needs.



Main Features:


1. Special numeric-control system is fitted with mainframe of the bending machine.
2. Multi-work-stop programming function is able to achieve an automatic operation and continues positing of multi-step procedures, as well as an automatic precision adjustment for positions of rear stopper and gliding block.
3. The machine is provided with bend counting function, for a real-time display of processing quantity and power-failure memory of positions od stopper and gliding block, as well prccedures and paremeters.

Aoxuan Delem DA41S Hydraulic Press Brake 1250KN CNC Sheet Metal Bending Machine 0
The standard cofiguration:

High precision backguage
Germany Bosch Rexroth safety valve
Germany EMB Hose connector
Schneider Electric System
Aoxuan Delem DA41S Hydraulic Press Brake 1250KN CNC Sheet Metal Bending Machine 1



Details:



Aoxuan Delem DA41S Hydraulic Press Brake 1250KN CNC Sheet Metal Bending Machine 2
Technical Parameters:
Aoxuan Delem DA41S Hydraulic Press Brake 1250KN CNC Sheet Metal Bending Machine 3

Model Nominal pressure (KN) Worktable Length (mm) Columns Distance (mm) Throat Slider Max Main Dimension
Depth Stroke Open motor L x W x H
(mm) (mm) height Power (mm)
    (mm) (KW)
WC67Y/K-30/1600 300 1600 1280 200 80 190 3 1700×900×1650
WC67Y/K-30/2000 300 2000 1280 200 80 190 3 1700×900×1650
WC67Y/K-40/2500 400 2500 1900 280 100 320 5.5 2600×1100×1900
WC67Y/K-63/2500 630 2500 1900 350 170 380 5.5 3100×1450×2050
WC67Y/K-80/3200 800 3200 2700 350 170 380 7.5 3500×1550×2100
WC67Y/K-100/3200 1000 3200 2700 400 200 420 7.5 3500×1580×2400
WC67Y/K-160/3200 1600 3200 2700 400 200 420 11 3500×1650×2550
WC67Y/K-200/3200 2000 3200 2700 400 200 420 15 3500×1680×2550
WC67Y/K-250/3200 2500 3200 2700 400 200 420 15 3500×1700×2600
WC67Y/K-320/3200 3200 3200 2700 400 200 420 22 3500×1800×2730
WC67Y/K-400/4000 4000 4000 3500 500 320 600 30 4300×2450×3500
WC67Y/K-500/5000 5000 5000 3900 500 320 600 37 5400×2810×4300
WC67Y/K-500/6000 5000 6000 4900 500 320 600 37 6500×2810×4300
WC67Y/K-500/7000 5000 7000 4900 500 320 600 37 7500×2810×4900
WC67Y/K-600/5000 6000 5000 3900 500 320 600 45 5500×2910×4900
WC67Y/K-600/6000 6000 6000 4900 500 320 600 45 6500×2910×5100
WC67Y/K-600/7000 6000 7000 5900 500 320 600 45 7500×2910×5200
WC67Y/K-800/6000 8000 6000 4900 600 400 600 55 6500×2750 ×5300
WC67Y/K-800/8000 8000 8000 6900 600 400 600 55 8500×2750×5900
WC67Y/K-1000/6000 10000 6000 4900 600 400 600 2×37 6500×2800×5600
WC67Y/K-1000/8000 10000 8000 6900 600 400 600 2×37 8500×2800×6100
WC67Y/K-1000/10000 10000 10000 8000 600 400 600 2×37 10500×2800×5850
WC67Y/K-1200/6000 12000 6000 4900 600 400 800 2×37 6500×3100×5850
WC67Y/K-1200/8000 12000 8000 6900 600 400 800 2×37 8500×3100×7150


Certifications:
Aoxuan Delem DA41S Hydraulic Press Brake 1250KN CNC Sheet Metal Bending Machine 4Aoxuan Delem DA41S Hydraulic Press Brake 1250KN CNC Sheet Metal Bending Machine 5

Packing Detail:
Each Hydraulic Press Brake with plastic film package first, then placed in a wooden case, wooden case with a foam filling.
We loaded the truck with heavy trucks for loading the cargo to the harbor terminal.At the dock we pack the goods in containers
and ship them abroad.
Aoxuan Delem DA41S Hydraulic Press Brake 1250KN CNC Sheet Metal Bending Machine 6

Our Service
Pre-sales.
* Project design, performance introduction, technical agreement, contract signing, packaging * Inquiry and consulting support.
* Sample testing support.
In-sales. * We will provide you with the latest progress in the product assembly, packaging and transportation.
After-sales.
* We will provide free accessories for the damage to non - human parts. * Training how to install the machine, training how
to use the machine with video and so on * And our technical staff can go abroad to provide technical guidance.




Customer & EXPO:
Aoxuan Delem DA41S Hydraulic Press Brake 1250KN CNC Sheet Metal Bending Machine 7Aoxuan Delem DA41S Hydraulic Press Brake 1250KN CNC Sheet Metal Bending Machine 8
FAQ:
1. Are you the manufacture?Can we visit your factory? We are manufacturer and we are located in Anhui,China.And we have our
own design team for products design. And welcome you visit our factory and check our machine qualtiy on spot,any question will
be solved on spot at first time.

2.What's your main product and what is your main foreign market? Our main products are press brake,shears machine,press,cut
ting machine,locking machine ,auto duct line and related products. Our main foreign market are Asia, North America, Europe, Afr
ica.

3. What are the advantages of your machines?And how can i believe the quality of your product? The main configuration is to im
port quality products, and Professional product quality inspection teamensure machine in top-quality, precision and life. For exam
ple,Germany Bosch-Rexroth Valve group,Germany Siemens Main Motor,Schneider Electrics system and so on. Once tested as q
ualified .our machine would be sent out.So The quality of our product is stable and reliable.

4. Can we be your agent? Yes,we are looking for Global agent we will help agent improve the market ,and supply all the service
like machine technical problem or other after-sales problem, meanwhile ,you can get big discount and commission.

5.Are you provide product metal parts and provide us technical guidance? Wearing parts,Disassembly tool(free) are what we cou
ld provide.And we can give you technical guidance.Our technical staff can go abroad to provide you with technical guidance.
