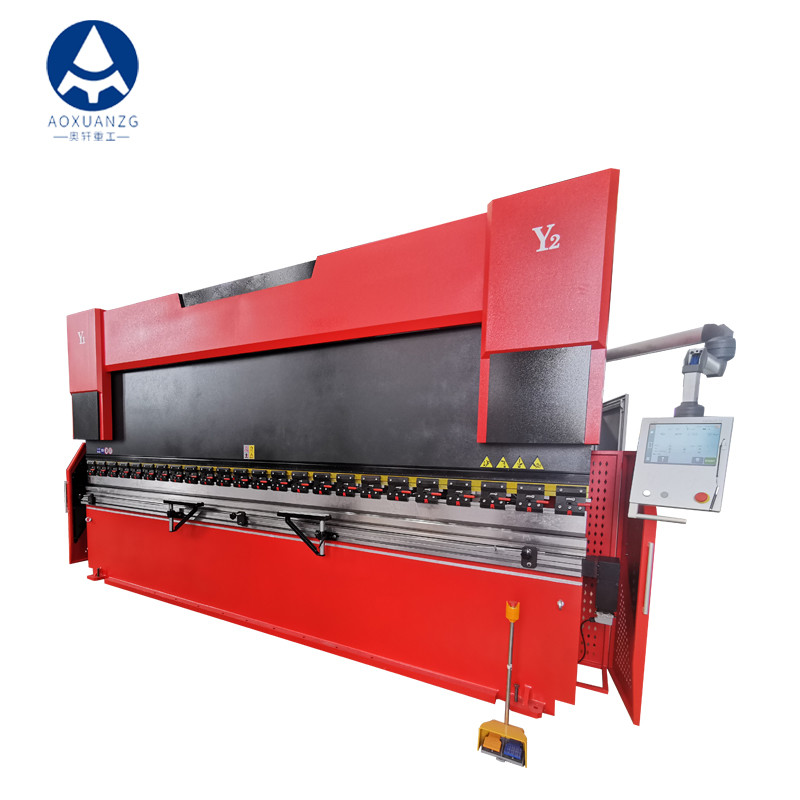

Place of Origin: | China |
---|---|
Brand Name: | AOXUANZG |
Certification: | CE |
Model Number: | WC67Y-125T/4000 |
Minimum Order Quantity: | 1 set |
Packaging Details: | Standard export packing |
Delivery Time: | 20-30 days |
Payment Terms: | L/C, T/T, Western Union, D/P, D/A |
Supply Ability: | 500sets/Year |
System: | Cybtouch 12 | Nominal Pressure: | 1250KN |
---|---|---|---|
Length: | 4000mm | Throat Depth: | 320mm |
RAM Stroke: | 140mm | Open Height: | 395mm |
Strokes: | ≥8times/min | Motor: | 7.5 Kw |
High Light: | Cybtouch 12 Hydraulic CNC Press Brake,7.5 kw Hydraulic CNC Press Brake,press brake bender 1250KN |
Technical Parameters:
Model | Nominal pressure (KN) | Worktable Length (mm) | Columns Distance (mm) | Throat | Slider | Max | Main | Dimension |
Depth | Stroke | Open | motor | L x W x H | ||||
(mm) | (mm) | height | Power | (mm) | ||||
(mm) | (KW) | |||||||
WC67Y/K-30/1600 | 300 | 1600 | 1280 | 200 | 80 | 190 | 3 | 1700×900×1650 |
WC67Y/K-30/2000 | 300 | 2000 | 1280 | 200 | 80 | 190 | 3 | 1700×900×1650 |
WC67Y/K-40/2500 | 400 | 2500 | 1900 | 280 | 100 | 320 | 5.5 | 2600×1100×1900 |
WC67Y/K-63/2500 | 630 | 2500 | 1900 | 350 | 170 | 380 | 5.5 | 3100×1450×2050 |
WC67Y/K-80/3200 | 800 | 3200 | 2700 | 350 | 170 | 380 | 7.5 | 3500×1550×2100 |
WC67Y/K-100/3200 | 1000 | 3200 | 2700 | 400 | 200 | 420 | 7.5 | 3500×1580×2400 |
WC67Y/K-160/3200 | 1600 | 3200 | 2700 | 400 | 200 | 420 | 11 | 3500×1650×2550 |
WC67Y/K-200/3200 | 2000 | 3200 | 2700 | 400 | 200 | 420 | 15 | 3500×1680×2550 |
WC67Y/K-250/3200 | 2500 | 3200 | 2700 | 400 | 200 | 420 | 15 | 3500×1700×2600 |
WC67Y/K-320/3200 | 3200 | 3200 | 2700 | 400 | 200 | 420 | 22 | 3500×1800×2730 |
WC67Y/K-400/4000 | 4000 | 4000 | 3500 | 500 | 320 | 600 | 30 | 4300×2450×3500 |
WC67Y/K-500/5000 | 5000 | 5000 | 3900 | 500 | 320 | 600 | 37 | 5400×2810×4300 |
WC67Y/K-500/6000 | 5000 | 6000 | 4900 | 500 | 320 | 600 | 37 | 6500×2810×4300 |
WC67Y/K-500/7000 | 5000 | 7000 | 4900 | 500 | 320 | 600 | 37 | 7500×2810×4900 |
WC67Y/K-600/5000 | 6000 | 5000 | 3900 | 500 | 320 | 600 | 45 | 5500×2910×4900 |
WC67Y/K-600/6000 | 6000 | 6000 | 4900 | 500 | 320 | 600 | 45 | 6500×2910×5100 |
WC67Y/K-600/7000 | 6000 | 7000 | 5900 | 500 | 320 | 600 | 45 | 7500×2910×5200 |
WC67Y/K-800/6000 | 8000 | 6000 | 4900 | 600 | 400 | 600 | 55 | 6500×2750 ×5300 |
WC67Y/K-800/8000 | 8000 | 8000 | 6900 | 600 | 400 | 600 | 55 | 8500×2750×5900 |
WC67Y/K-1000/6000 | 10000 | 6000 | 4900 | 600 | 400 | 600 | 2×37 | 6500×2800×5600 |
WC67Y/K-1000/8000 | 10000 | 8000 | 6900 | 600 | 400 | 600 | 2×37 | 8500×2800×6100 |
WC67Y/K-1000/10000 | 10000 | 10000 | 8000 | 600 | 400 | 600 | 2×37 | 10500×2800×5850 |
WC67Y/K-1200/6000 | 12000 | 6000 | 4900 | 600 | 400 | 800 | 2×37 | 6500×3100×5850 |
WC67Y/K-1200/8000 | 12000 | 8000 | 6900 | 600 | 400 | 800 | 2×37 | 8500×3100×7150 |
Main configuration list
|
||
1
|
NC Control system
|
E21 E300 DA41 DA53S DA56S DA66T DA69T TP10S
|
2
|
Electrical components
|
Schneider Electrical from French
|
3
|
Main Motor
|
Siemens from Germany Brand
|
4
|
BackGauge & RAM Drive
|
Inverter from Taiwan delta
|
5
|
Travel switch
|
Schneider Electrical from French
|
6
|
Foot switch
|
KACON from South Korea
|
7
|
Hydraulic System
|
Bosch-Rexroth form Germany
|
8
|
Hydraulic Pump
|
SUUNY or SAEMP form Taiwan
|
9
|
Sealing Element
|
PARKER from U.S.A Brand
|
10
|
Tubing connector
|
EMB form Germany Brand
|
11
|
Ball screw/ Polished rod
|
HIWIN from TaiWan Brand
|
Details:
Packing Detail:
1. Our wooden case is after fumigation treatment. Needn't timber inspection, saving shipping time.
2. All the spare parts of themachine were covered by the some soft materials mainly using pearl wool.
3. The outmost is wooden case with fixed formwork.
4. The bottom of the wooden case has firm iron jack, convenient to handing and transport.
For more information, please contact me (^o^)/~
