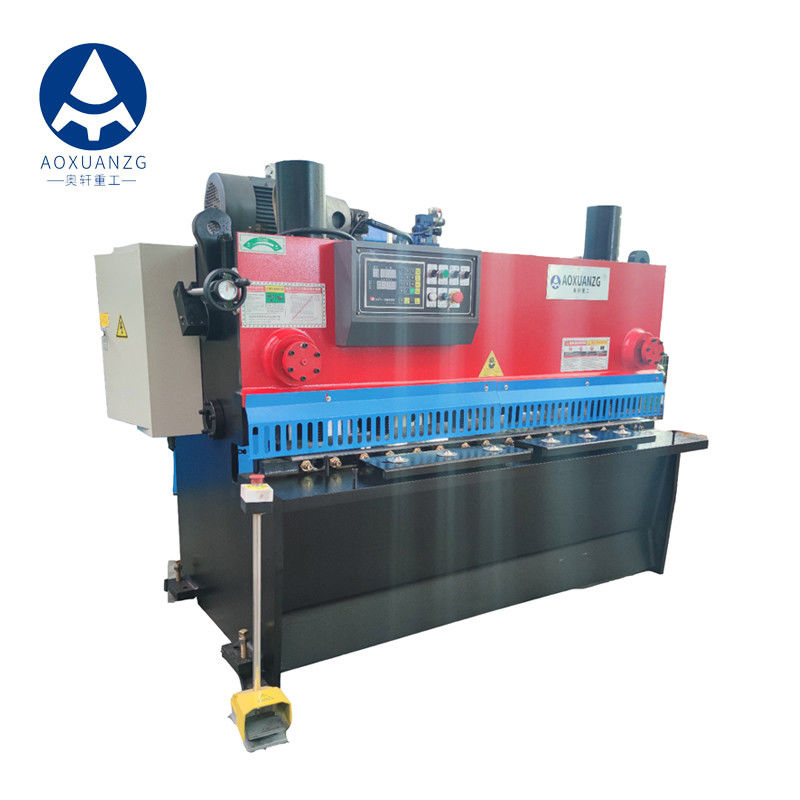

4*2000mm Hydraulic Guillotine Shearing Machine 13times/Min CNC Stainless Steel Guillotine

Product Details

Place of Origin: China

Brand Name: AOXUANZG

Certification: CE

Model Number: QC11K-4*2000

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Packaging Details: Standard export packing

Delivery Time: 20-30 days

Payment Terms: L/C, T/T, Western Union, D/P, D/A

Supply Ability: 500sets/Year

Get Best Price
Highlight:

Hydraulic Guillotine Shearing Machine 13times/min

,

4*2000mm Hydraulic Guillotine Shearing Machine

,

CNC Stainless Steel guillotine

Control System:
E21S Controller
Machine Type:
Hydraulic Guillotine Type
Cutting Thickness:
4mm Carbon Steel
Cutting Length:
2000mm
Cutting Angel:
1°30'
Metarial Strength:
≤450KN/CM
Stroke Times:
13times/min
Main Motor:
4.5 Kw
Control System:
E21S Controller
Machine Type:
Hydraulic Guillotine Type
Cutting Thickness:
4mm Carbon Steel
Cutting Length:
2000mm
Cutting Angel:
1°30'
Metarial Strength:
≤450KN/CM
Stroke Times:
13times/min
Main Motor:
4.5 Kw
4*2000mm Hydraulic Guillotine Shearing Machine 13times/Min CNC Stainless Steel Guillotine
High Performance Stainless Steel 4*2000mm CNC Hydraulic Guillotine Shearing Machine



Main functions and features

1. The second generation of shear.
2. Welded steel plate construction, heating to eliminate stress,with high strength and good rigidity.
3. Advanced integrated hydraulic system with and excellent reliabitity quality.
4. Rapidly,accurately and conveniently adjusting the blade clearance by motor
5. The adjustable rake angle can minimize plate deformation.
6. As the cutting beam has been designed in inner-inclined structure,

it is easy for plates to fall down and the accuracy of products can be also guaranteed.
7. Shearing in sections,shadow-line cutting.
8. Counter for the motorized back gauge.
9. Back support device (optional).


Technical Parameters:
4*2000mm Hydraulic Guillotine Shearing Machine 13times/Min CNC Stainless Steel Guillotine 0​

Model Thickness(mm) Cutting Length(mm) Cutting Angle(°) Material Strength (KN/CM) Stroke (times/min) Power(kw) Dimension(mm)
4×2500 4 2500 1°30’ ≤450 10 5.5 3040*1610*1620
4×3200 4 3200 1°30’ ≤450 10 5.5 3840*1610*1620
4×4000 4 4000 1°30’ ≤450 8 5.5 4600*1700*1700
4×6000 4 6000 1°30’ ≤450 5 7.5 6460*2100*3200
6×2500 6 2500 1°30’ ≤450 10 7.5 3040*1610*1620
6×3200 6 3200 1°30’ ≤450 9 7.5 3840*1610*1620
6×4000 6 4000 1°30’ ≤450 8 7.5 4620*1750*1700
6×5000 6 5000 1°30’ ≤450 6 7.5 5400*1750*1700
6×6000 6 6000 1°30’ ≤450 5 11 6480*2100*2300
8×2500 8 2500 1°30’ ≤450 10 7.5 3040*1700*1700
8×3200 8 3200 1°30’ ≤450 8 7.5 3860*1700*1700
8×4000 8 4000 1°30’ ≤450 8 7.5 4640*1700*1700
8×5000 8 5000 1°30’ ≤450 8 7.5 5400*2400*2000
8×6000 8 6000 1°30’ ≤450 8 11 6480*2100*2350
10×2500 10 2500 1°30’ ≤450 9 11 3040*1700*1700
10×3200 10 3200 1°30’ ≤450 9 11 3860*1700*1700
10×4000 10 4000 1°30’ ≤450 8 11 4650*2100*2000
10×6000 10 6000 ≤450 5 15 6500*2100*2300
12×2500 12 2500 ≤450 9 18.5 3140*2150*2000
12×3200 12 3200 ≤450 9 18.5 3880*2150*2000
12×4000 12 4000 ≤450 8 18.5 4680*2150*2000
12×5000 12 5000 ≤450 6 18.5 5900*2150*2000
12×6000 12 6000 ≤450 5 18.5 6900*2600*2700
12×8000 12 8000 ≤450 5 18.5 9000*3500*3500
16×2500 16 2500 2°30’ ≤450 9 18.5 3140*2150*2000
16×3200 16 3200 2°30’ ≤450 8 18.5 3880*2150*2000
16×4000 16 4000 2°30’ ≤450 8 18.5 4650*2150*2200
16×5000 16 5000 2°30’ ≤450 6 18.5 5900*2600*2700
16×6000 16 6000 2°30’ ≤450 5 22 6900*2700*2700
16×8000 16 8000 2°30’ ≤450 5 22 9000*3500*3500
20×2500 20 2500 ≤450 8 22 3440*2300*2500
20×3200 20 3200 ≤450 8 22 4150*2350*2700
20×4000 20 4000 ≤450 5 22 4850*2350*2700
20×6000 20 6000 ≤450 4 22 4850*2350*2700
25×2500 25 2500 ≤450 8 37 3200*2700*2900
25×3200 25 3200 ≤450 5 37 4200*2700*2900
30×2500 30 2500 ≤450 4 37 3300*2900*2900
30×3200 30 3200 3°30’ ≤450 4 40 4200*2900*2900
40×2500 40 2500 ≤450 3 75 3200*3300*3000
40×3200 40 3200 ≤450 3 90 4300*3300*3200





4*2000mm Hydraulic Guillotine Shearing Machine 13times/Min CNC Stainless Steel Guillotine 1



● Estun E21sNC control System
● Powered Back gaugeX-axis
● DELTA Inverter controlled back gauge
● HIWIN Ball screws & Polished rod with 0,05mm accuracy.
● Squaring Arm and Front Support Arms
● Germany Bosch-Rexroth Hydraulic
● Germany EMB Tubing connector
● Germany Siemens Main Motor
● Tele mecanique/Schneider Electrics
● Hydraulic &Electrical overload protection
● Cutting Line Illumination and wire for shadow line cutting
● Top blade with two cutting edges and bottom blade with four cutting edges.(6CrW2Si)



Details:



Estun E21s

1. Backgauge and block control
2. Control for general AC motors, frequency inverter
3. Intelligent positioning
4. Stock counter
5. Holding/decompression time setting
6. Program memory of up to 40 programs
7. Up to 25 steps per program
8. One side positioning
9. Retract function
10. One key backup/restore of parameters
11. mm/inch
12. Chinese /English



4*2000mm Hydraulic Guillotine Shearing Machine 13times/Min CNC Stainless Steel Guillotine 2



Workbench olling Steel Ball
Rlling see bal of workbench can reduce tncto prolet the wokple urfee dlicate desin is convenienfor ctting pelly materials by hand.



4*2000mm Hydraulic Guillotine Shearing Machine 13times/Min CNC Stainless Steel Guillotine 3



Blad clearance adjustment
Rapid adjustment mechanism for rearranging blade clearance,easy operation by hand,realizing stepless adjustment of blade clearance



4*2000mm Hydraulic Guillotine Shearing Machine 13times/Min CNC Stainless Steel Guillotine 4


Certifications:
4*2000mm Hydraulic Guillotine Shearing Machine 13times/Min CNC Stainless Steel Guillotine 54*2000mm Hydraulic Guillotine Shearing Machine 13times/Min CNC Stainless Steel Guillotine 6



For more information, please contact me (^o^)/~
