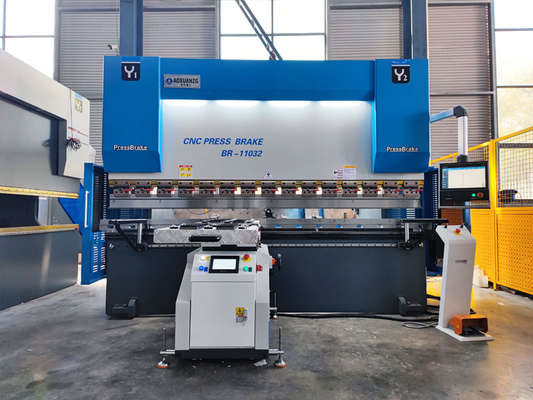

100T Hydraulic CNC Press Brake With Automatic Bracket

Product Details

Place of Origin: China

Brand Name: AOXUANZG

Certification: CE

Model Number: BR-10032

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: $67350-85520/unite

Packaging Details: Standard export packing

Delivery Time: 20-30 days

Payment Terms: L/C, T/T, Western Union, D/P, D/A

Supply Ability: 50sets/Year

Get Best Price
Highlight:

100T Hydraulic CNC Press Brake

,

Auto Bracket Hydraulic CNC Press Brake

,

Fully Automatic Hydraulic CNC Press Brake

Pressure:
100T
Maximum Bending Width:
3200MM
Controller:
Laimore EL15T
Characteristic:
Automatic Bracket
Pressure:
100T
Maximum Bending Width:
3200MM
Controller:
Laimore EL15T
Characteristic:
Automatic Bracket
100T Hydraulic CNC Press Brake With Automatic Bracket
CNC Full Automatic Hydraulic Press Brake Bending Folding Machine With Automatic Bracket

MAIN FEATURE:
1. Totally EU streamlined design. Monobloc by welding robots & apparatus and stress relief process by annealing treatment.
2. Hydraulic top-drive, steadiness and reliability, mechanical stop, steel torsion bar to maintain synchronization, high precision.
3. Adopt integrated hydraulic system, more reliable and easy for maintenance. and the hydraulic system from Bosch Rexroth, Germany.
4. Travel limit protection, full machine guarding with safety interlocker.
5. Mechanical synchronous mechanism and the complex compensation are designed so as to raise the workpieces precision.
6. The stroke and distance of the back gauge is adjusted by the motor.
7. Inch, single mode being designed for the machine and reversing and maintain time can be controlled by the time relays
8. Safe fence and the electric interlocker have been designed for the machine to ensure the operation safety.
9. Standard punches and dies. Front arm material support. Foot pedal with emergency stop.
10. Control system: Estun NC E21, CNC DELEM DA41, DA52, DA66T,Laimore EL15T.


Technical Parameters:



Model Norminal pressure (KN) Worktable Length (mm) Columns Distance (mm) Throat Depth (mm) Slider Stroke(mm) Max Open hight (mm) Main motor power(KW) Crowing Cylinders Control Axes X axis stroke(mm) X axis speed(mm/s) Dimension
LxWxH (mm)
WC67Y/K-63/2500 630 2500 1900 350 170 380 5.5 2 3+1 500 200 3100×1450×2050
WC67Y/K-80/3200 800 3200 2700 350 170 380 7.5 3 3+1 500 200 3500×1550×2100
WC67Y/K-100/3200 1000 3200 2700 400 200 420 7.5 3 3+1 500 200 3500×1580×2400
WC67Y/K-160/3200 1600 3200 2700 400 200 420 11 3 3+1 500 200 3500×1650×2550
WC67Y/K-200/3200 2000 3200 2700 400 200 420 15 3 3+1 500 200 3500×1680×2550
WC67Y/K-250/3200 2500 3200 2700 400 200 420 15 3 3+1 500 200 3500×1700×2600
WC67Y/K-320/3200 3200 3200 2700 400 200 420 22 3 3+1 500 200 3500×1800×2730
WC67Y/K-400/4000 4000 4000 3500 500 320 600 30 4 3+1 500 200 4300×2450×3500
WC67Y/K-500/5000 5000 5000 3900 500 320 600 37 / 3+1 800 200 5400×2810×4300
WC67Y/K-500/6000 5000 6000 4900 500 320 600 37 / 3+1 800 200 6500×2810×4300
WC67Y/K-500/7000 5000 7000 4900 500 320 600 37 / 3+1 800 200 7500×2810×4900
WC67Y/K-600/5000 6000 5000 3900 500 320 600 45 / 3+1 800 200 5500×2910×4900
WC67Y/K-600/6000 6000 6000 4900 500 320 600 45 / 3+1 800 200 6500×2910×5100
WC67Y/K-600/7000 6000 7000 5900 500 320 600 45 / 3+1 800 200 7500×2910×5200
WC67Y/K-800/6000 8000 6000 4900 600 400 600 55 / 3+1 800 200 6500×2750 ×5300
WC67Y/K-800/8000 8000 8000 6900 600 400 600 55 / 3+1 800 200 8500×2750×5900
WC67Y/K-1000/6000 10000 6000 4900 600 400 600 2×37 / 3+1 800 200 6500×2800×5600
WC67Y/K-1000/8000 10000 8000 6900 600 400 600 2×37 / 3+1 800 200 8500×2800×6100
WC67Y/K-1000/10000 10000 10000 8000 600 400 600 2×37 / 3+1 800 200 10500×2800×5850
WC67Y/K-1200/6000 12000 6000 4900 600 400 800 2×37 / 3+1 1000 200 6500×3100×5850
WC67Y/K-1200/8000 12000 8000 6900 600 400 800 2×37 / 3+1 1000 200 8500×3100×7150




100T Hydraulic CNC Press Brake With Automatic Bracket 0



Details:



Main Configuration
Laimore EL15T CNC Controller
Adopting HIWIN ball screw and linear guide rail, accuracy 0.01mm
Front supporter bracket
Germany Bosch Rexroth hydraulic valve block
Germany EMB oil tube connector
Germany Siemens main motor
France Schneider electrics
Hydraulic & electrical overload protection

Automatic Mechanical compensation
Upper and lower dies(86°, R0.6mm, material: 42CrMo)



Safety Equipment:
Safety Standards(2006/42/EC)
1. EN 12622:2009+a1:2003
2. EN ISO 12100:20110
3. EN 60204-1:2006+A1:2009



Kacon pedal switch
South Korea KACON pedal switch, improving the service life and operational sensitivity

100T Hydraulic CNC Press Brake With Automatic Bracket 1

Main servo motor
Power saving

100T Hydraulic CNC Press Brake With Automatic Bracket 2



Automatic Bracket

Fully automatic, more high-end, save time and labor!



100T Hydraulic CNC Press Brake With Automatic Bracket 3



Ball Screw & Guide LinearBall
Adopt the HIWIN brand from Taiwan Ball Screw and guide linear , promise the high precision and speed when workingAdopt the HIWIN brand from Taiwan Ball Screw and guide linear , promise the high precision and speed when working

100T Hydraulic CNC Press Brake With Automatic Bracket 4



For more information, please contact me (^o^)/~
