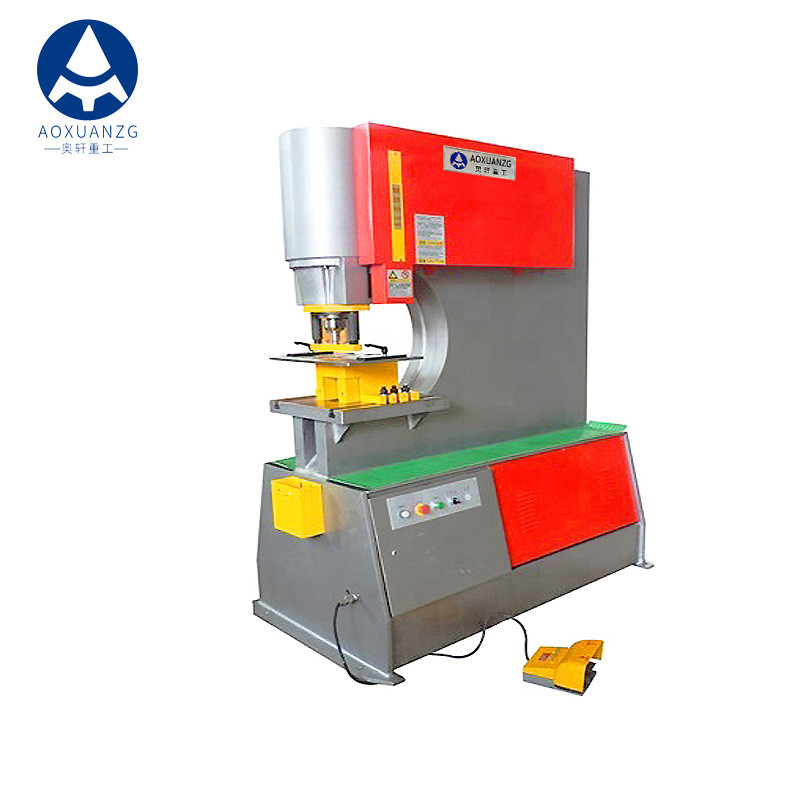

Single Head Hydraulic Punching Machine Puncher Hole 40mm Carbon Steel
1 set
MOQ
$18500-$19800/unit
Price
Single Head Hydraulic Punching Machine Puncher Hole 40mm Carbon Steel
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: AOXUANZG
Certification: CE
Model Number: 16Y-315T
High Light:

Puncher Hole Hydraulic Punching Machine

,

Single Head Hydraulic Punching Machine

,

Carbon Steel Hydraulic Ironworker Machine

Payment & Shipping Terms
Packaging Details: Standard export packing
Delivery Time: 20-30 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 500sets/Year
Specifications
Force: 315T
Max. Cutting Plate Thickness: 40mm
Main Power: 30kw
Function: 1 Head
Size: 3200*1440*2500mm
Stoke: 100mm
Depth Of Throat: 600mm
Max.punching Diameter: 45mm
Product Description

40mm Carbon Steel 1 Single Head Hydraulic Punching Machine Puncher Hole



Technical Parameters:
Model Q35Y-16 Q35Y-20 Q35Y-25 Q35Y-30 Q35Y-40 Q35Y-60
Puching pressure(T) 60T 100T 120T 160T 250T 315T
Max cutting thickness of steel plates(mm) 16 20 25 30 40 60
Material strength (N/mm²) ≤450 ≤450 ≤450 ≤450 ≤450 ≤450
Angel of shear (°)
Flat bar shearing (T×W)(mm) 16*250 8*400 20*330 10*480 25*330 16*600 30*335 20*600 40*330 20*700 508300 30*750
Max length of slinder strock(mm) 80 80 80 80 100 100
Trips frequency(times/min) 11~20 12~20 8~18 6~16 6~16 6~12
Depth of throat (mm) 300 355 400 600 600 600
Punch depth(mm) 16 20 25 28 35 40
Max.punching diameter(㎜) 28 33 35 38 40 45
Motor Power(KW) 5.5 7.5 11 11 15 30
Dimensions(L× W ×H)(mm) 1780*920*1780 1952*920*1950 2355*1000*2150 2840*1200*2330 2940*1200*2330 3200*1440*2500



Single Head Hydraulic Punching Machine Puncher Hole 40mm Carbon Steel 0



Details:



Punching Station
The large punch bed area has a removable front block and is designed to give a very wide range of punching applications. A punch table with rules and guides for repetition work are fitted as the standard machine





Single Head Hydraulic Punching Machine Puncher Hole 40mm Carbon Steel 1Single Head Hydraulic Punching Machine Puncher Hole 40mm Carbon Steel 2

Each head can be customized for different pressure, we can be customized for 1 head,3 head punching machine, suitable for different pressure, but only need punching work.
Single Head Hydraulic Punching Machine Puncher Hole 40mm Carbon Steel 3

Mould:
Punching die:
According to the needs of customers, customized different sizes of die, including, round, square, oval and so on. The customer only needs to provide the graphics and dimensions. This machine standard 15 sets of circular mold (free).

Single Head Hydraulic Punching Machine Puncher Hole 40mm Carbon Steel 4

Optional:
Also can make special shape stamping ,90 angle bending sheet metal , V-notch shear precess,ect.



Packing Detail:

☂ Each ironworker with plastic film package first, then placed in a wooden case, wooden case with a foam filling.
✈ We loaded the truck with heavy trucks for loading the cargo to the harbor terminal.At the dock we pack the goods in containers and ship them abroad.



Delivery Detail :
☀ Shipped in 25 days after payment.


Single Head Hydraulic Punching Machine Puncher Hole 40mm Carbon Steel 5

FAQ:

1. Are you the manufacture?Can we visit your factory?

We are manufacturer and we are located in Anhui,China.And we have our own design team for products design.

And welcome you visit our factory and check our machine qualtiy on spot,any question will be solved on spot at first time.



2.What's your main product and what is your main foreign market?
Our main products are press brake,shears machine,press,cutting machine,locking machine ,auto duct line and related products.

Our main foreign market are Asia, North America, Europe, Africa.

3. what are the advantages of your machines?And how can i believe the quality of your product?

The main configuration is to import quality products, and Professional product quality inspection team ensure machine in top-quality, precision and life.

For example,Germany Bosch-Rexroth Valve group,Germany Siemens Main Motor,Schneider Electrics system and so on.

Once tested as qualified .our machine would be sent out.So The quality of our product is stable and reliable.

4. And are you able to update the production process Information in time after placing our order?
After confirming your order ,we would keep you updated of production details of emails and photos.

5. Can we be your agent?
Yes,we are looking for Global agent we will help agent improve the market ,and supply all the service like machine technical problem or other after-sales problem, meanwhile ,you can get big discount and commission.

6. Payment terms?
T/T, L/C, Western Union, Paypal, Alibaba Secure Payment ect.


7,Are you provide product metal parts and provide us technical guidance?
Wearing parts,Disassembly tool(free) are what we could provide.And we can give you technical guidance.Our technical staff can go abroad to provide you with technical guidance.



8. How long is your warranty?

13 months free warranty, life-long maintenance.

9.Do you accept customer Logo and customized ?
we accept kinds of customized ,including logo and machine .

For more information, please contact me (^o^)/~



Single Head Hydraulic Punching Machine Puncher Hole 40mm Carbon Steel 6
