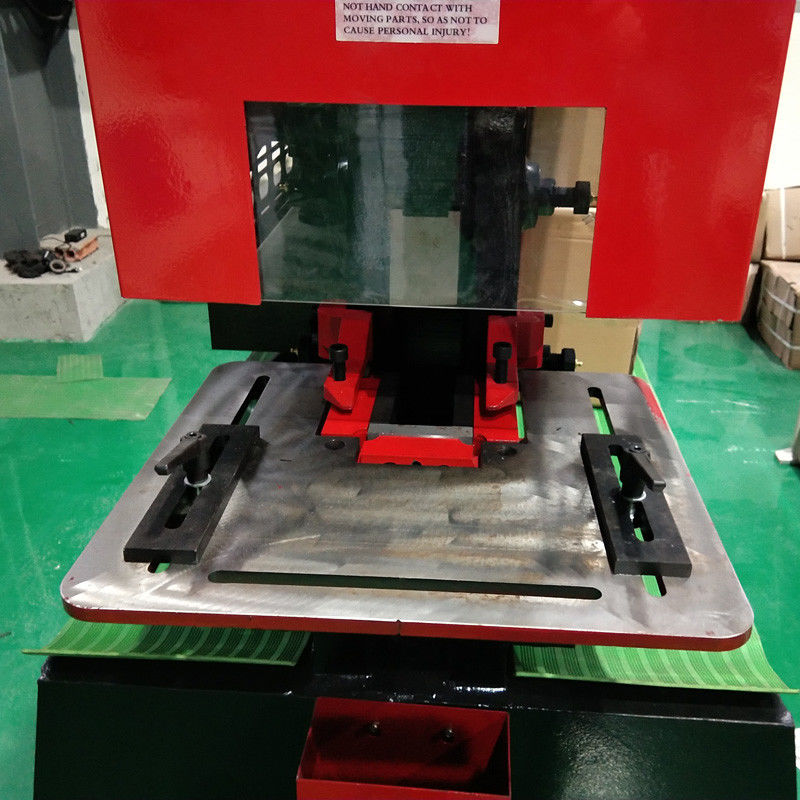

60T Double Head Hydraulic Punching Nothing Hole Bending Steel Plate Shearing Machine
Q35Y series hydraulic ironworker adopt hydraulic driving system. Ironworker can cut punch all kinds of holes. Various metal plates, square bar, angle steel, round iron, flat bars, profiled bars, channel steel and joist steel can be cutted, punched and notched on the machines.
* A set of hole punching die
* A set of angle steel blade
* A set of channel blade
* A set of shearing plate blade
* A set of notching blade
Hydraulic Multi-Purpose Ironworker Machine
I. Structure and performance introduction:
This series of products are ideal equipment for cutting all kinds of angle steel, I-beam, U-shape steel, right angle or 45 degree angle steel. Multi-workstations make it possible to finish series operations simultaneously on one machine, such as punching, shearing and notching, Dual-piston-type combined punching and shearing machine allows two-man operation at the same time (stamping +another work station), German Rexroth’s integrated hydraulic valve block ensures the stability of the machine, Through Thermal Effect of annealing processing, the entire rack is able to keep its shape forever, without deformation. The introduction of imported brand accessories ensures the parts’ service life and use precision.
* Punching: effective punching can be achieved with the machine, and stamping die is easy to be replaced.
* Bar cutting: you can quickly cut the round bar and square steel, if you want to cut U-shaped, I-beam or T-profile section steel only by exchanging the cutting blade and the operation procedure is very simple.
* Angle cutting: you can cut several 90 ° and 45 ° angles with the help of special dies.
* Metal Sheet Bending: it is very easy to fulfill the daily metal sheet bending work by making the bending moulds.
* Notching: The machine is equipped with a large-shaped slotting blade head, which can meet your general use, as to, special shaping blade head can be customized.
II. Main functions:
* 2 independent hydraulic piston rods and foot-pedal allows two people operating at the same time.
* More efficient stroke-control functions of piston rod.
* Central lubricating system
* Motor-driven rear stopper
* Lighting devices for work
* 5 independent work-positions: punch pin and die (standard punching dies),cutting blade group for round and square steel, shearing blades for steel plate, slotting and angle-cutting
|Max cutting thickness of steel plates(mm)||16||20||25||30||40||60|
|Material strength (N/mm²)||≤450||≤450||≤450||≤450||≤450||≤450|
|Angel of shear (°)||7°||8°||8°||8°||8°||8°|
|Flat bar shearing (T×W)(mm)||16*250 8*400||20*330 10*480||25*330 16*600||30*335 20*600||40*330 20*700||508300 30*750|
|Max length of slinder strock(mm)||80||80||80||80||100||100|
|Depth of throat (mm)||300||355||400||600||600||600|
|Dimensions(L× W ×H)(mm)||1780*920*1780||1952*920*1950||2355*1000*2150||2840*1200*2330||2940*1200*2330||3200*1440*2500|
Full range of universal punches and dies are available. Unique style allows for large angle iron punching and large channel punching.
Large viewing window on stripper swing away design for ease of operation. Large 2 piece gauging table with rulers and stop as standard fittings. Quick change coupling nut and sleeve for rapid replacement of change.
Each head can be customized for different pressure, we can be customized for 1 head,3 head punching machine, suitable for different pressure, but only need punching work.
