Center Control System Intelligent Bending Press Brake Full Automatic

Center Control System Intelligent Bending Press Brake Full Automatic

Intelligent Bending Press Brake

Full Automatic Bending Press Brake

Center Control System Bending Press Brake

Place of Origin:


Brand Name:




Model Number:


Contact Us

Request A Quote
Product Details
Machine Type:
Cnc Machine
After-sales Service Provided:
Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support,Free Spare Parts,Field Maintenance And Repair Service
Payment & Shipping Terms
Minimum Order Quantity
1 set
Packaging Details
Standard export packing
Delivery Time
20-30 working days
Payment Terms
L/C, T/T, Western Union, MoneyGram
Supply Ability
500 sets per year
Product Description

Full Automatic Intelligent Bending Center Control System Press Brake For Decoration File cabinet


Our panel bender bending center adopts a full servo system. Unlike traditional bending machines, the bending machine mold needs to be pressed down against the fixed part of the bending machine, but the bending work is completed by the blade. During the bending process, the plate The material holder fixes the plate. The blade can be bent up or down in different shapes. First, one side is bent outward, and then it is automatically bent inward. These different actions are controlled by the servo electric drive device,which can ensure the highest positioning accuracy in the bending sequence and bring the best bending effect.

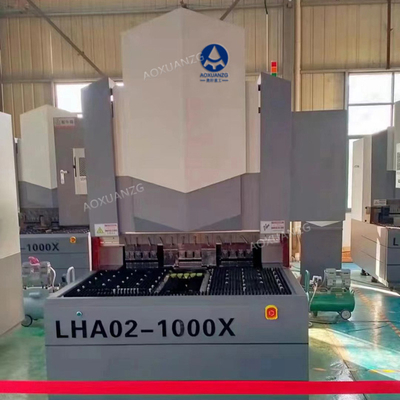

Center Control System Intelligent Bending Press Brake Full Automatic 0


Technical specifications 1000x 1400x 2000x 2500x 2500PC Unite
Maximum bending speed 0.2 s/times
Maximum bending width 1000 1400 2000 2500 2500 mm
Bending height 170 mm
The rated voltage 380 V
Total motor power 11 15 22 25 77 kw
Average power 1.01 1.5 2.2 2.5 2.8 kw
The noise sound About 50 db
Overall dimensions 285 X 150 X 280 365 X 190 X 290 420 X 265 X 330 480 X 295 X 310 510 x 300 x 340 cm
The total quality About 7 T About 10 T About 15 T About 18 T About 19 T T
Maximum bending thickness(Thicker plate can be customized) UTS 515N/mm2 201 Stainless steel 0.8mm 1 mm
UTS 515N/mm2 304 Stainless steel 1.0mm 1.2 mm
UTS 410N/mm2 Cold plate 1.2mm 2 mm
UTS 265N/mm2 Aluminum plate 1.6mm 2.5
Minimum material thickness 0.35 mm
Minimum size of four sides forming 140X210 140X210 220X290 220X290 140x 190 mm
Minimum size of 2 sides forming 140
Maximum bending size 1000X1000 1400X1400 2000X2000 2500X2500 2500x 1250 mm
Number of shaft Standard 9 axis concurrent linkage 15 axis


Center Control System Intelligent Bending Press Brake Full Automatic 1

High grade casting
Equipment core framework using high grade QT500-7 and HT250 castings, and must be measured by a testing instrument. After precise finite element force analysis, the frame adopts the most stable triangular interconnection design, which greatly guarantees the stability under high tonnage impact force.


High welding standard
No matter big and small, in the whole welding process adopts carbon dioxide protection welding. Every welding place ues full welding technology to ensure the welding workpiece is strong and beautiful.

Thoroughly eliminate stress
Both casting and welding support mesa, adopt high precision temperature control furnace,according to the material of the corresponding temperature curve to make multiple tempering, annealing and other heat treatment process, then enough long full frequency vibration aging treatment, completely release the internal stress of workpiece,ensure that used for a long time not to be out of shape.

Precision machining
Different fixtures are designed for different workpieces, and the high-precision multi-axis machining center is used to finish the workpieces, which ensures the consistency of the precision before and after clamping.

Strict testing
Using high-precision micrometer U meter, with marble platform and marble square feet with tens of millions of years of aging,accurate measurement for each workpiece, control the processing quality of each workpiece strictly and check on strictly, to ensure that the assembly precision of the whole machine meets the standard of high-precision machine tools.

Our Service
* Project design, performance introduction, technical agreement, contract signing, packaging * Inquiry and consulting support.
* Sample testing support.
In-sales. * We will provide you with the latest progress in the product assembly, packaging and transportation.
* We will provide free accessories for the damage to non - human parts. * Training how to install the machine, training how
to use the machine with video and so on * And our technical staff can go abroad to provide technical guidance.

Our Company:

Center Control System Intelligent Bending Press Brake Full Automatic 2

1. Are you the manufacture?Can we visit your factory? We are manufacturer and we are located in Anhui,China.And we have our
own design team for products design. And welcome you visit our factory and check our machine qualtiy on spot,any question will
be solved on spot at first time.

2. And are you able to update the production process Information in time after placing our order? After confirming your order ,we
would keep you updated of production details of emails and photos.

3. Can we be your agent? Yes,we are looking for Global agent we will help agent improve the market ,and supply all the service
like machine technical problem or other after-sales problem, meanwhile ,you can get big discount and commission.

4.Are you provide product metal parts and provide us technical guidance? Wearing parts,Disassembly tool(free) are what we cou
ld provide.And we can give you technical guidance.Our technical staff can go abroad to provide you with technical guidance.

5. How long is your warranty? 13 months free warranty, life-long maintenance. 9.Do you accept customer Logo and customized ?
we accept kinds of customized ,including logo and machine .
