Anhui Aoxuan Heavy Industry Machine Co., Ltd.
"Quality First! Customer First! Honesty First!"
Aoxuan CNC not only the manufacturer of Press Brake ,Shearing Machine, Laser Cutting Machine,Punching Machine, but also provide sheet metal automation solutions!
| Place of Origin: | China |
|---|---|
| Brand Name: | Aoxuanzg |
| Certification: | CE,ISO |
| Model Number: | QC12Y |
| Minimum Order Quantity: | 1 set |
| Price: | $9000-$12000/unit |
| Packaging Details: | Standard export packing |
| Delivery Time: | 20-30 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 500 sets per year |
| Condition: | New | Warranty: | 24 Months |
|---|---|---|---|
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support,Free Spare Parts,Field Maintenance And Repair Service | Voltage: | 380V 220V Optional |
| Weight: | 9500kg | Name: | Hydraulic Guillotine Shear Machine |
| High Light: | Carbon Steel Hydraulic Swing Shearing Machine,Customized Hydraulic Shearing Machine,Carbon Steel Hydraulic Shearing Machine |
||

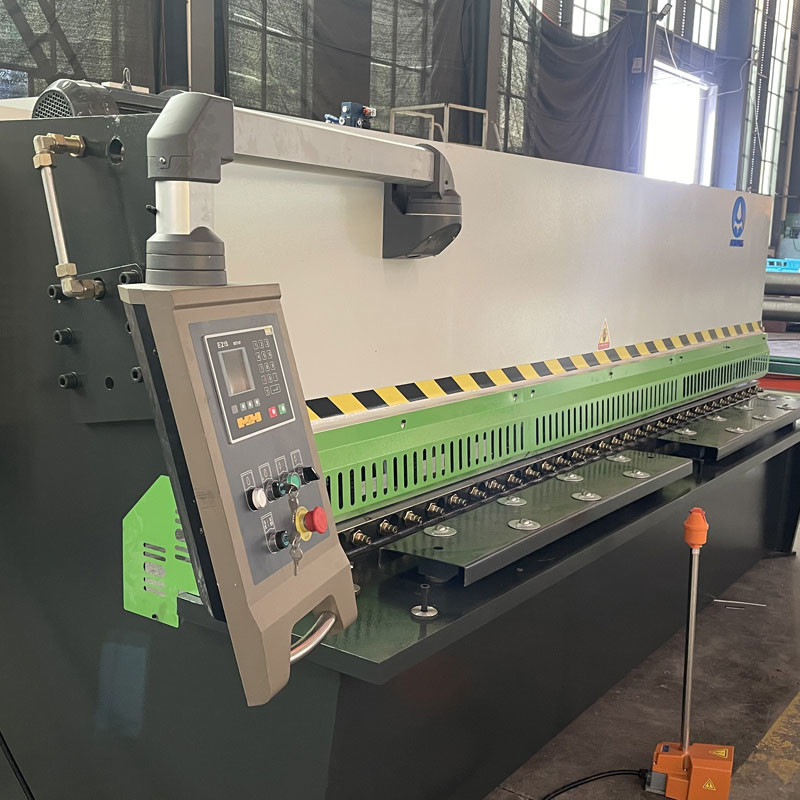

6*3200mm Carbon Steel Customized Color Hydraulic Shearing Cutter Machine WIth E21s
Product Features:
1. High-definition LCD screen, with Chinese and English language options, one page displays programming parameters, which is more convenient and efficient when writing programs.
2. Back gauge: intelligent positioning, manual adjustment can also be performed as needed, removing the mechanical hand-crank positioning device.
3. Shearing stroke: Built-in shearing time relay, easy operation and cost saving.
4. Shearing angle: Built-in shearing angle adjustment function, eliminating the need for angle indicators and buttons.
5. Knife edge gap: encoder feedback, timely display of knife edge gap size, simple and convenient operation.
6. It has the function of one-key backup and recovery of parameters, which can restore parameters at any time as needed, reducing maintenance costs.
7. All the buttons on the panel are micro switches, which have been strictly tested by EMC, high and low temperature, vibration, etc. to ensure the stability and service life of the product.
8. Passed CE certification to meet the needs of overseas markets.
Technical Parameters:
| Model |
Thickness (mm) |
Cutting Length (mm) |
Cutting Angle (°) |
Material Strength (KN/CM) |
Stroke (times/min) |
Power (kw) |
Dimension (mm) |
| 4×2500 | 4 | 2500 | 1°30’ | ≤450 | 10 | 5.5 | 3040*1610*1620 |
| 4×3200 | 4 | 3200 | 1°30’ | ≤450 | 10 | 5.5 | 3840*1610*1620 |
| 4×4000 | 4 | 4000 | 1°30’ | ≤450 | 8 | 5.5 | 4600*1700*1700 |
| 4×6000 | 4 | 6000 | 1°30’ | ≤450 | 5 | 7.5 | 6460*2100*3200 |
| 6×2500 | 6 | 2500 | 1°30’ | ≤450 | 10 | 7.5 | 3040*1610*1620 |
| 6×3200 | 6 | 3200 | 1°30’ | ≤450 | 9 | 7.5 | 3840*1610*1620 |
| 6×4000 | 6 | 4000 | 1°30’ | ≤450 | 8 | 7.5 | 4620*1750*1700 |
| 6×5000 | 6 | 5000 | 1°30’ | ≤450 | 6 | 7.5 | 5400*1750*1700 |
| 6×6000 | 6 | 6000 | 1°30’ | ≤450 | 5 | 11 | 6480*2100*2300 |
| 8×2500 | 8 | 2500 | 1°30’ | ≤450 | 10 | 7.5 | 3040*1700*1700 |
| 8×3200 | 8 | 3200 | 1°30’ | ≤450 | 8 | 7.5 | 3860*1700*1700 |
| 8×4000 | 8 | 4000 | 1°30’ | ≤450 | 8 | 7.5 | 4640*1700*1700 |
| 8×5000 | 8 | 5000 | 1°30’ | ≤450 | 8 | 7.5 | 5400*2400*2000 |
| 8×6000 | 8 | 6000 | 1°30’ | ≤450 | 8 | 11 | 6480*2100*2350 |
| 10×2500 | 10 | 2500 | 1°30’ | ≤450 | 9 | 11 | 3040*1700*1700 |
| 10×3200 | 10 | 3200 | 1°30’ | ≤450 | 9 | 11 | 3860*1700*1700 |
| 10×4000 | 10 | 4000 | 1°30’ | ≤450 | 8 | 11 | 4650*2100*2000 |
| 10×6000 | 10 | 6000 | 2° | ≤450 | 5 | 15 | 6500*2100*2300 |
| 12×2500 | 12 | 2500 | 2° | ≤450 | 9 | 18.5 | 3140*2150*2000 |
| 12×3200 | 12 | 3200 | 2° | ≤450 | 9 | 18.5 | 3880*2150*2000 |
| 12×4000 | 12 | 4000 | 2° | ≤450 | 8 | 18.5 | 4680*2150*2000 |
| 12×5000 | 12 | 5000 | 2° | ≤450 | 6 | 18.5 | 5900*2150*2000 |
| 12×6000 | 12 | 6000 | 2° | ≤450 | 5 | 18.5 | 6900*2600*2700 |
| 12×8000 | 12 | 8000 | 2° | ≤450 | 5 | 18.5 | 9000*3500*3500 |
| 16×2500 | 16 | 2500 | 2°30’ | ≤450 | 9 | 18.5 | 3140*2150*2000 |
| 16×3200 | 16 | 3200 | 2°30’ | ≤450 | 8 | 18.5 | 3880*2150*2000 |
| 16×4000 | 16 | 4000 | 2°30’ | ≤450 | 8 | 18.5 | 4650*2150*2200 |
| 16×5000 | 16 | 5000 | 2°30’ | ≤450 | 6 | 18.5 | 5900*2600*2700 |
| 16×6000 | 16 | 6000 | 2°30’ | ≤450 | 5 | 22 | 6900*2700*2700 |
| 16×8000 | 16 | 8000 | 2°30’ | ≤450 | 5 | 22 | 9000*3500*3500 |
| 20×2500 | 20 | 2500 | 3° | ≤450 | 8 | 22 | 3440*2300*2500 |
| 20×3200 | 20 | 3200 | 3° | ≤450 | 8 | 22 | 4150*2350*2700 |
| 20×4000 | 20 | 4000 | 3° | ≤450 | 5 | 22 | 4850*2350*2700 |
| 20×6000 | 20 | 6000 | 3° | ≤450 | 4 | 22 | 4850*2350*2700 |
| 25×2500 | 25 | 2500 | 3° | ≤450 | 8 | 37 | 3200*2700*2900 |
| 25×3200 | 25 | 3200 | 3° | ≤450 | 5 | 37 | 4200*2700*2900 |
| 30×2500 | 30 | 2500 | 3° | ≤450 | 4 | 37 | 3300*2900*2900 |
| 30×3200 | 30 | 3200 | 3°30’ | ≤450 | 4 | 40 | 4200*2900*2900 |
| 40×2500 | 40 | 2500 | 4° | ≤450 | 3 | 75 | 3200*3300*3000 |
| 40×3200 | 40 | 3200 | 4° | ≤450 | 3 | 90 | 4300*3300*3200 |
We accept kinds of customized and logo of all of our products for customers .
If you interested and know more related products, please contact with me ~
More surprises waiting for you ~
