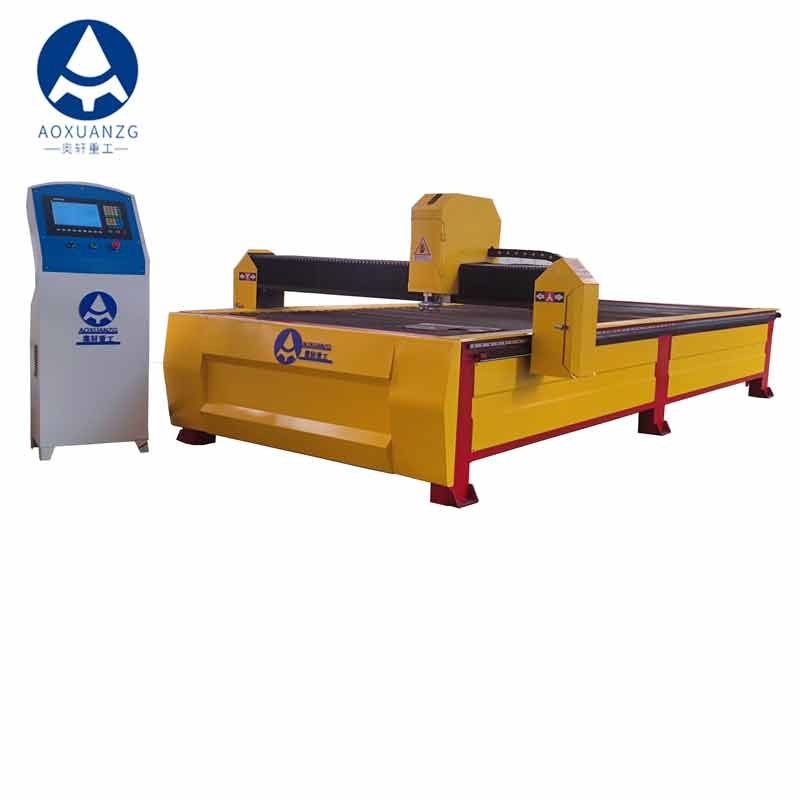

120A Desktop Plasma Cutting Machine For 20mm Thickness Metal

120A Desktop Plasma Cutting Machine For 20mm Thickness Metal

120A Desktop Plasma Cutting Machine

20mm Thickness Metal Plasma Cutter

120A Desktop Plasma Cutter

Place of Origin:

China

Brand Name:

AOXUANZG

Certification:

CE

Model Number:

AXP-4020

Contact Us

Request A Quote
Product Details
Automatic Grade:
Automatic
Cutting Mode:
Plasma Cutting
Motor Type:
Stepper Motor
Rated Power:
7.5kw-15kw
Cutting Length:
2500-6000mm
Working Area:
2000*4000mm
Cutting Material:
Copper, Carbon Steel, Iron, Aluminum, Metal Alloy, Stainless Steel
Power Source:
Electric
Voltage:
380V 220V Optional
Application:
Industrial Metal Cutting
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
US $6500-7320 / Set
Packaging Details
Fumigation Wooden Box
Delivery Time
30 days after payment
Product Description

4020 Factory Hot Sale 120A Desktop Plasma Cutting Machine Plasma Cutter For 20mm Thickness Metal

4020 Factory Hot Sale Desktop Plasma Cutting Machine Plasma Cutterfor 20mm Thickness Metal



Main Features:
1--The unique means to increase the cutting wall, to avoid generating torch head sticking phenomenon
and iron board contact
rolling friction so run more smoothly, greatly improved cutting speed.
2--Using a dedicated duct expand software automatically generates drawings, export processing program.
Operators need to do is
select the desired software duct style, enter the desired size,
and then export the machining program for cutting it, namely
convenient, practical and accurate.


Brief configuration:
1 X, Y axis adopt rack and pinion. X, Y axis orbit using precision linear compasses,
effectively ensure the accurancy of machine
operation.
2 Computer graphics, program production, control and processing seamlessly with a computer to achieve full fuctionality,
save
time, worry, and effort.
3 Mechanical limit, the electronic device to a set limit, so no worries production.
4 Bilateral drive, the configuration of high-power motor, fine points of the drive,
with great precision mechanical actuation system, run faster, higher cutting efficiency.

120A Desktop Plasma Cutting Machine For 20mm Thickness Metal 0



Main configuration:

Plasma cutting machine (high configuration)
STARFIRE Microstep control Automatic Torch height control Professional goggles Software starcam

Independent control cabinet Heavy duty Machine body Standard export wooden case 2G processing file




Technical parameter

Model Plasma cutting machine
X,Y working area 4000*2000mm
Lathe bed Very thick steel structure
Machine Power 8.5kw
Working voltage 220V 1 phase 60hz
Reposition precision 0.02mm
Processing precision 0.1mm
Maximum cutting speed 12000mm/min
Torch Height control mode Automatic
Control system STARfire
Motors Stepper motor
Software fastcam
Weight 3500KG
Plasma Air Pressure Max.0.8Mpa
Working Temperature -10°C-60°C. Relative Humidity, 0-95%.
LCD Display Dimension 7 Inches

Details:



CNC controller

120A Desktop Plasma Cutting Machine For 20mm Thickness Metal 1



Language setting

120A Desktop Plasma Cutting Machine For 20mm Thickness Metal 2



Cutting head

120A Desktop Plasma Cutting Machine For 20mm Thickness Metal 3



Table

120A Desktop Plasma Cutting Machine For 20mm Thickness Metal 4



Delivery



120A Desktop Plasma Cutting Machine For 20mm Thickness Metal 5



Our Service:


Pre-sales.
* Project design, performance introduction, technical agreement, contract signing, packaging
* Inquiry and consulting support.
* Sample testing support.

In-sales.
* We will provide you with the latest progress in the product assembly, packaging and transportation.

After-sales.
* We will provide free accessories for the damage to non - human parts.
* Training how to install the machine, training how to use the machine with video and so on
* And our technical staff can go abroad to provide technical guidance.
