Jh21-45 Aluminum Foil Container Pneumatic Punching Machine 45T With Auto Stacking

Jh21-45 Aluminum Foil Container Pneumatic Punching Machine 45T With Auto Stacking

Aluminum Foil Container Pneumatic Punching Machine

Pneumatic Punching Machine 45T

Auto Stacking Pneumatic Punching Machine

Place of Origin:

China

Brand Name:

AOXUANZG

Certification:

CE

Model Number:

JH21-45

Contact Us

Request A Quote
Product Details
Slider Drive Mechanism:
Screw Press
Power Source:
Pneumatic
Controlling Mode:
CNC
Automatic Grade:
Automatic
Condition:
New
Nominal Force:
450T
Hole Size For Die Handle:
40*60mm
Electric Motor:
5.5kw
Table Plate Thickness:
80mm
Strokes:
200mm
Length Between Colums:
550mm
Closed Height:
390mm
Size Of Worktable:
800*1000mm
Weight:
4200kg
Specification:
1765*1200*2650mm
Certification:
GS, CE, RoHS, ISO 9001
Origin:
Maanshan
Warranty:
13 Months
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
US $10526-10984
Packaging Details
Fumigation Wooden Box
Delivery Time
35 days after payment
Payment Terms
L/C, D/A, D/P, T/T
Supply Ability
300 sets/ year
Product Description



Jh21-45 Aluminum Foil Container Pneumatic Punching Machine 45T

with Auto Stacking Cheap

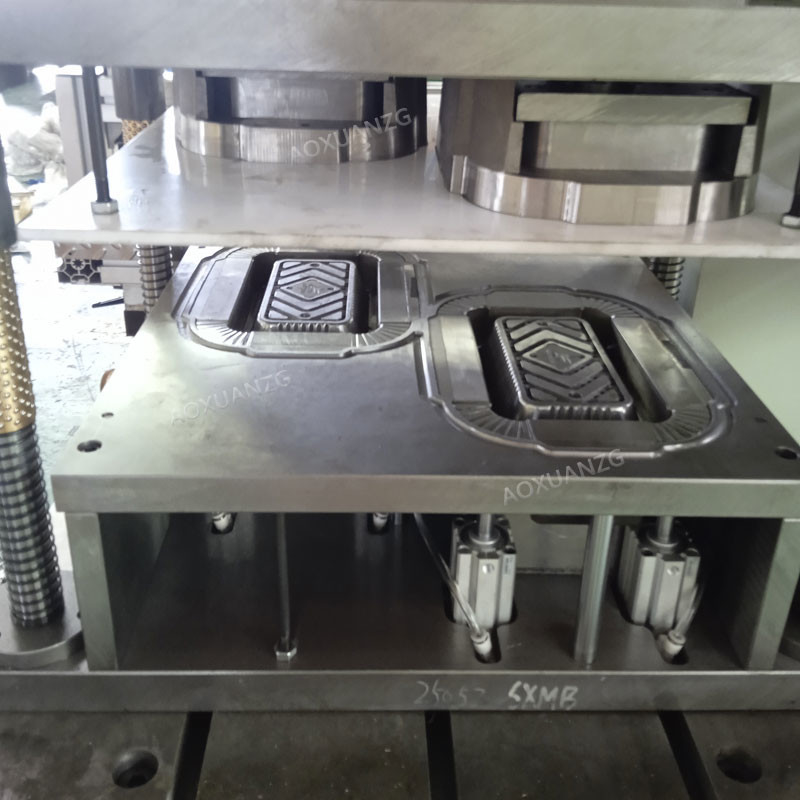

Jh21-45 Aluminum Foil Container Pneumatic Punching Machine 45T With Auto Stacking 0

JH21 series open back press with dry clutch and hydraulic overload protector
1 Welded body with steel plate and high intensity.
2 Main motor is made by Siemens.
3 Adopts combined pneumatic friction clutch and brake.
4 Cluster gear adopts the flooding oil lubrication.
5 Six-face rectangle lengthen guide; JH21-315B/400B adopts eight-face lengthen guideway.
6 Equipped with hydraulic overload protecting device.
7 JH21-25/25B/45 adopts manual shut height adjustment,among these types JH21-25/45 adopts scale display and JH21-25B
with digital display.JH21-63 and above type adopts electric shut height adjustment with digital display.
8 JH21-45 can equipe with die set height adjustment motor, the value will be displayed by digital.
9 JH21-25B, JH21-45 and above type equipped with balance cylinder.
10 Duplex valves imported.
11 Electric compelling grease lubrication system.
12 Balancing cylinder adopts manual lubrication system.
13 One set of blowing device.
14 Controlled by PLC with international brand(Alternative).



Equipment:
•JIS I accuracy.v
•Steel welded frame with high rigidity.
•Motor with inverter.
•Combined wet friction clutch.
•Rectangular hexahedral lengthened guide; OCP-315/400 with octahedral lengthened guide.
•Hydraulic overload protector.
•Lifting balance cylinder.
•Imported dual solenoid valve.
•Elec.forced grease lubrication.
•Balance cylinder: manual oil lubrication.
•Integrated panel (elec.cam included).
•PLC control of international brand.
•Contactor and button of international brand.
•CE safety specifications
•Optional: air cushion, light curtain, automotive device, feeder.



Details:

Jh21-45 Aluminum Foil Container Pneumatic Punching Machine 45T With Auto Stacking 1

Jh21-45 Aluminum Foil Container Pneumatic Punching Machine 45T With Auto Stacking 2



Packing Detail:
Each Pneumatic punching machine with plastic film package first, then placed in a wooden case, wooden case with a foam filling.
We loaded the truck with heavy trucks for loading the cargo to the harbor terminal.At the dock we pack the goods in containers
and ship them abroad.
Delivery Detail:
Shipped in 30 days after payment



Our Service :
Pre-sales.
* Project design, performance introduction, technical agreement, contract signing, packaging * Inquiry and consulting support.
* Sample testing support.
In-sales. * We will provide you with the latest progress in the product assembly, packaging and transportation.
After-sales.
* We will provide free accessories for the damage to non - human parts. * Training how to install the machine, training how to use
the machine with video and so on * And our technical staff can go abroad to provide technical guidance.
