Place of Origin: | China |
---|---|
Brand Name: | AOXUANZG |
Certification: | CE |
Model Number: | J23-40T |
Minimum Order Quantity: | 1 SET |
Price: | US $4500-4719 / Set |
Packaging Details: | Standard wooden case |
Delivery Time: | 30 days after payment |
Payment Terms: | D/A, D/P, Western Union, L/C, T/T |
Supply Ability: | 300 sets/ year |
Model: | J23-40T | Table: | Fixed |
---|---|---|---|
Nominal Force: | 400KN | Stroke Of Sliding: | 100mm |
Closed Height: | 210mm | Hole Size For Die Handle: | φ50mm |
Size Of Worktable: | 400*650mm | Worktable Hole Size: | φ135mm |
No. Of Stroke: | 50 Times/Min | Adjustable Height Of Mold: | 50mm |
Table Thickness: | 70mm | Power: | 3KW |
Size: | 1400*1000*2300mm | Throat Depth: | 350mm |
Warrnty: | 13 Months | Origin: | Maanshan |
High Light: | 400KN Mechanical Punch Press,Mechanical Punching Machine Deep Throat,Mechanical Punching Machine With Fixed Bed |

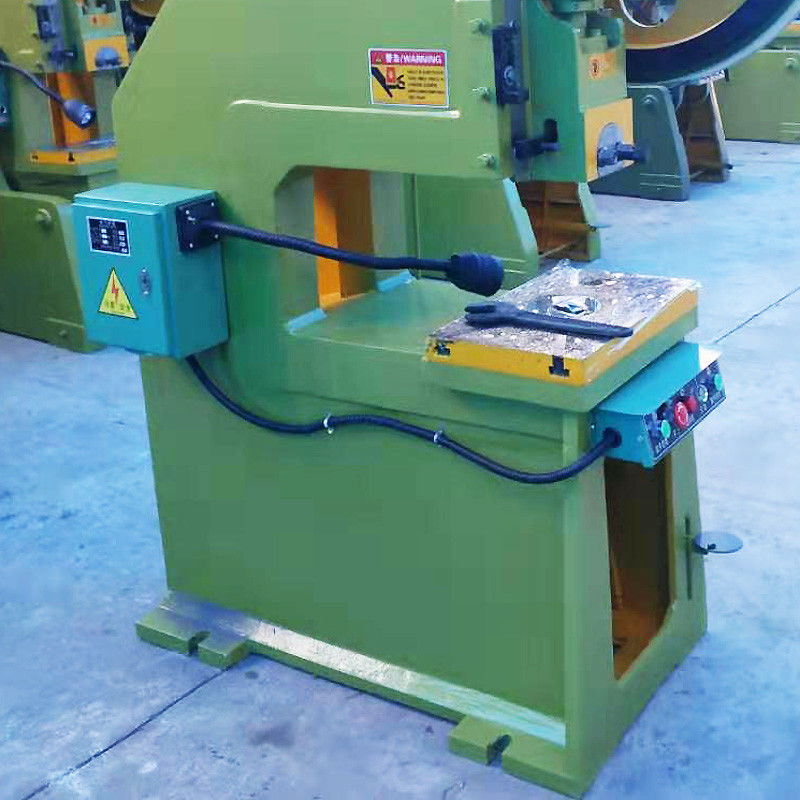

J21S-40T Mechanical Punching Machine Deep-Throat Power Press with Fixed Bed
Main Features:
1. Different from the separate purchase of punching machines and feeding equipment on the market, our integrated production mode ensures the overall coordination of products and lays a good foundation for after-sales maintenance.
2. Except for the computer and the screw guide rail, the production and installation of this product are carried out under our strict quality inspection procedures, and no external processing will be made, so the overall rigidity and coordination of the equipment are guaranteed, and the gap compensation function is finally used. Ensure the quality of equipment.
3. After nearly a year of market integration, combined with customer feedback, we have carried out a series of humanized improvements, such as laser positioning function, quick mold change function (a set of molds can be changed within one minute), fast and accurate sheet metal Clamping function, etc.
4. The equipment is all mechanical and does not need to be equipped with an air compressor, with low noise and low energy consumption.
Transmission control and brake systems:
1. Use the combine of dry friction clutch and brake pneumatic, rigid interlocking, reliable piece of friction material semimetallic friction material SMFM88, less pollution, long life. With the transfer torque, rotational inertia is small, smooth transmission, flexible operation,convenient of installation and maintenance
2. Die height adjustment of slider with manual mode, the scale display. Extended by four
triangular rail, easy adjustment.
3. Use double safety valve to ensure the accurate implementation of the clutch instruction.
4. Electrical control is installed PLC, 8 group cam controller, reliable action.
5. Electrical control adopts Omron PLC for centralized control, improved machine reliability
6. Proximity switch with 8 groups consisting of cam controller, reliable synchronization detection and monitoring.
7. Machine is with both hands button and foot switch to achieve continuous, single and inching practices.
8. Can move the RAM up slowly, which allows the operator to control Mold adjustment conveniently.
Detailed photos:
Technical Parameters:
Packing photo:
After-sales service:
All our machines are insured during transportation. If you encounter any problems, you can claim immediately if you provide evidence. The machine has a 13-month warranty period after the date of the bill of lading, and the engineer will be in place within 24 hours to process it online.
