Product Details
Place of Origin: China
Brand Name: AOXUANZG
Certification: CE
Model Number: WE67K-170T/3200
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: $23568-$33200/unit
Packaging Details: Standard export packing
Delivery Time: 20-30 days
Payment Terms: L/C, T/T, Western Union, D/P, D/A
Supply Ability: 500sets/Year
Controller: |
DA53T Controller |
Machine Type: |
Electro-hydraulic Servo |
Nominal Pressure: |
1700KN |
Worktable Length: |
3200mm |
Distance Between Housings: |
2050mm |
Throat Depth: |
320mm |
RAM Stroke: |
140mm |
Max. Open Height: |
395mm |
Strokes: |
≥8times/min |
Main Motor: |
11kw |
Weight: |
6T |
After Service: |
Online Video Guidance |
Company Type: |
Factory |
Other Service: |
OEM |
Controller: |
DA53T Controller |
Machine Type: |
Electro-hydraulic Servo |
Nominal Pressure: |
1700KN |
Worktable Length: |
3200mm |
Distance Between Housings: |
2050mm |
Throat Depth: |
320mm |
RAM Stroke: |
140mm |
Max. Open Height: |
395mm |
Strokes: |
≥8times/min |
Main Motor: |
11kw |
Weight: |
6T |
After Service: |
Online Video Guidance |
Company Type: |
Factory |
Other Service: |
OEM |

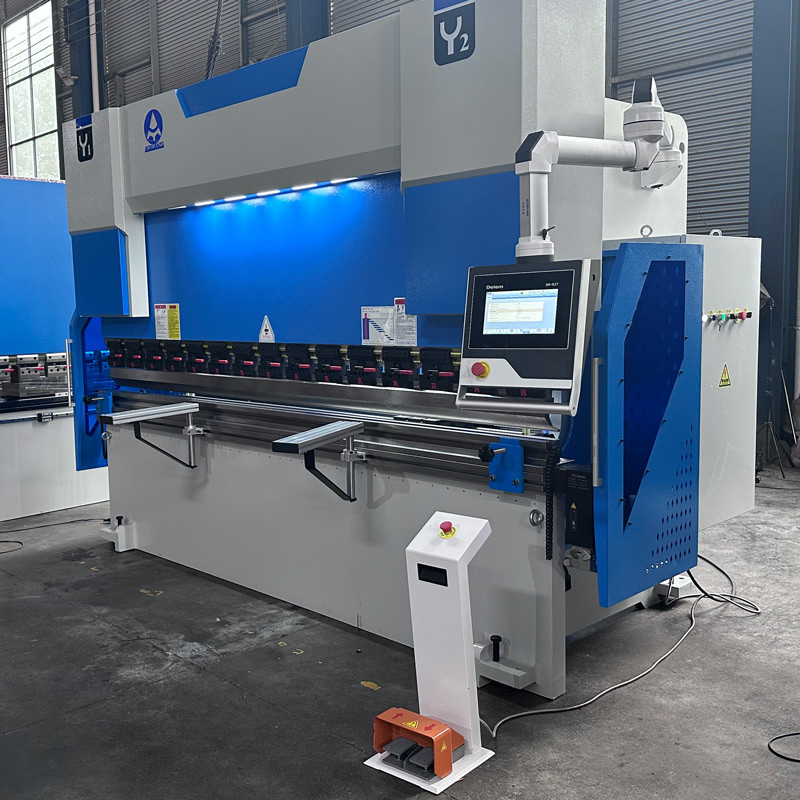

This is a 170T, 3200mm long electro-hydraulic servo bending machine, which is very large. It can fold steel plates with a length of 3200mm, and the thickness can reach more than 6mm. It has high-precision 4+1-axis backgauge (X, Y1, Y2, V, R), and is equipped with many electrical components of international famous brands.
Main Features:
● CNC Series machines redesigned based on users preferences to become a unique machine with its individual electronic and
mechanical features.
● CNC Series are among the highest rated machines which will help you increase your productivity and keep costs at minimum level
with its user friendly CNC controller and low cost hydraulic maintenance.
● Automatic utilisation of all axes on startup.
● Rigid upper beam runs on 8-point bearings with bending precision of 0,01 mm.
● Well-known top and bottom tool brands are long lasting hardened and provide precise bending.
● All Aoxuan machines are designed using SOLID WORKS 3D programming and made with enhanced ST44-1 quality steel using the latest technology.
The standard cofiguration:
High precision 4+1 backgauge
Compensation table
Side + Rear Guardrails(Optional)
Electrical components, Schneider, France
Manifold, Bosch, Germany
Grating scale, GIVI, Germany
Tubing, EMB, Germany
Oil pump, Sunny, USA
Laser Protection, SDKELI, China (Optional)
DA53T Controller System:
Details:
Technical Parameters:
| Model | Nominal pressure (KN) | Worktable Length (mm) | Columns Distance (mm) | Throat | Slider | Max | Main | Dimension |
| Depth | Stroke | Open | motor | L x W x H | ||||
| (mm) | (mm) | height | Power | (mm) | ||||
| (mm) | (KW) | |||||||
| WC67Y/K-30/1600 | 300 | 1600 | 1280 | 200 | 80 | 190 | 3 | 1700×900×1650 |
| WC67Y/K-30/2000 | 300 | 2000 | 1280 | 200 | 80 | 190 | 3 | 1700×900×1650 |
| WC67Y/K-40/2500 | 400 | 2500 | 1900 | 280 | 100 | 320 | 5.5 | 2600×1100×1900 |
| WC67Y/K-63/2500 | 630 | 2500 | 1900 | 350 | 170 | 380 | 5.5 | 3100×1450×2050 |
| WC67Y/K-80/3200 | 800 | 3200 | 2700 | 350 | 170 | 380 | 7.5 | 3500×1550×2100 |
| WC67Y/K-100/3200 | 1000 | 3200 | 2700 | 400 | 200 | 420 | 7.5 | 3500×1580×2400 |
| WC67Y/K-160/3200 | 1600 | 3200 | 2700 | 400 | 200 | 420 | 11 | 3500×1650×2550 |
| WC67Y/K-200/3200 | 2000 | 3200 | 2700 | 400 | 200 | 420 | 15 | 3500×1680×2550 |
Packing Detail:
Each Hydraulic Press Brake with plastic film package first, then placed in a wooden case, wooden case with a foam filling.
We loaded the truck with heavy trucks for loading the cargo to the harbor terminal.At the dock we pack the goods in containers
and ship them abroad.
Delivery Detail:
Shipped in 30 days after payment
Our Company:
Our workshop:
Customer & EXPO:
FAQ:
1. Are you the manufacture?Can we visit your factory? We are manufacturer and we are located in Anhui,China.And we have our
own design team for products design. And welcome you visit our factory and check our machine qualtiy on spot,any question will
be solved on spot at first time.
2.What's your main product and what is your main foreign market? Our main products are press brake,shears machine,press,cut
ting machine,locking machine ,auto duct line and related products. Our main foreign market are Asia, North America, Europe, Afr
ica.
3. What are the advantages of your machines?And how can i believe the quality of your product? The main configuration is to im
port quality products, and Professional product quality inspection teamensure machine in top-quality, precision and life. For exam
ple,Germany Bosch-Rexroth Valve group,Germany Siemens Main Motor,Schneider Electrics system and so on. Once tested as q
ualified .our machine would be sent out.So The quality of our product is stable and reliable.
