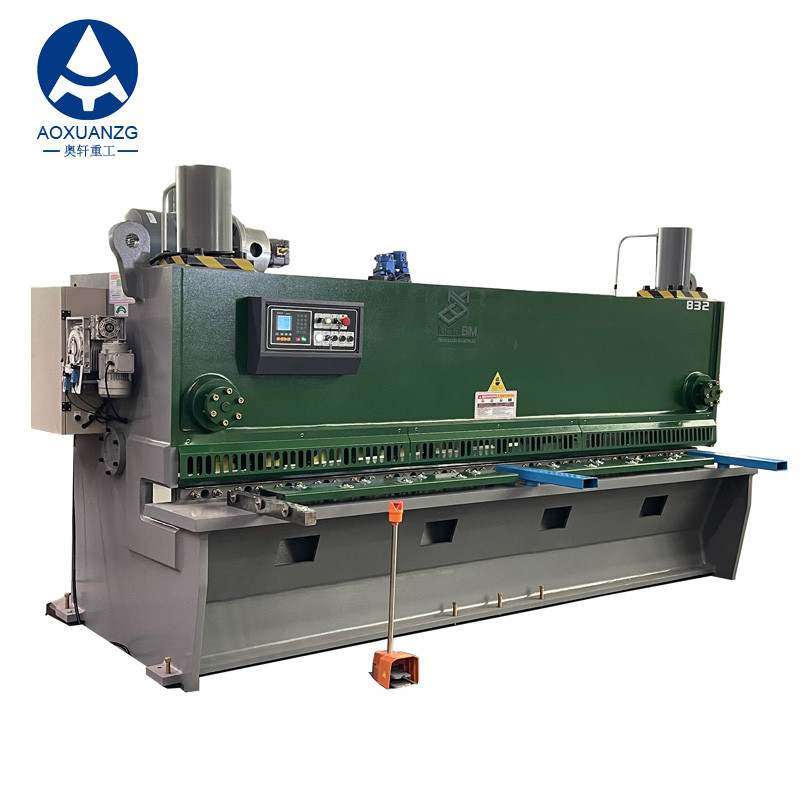

Q12K-8*3200MM Hydraulic Guillotine Shearing Machine NC Cutter With Blade Gap Adjustment

Q12K-8*3200MM Hydraulic Guillotine Shearing Machine NC Cutter With Blade Gap Adjustment

Hydraulic Guillotine Shearing Machine NC Cutter

Blade Gap Adjustment Hydraulic Guillotine Shear

Place of Origin:

China

Brand Name:

AOXUANZG

Certification:

CE

Model Number:

QC12K-8*3200

Contact Us

Request A Quote
Product Details
Motor Power:
7.5KW
Controller:
E21S
Stroke Times:
8 Times/min
Blade Gap Adjustment:
Automatic
Backgauge Range:
20-1000mm
Overall Dimension:
3860*1700*1700mm
Cutting Thickness:
8mm
Blade Clearance Adjustment:
Manual/electric
Payment & Shipping Terms
Minimum Order Quantity
1
Price
$10200-10500
Packaging Details
Wrap film around the machine, put in the export wooden case.
Delivery Time
15-30 DAYS
Payment Terms
50% deposit after order confirmed , 50% (payment after machine finished testing before shipping by(T/T).
Supply Ability
500 sets/year
Product Description



Q12K-8*3200MM Hydraulic Guillotine Shearing Machine NC Cutter With Blade Gap Adjustment



Hydraulic guillotine shearing machine

It is suitable for cutting carbon steel,stainless steel,galvanized sheet,aluminum and many other metals.It is widely used in metal processing industry,machine building industry,building construction,mining industry,railway construction and aerospace Industry.



Features:

1. Our Hydraulic Shearing Machine is a Swing Beam Action machine which is produced in a variety of cutting lengths and capacity options.
2. Adopt integrated hydraulic system, more reliable and easy for maintenance. and the hydraulic system from Bosch-Rexroth, Germany,
3. Equipped with lighting-alignment, so as to align when shearing. The stroke of knife beam can be adjusted in stepless mode.
4. Hydraulic drive, return of knife beam is smooth and prompt by nitrogen cylinder.
5. CE conformity including Tiltable Fornt Finger Guard and Optical Rear Safety Guard,
6. Safe fence and the electric interlocker have been designed for the machine to ensure the operation safety.

Q12K-8*3200MM Hydraulic Guillotine Shearing Machine NC Cutter With Blade Gap Adjustment 0



Technical parameter:

Model Thickness
(mm)
Cutting Length
(mm)
Cutting Angle
(°)
Material Strength
(KN/CM)
Stroke
(times/min)
Power
(kw)
Dimension(mm)
4×2500 4 2500 1°30’ ≤450 10 5.5 3040*1610*1620
4×3200 4 3200 1°30’ ≤450 10 5.5 3840*1610*1620
4×4000 4 4000 1°30’ ≤450 8 5.5 4600*1700*1700
4×6000 4 6000 1°30’ ≤450 5 7.5 6460*2100*3200
6×2500 6 2500 1°30’ ≤450 10 7.5 3040*1610*1620
6×3200 6 3200 1°30’ ≤450 9 7.5 3840*1610*1620
6×4000 6 4000 1°30’ ≤450 8 7.5 4620*1750*1700
6×5000 6 5000 1°30’ ≤450 6 7.5 5400*1750*1700
6×6000 6 6000 1°30’ ≤450 5 11 6480*2100*2300
8×2500 8 2500 1°30’ ≤450 10 7.5 3040*1700*1700
8×3200 8 3200 1°30’ ≤450 8 7.5 3860*1700*1700
8×4000 8 4000 1°30’ ≤450 8 7.5 4640*1700*1700
8×5000 8 5000 1°30’ ≤450 8 7.5 5400*2400*2000
8×6000 8 6000 1°30’ ≤450 8 11 6480*2100*2350
10×2500 10 2500 1°30’ ≤450 9 11 3040*1700*1700
10×3200 10 3200 1°30’ ≤450 9 11 3860*1700*1700
10×4000 10 4000 1°30’ ≤450 8 11 4650*2100*2000
10×6000 10 6000 ≤450 5 15 6500*2100*2300
12×2500 12 2500 ≤450 9 18.5 3140*2150*2000
12×3200 12 3200 ≤450 9 18.5 3880*2150*2000
12×4000 12 4000 ≤450 8 18.5 4680*2150*2000
12×5000 12 5000 ≤450 6 18.5 5900*2150*2000
12×6000 12 6000 ≤450 5 18.5 6900*2600*2700
12×8000 12 8000 ≤450 5 18.5 9000*3500*3500
16×2500 16 2500 2°30’ ≤450 9 18.5 3140*2150*2000
16×3200 16 3200 2°30’ ≤450 8 18.5 3880*2150*2000
16×4000 16 4000 2°30’ ≤450 8 18.5 4650*2150*2200
16×5000 16 5000 2°30’ ≤450 6 18.5 5900*2600*2700
16×6000 16 6000 2°30’ ≤450 5 22 6900*2700*2700
16×8000 16 8000 2°30’ ≤450 5 22 9000*3500*3500
20×2500 20 2500 ≤450 8 22 3440*2300*2500
20×3200 20 3200 ≤450 8 22 4150*2350*2700
20×4000 20 4000 ≤450 5 22 4850*2350*2700
20×6000 20 6000 ≤450 4 22 4850*2350*2700
25×2500 25 2500 ≤450 8 37 3200*2700*2900
25×3200 25 3200 ≤450 5 37 4200*2700*2900
30×2500 30 2500 ≤450 4 37 3300*2900*2900
30×3200 30 3200 3°30’ ≤450 4 40 4200*2900*2900
40×2500 40 2500 ≤450 3 75 3200*3300*3000
40×3200 40 3200 ≤450 3 90 4300*3300*3200



Details:

● Estun E21sNC control System
● Powered Back gaugeX-axis
● DELTA Inverter controlled back gauge
● HIWIN Ball screws & Polished rod with 0,05mm accuracy.
● Squaring Arm and Front Support Arms
● Germany Bosch-Rexroth Hydraulic
● Germany EMB Tubing connector
● Germany Siemens Main Motor
● Tele mecanique/Schneider Electrics
● Hydraulic &Electrical overload protection
● Cutting Line Illumination and wire for shadow line cutting
● Top blade with two cutting edges and bottom blade with four cutting edges.(6CrW2Si)



Q12K-8*3200MM Hydraulic Guillotine Shearing Machine NC Cutter With Blade Gap Adjustment 1Q12K-8*3200MM Hydraulic Guillotine Shearing Machine NC Cutter With Blade Gap Adjustment 2Q12K-8*3200MM Hydraulic Guillotine Shearing Machine NC Cutter With Blade Gap Adjustment 3Q12K-8*3200MM Hydraulic Guillotine Shearing Machine NC Cutter With Blade Gap Adjustment 4Q12K-8*3200MM Hydraulic Guillotine Shearing Machine NC Cutter With Blade Gap Adjustment 5

Q12K-8*3200MM Hydraulic Guillotine Shearing Machine NC Cutter With Blade Gap Adjustment 6



Pre-sales.
* Project design, performance introduction, technical agreement, contract signing, packaging
* Inquiry and consulting support.
* Sample testing support.



In-sales.
* We will provide you with the latest progress in the product assembly, packaging and transportation.



After-sale.
* We will provide free accessories for the damage to non - human parts.
* Training how to install the machine, training how to use the machine with video and so on
* And our technical staff can go abroad to provide technical guidance.



FAQ:
1. Are you the manufacture?Can we visit your factory?
We are manufacturer and we are located in Anhui,China.And we have our own design team for products design.
And welcome you visit our factory and check our machine qualtiy on spot,any question will be solved on spot at first time.

2.What's your main product and what is your main foreign market?
Our main products are press brake,shears machine,press,cutting machine,locking machine ,auto duct line and related products.
Our main foreign market are Asia, North America, Europe, Africa.

3. what are the advantages of your machines?And how can i believe the quality of your product?
The main configuration is to import quality products, and Professional product quality inspection team ensure machine in top-quality, precision and life.
For example,Germany Bosch-Rexroth Valve group,Germany Siemens Main Motor,Schneider Electrics system and so on.

Once tested as qualified .our machine would be sent out.So The quality of our product is stable and reliable.

4. And are you able to update the production process Information in time after placing our order?
After confirming your order ,we would keep you updated of production details of emails and photos.

5. Can we be your agent?
Yes,we are looking for Global agent we will help agent improve the market ,and supply all the service like machine technical problem or other after-sales problem, meanwhile ,you can get big discount and commission.

6. Payment terms?
T/T, L/C, Western Union, Paypal, Alibaba Secure Payment ect.

7,Are you provide product metal parts and provide us technical guidance?
Wearing parts,Disassembly tool(free) are what we could provide.And we can give you technical guidance.Our technical staff can go abroad to provide you with technical guidance.

8. How long is your warranty?
13 months free warranty, life-long maintenance.

9.Do you accept customer Logo and customized ?
we accept kinds of customized ,including logo and machine .



If you are interested, please contact me ^-^
