Hydraulic Press Brakes 1600mm Worktable Servo Press Brake CNC Controller Smooth Metal

Product Details

Place of Origin: Maanshan

Brand Name: Aoxuanzg

Certification: CE

Model Number: WC67Y/K-40T1600

Payment & Shipping Terms

Minimum Order Quantity: 1 SET

Price: $7000

Packaging Details: Wrap film around the machine, put in the Export wooden case.

Delivery Time: 25 DAYS

Payment Terms: 50% deposit

Supply Ability: 300 sets/year

Get Best Price
Highlight:
Max. Pressure:
400KN
Product Name:
Servo Press Brake
Control System:
TP10S
Control Mode:
CNC
Table Length:
1600mm
Carbon Steel:
3mm
Stainless Steel:
1.5mm
Throat Depth:
320mm
Postioning Accuracy:
±0.03mm/m
Stroke:
100mm
Main Motor Power:
5.5KW
Weight:
1.5T
Max. Pressure:
400KN
Product Name:
Servo Press Brake
Control System:
TP10S
Control Mode:
CNC
Table Length:
1600mm
Carbon Steel:
3mm
Stainless Steel:
1.5mm
Throat Depth:
320mm
Postioning Accuracy:
±0.03mm/m
Stroke:
100mm
Main Motor Power:
5.5KW
Weight:
1.5T

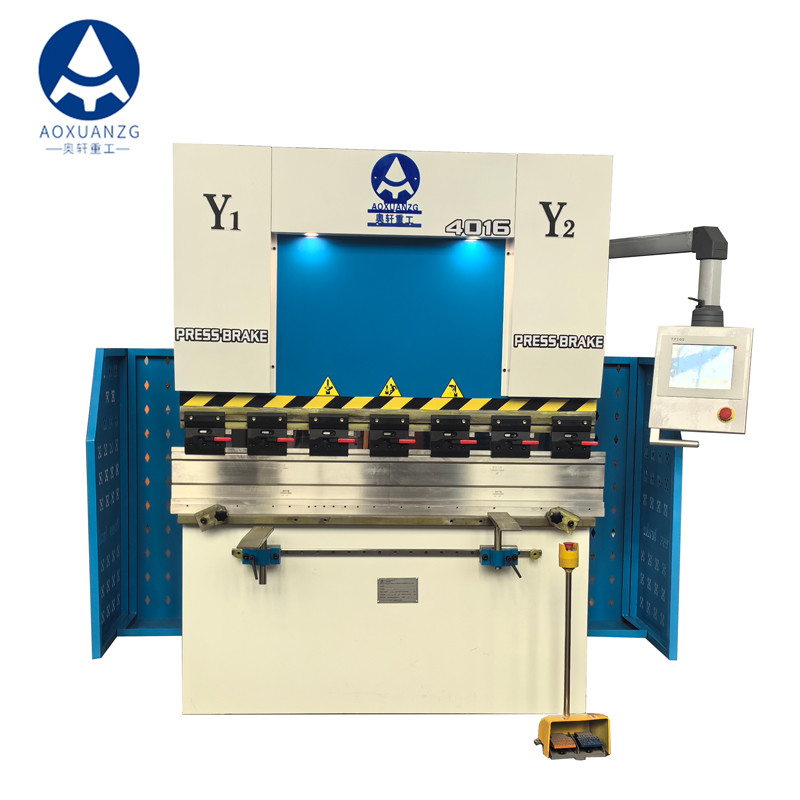

Hydraulic Press Brakes 1600mm Worktable Servo Press Brake CNC Controller Smooth Metal

Hydraulic Press Brakes 1600mm Worktable Servo Press Brake CNC Controller Smooth Metal

Hydraulic Press Brakes 1600mm Worktable Servo Press Brake CNC Controller Smooth Metal 0



Product Description:

Product Overview: Servo Press Brake
Introduction

The servo press brake is a high precision and efficient machine designed for bending and shaping metal sheets. It is equipped with a mechanical torsion bar system that provides stability and accuracy, making it ideal for various industrial applications.



Key Features

  • High Precision: The mechanical torsion bar system ensures precise and accurate bending of metal sheets, making it suitable for demanding industrial applications.
  • Efficient: The 7.5KW main motor provides sufficient force for bending thick and large metal sheets, improving efficiency and productivity.
  • User-friendly: The E21 control system allows for easy and precise control of the bending process, making it suitable for operators of all levels.
  • Stable Performance: The use of high strength steel and the mechanical torsion bar system ensures stable and consistent bending performance.
  • Durable: Made of high strength steel, the Torsion Bar Press Brake is designed to withstand heavy usage and harsh working environments.
Hydraulic Press Brakes 1600mm Worktable Servo Press Brake CNC Controller Smooth Metal 1Hydraulic Press Brakes 1600mm Worktable Servo Press Brake CNC Controller Smooth Metal 2

Features:

  • Product Name: Servo Press Brake
  • Net Weight: 1500KG
  • Main Motor Power: 5.5KW
  • Stroke: 100mm
  • Voltage: 380V/50HZ/ Customized
  • Max. Opening Height: 320mm
  • Ball screw and linear guide for precise bending
  • Y1, Y2 axis for independent control of left and right cylinders
  • Backgauge for accurate positioning of material
  • TP10S controller for easy operation and programming



Technical Parameters:

Technical Parameter Description
Voltage 380V/50HZ/Customized
Overall Dimensions 1800×1200×1800mm
Distance between housings 1200mm
Net Weight 1500KG
Color Blue And White/Customized
Main Motor Power 5.5KW
Postioning Accuracy ±0.03mm/m
Max. Opening Height 320mm
Control System TP10S control system
Hydraulic Press Brakes 1600mm Worktable Servo Press Brake CNC Controller Smooth Metal 3



Applications:

Aoxuanzg Servo Press Brake is a high-quality and reliable machine used in metalworking industries for bending and shaping sheet metal. Its compact structure and advanced technology make it a popular choice for various applications.



Customization:

This Press Brake from Aoxuanzg offers customizable services to meet your specific needs. With a compact structure and AC motor, it provides high precision and easy operation. Its stable performance and high efficiency make it a reliable choice for your bending needs.



Packing and Shipping:

Torsion Bar Press Brake Packaging and Shipping

The Torsion Bar Press Brake will be carefully packaged to ensure safe delivery to our customers. It will be packed in a sturdy wooden crate to protect it from any damage during shipping.

Packaging Details:
  • The machine will be wrapped with protective materials to prevent scratches and other damages.
  • The main parts of the machine will be securely fixed in place to prevent movement during transit.
  • The wooden crate will be reinforced with metal straps for added security.
  • Clear and visible labeling will be placed on the outside of the crate for easy identification.
Shipping Details:
  • The Torsion Bar Press Brake will be shipped via a reputable and reliable courier service.
  • The shipping cost will be calculated based on the weight and dimensions of the machine.
  • Customers will be provided with a tracking number to monitor the status of their shipment.
  • The estimated delivery time will be communicated to customers upon purchase.

With our careful packaging and reliable shipping, customers can be assured that their Torsion Bar Press Brake will arrive in perfect condition and on time.



FAQ:

1. Can you supply the relevant documentation?
Yes, we can provide most documentation including Certificates of Analysis/Conformance: Insurance: Origin, and other export documents where required.

2. What is the average lead time?
For samples the lead time is about 7 days. For mass production the lead time is 20-30 days after receiving the deposit payment.
The lead times become effective when (1) we have received your deposit and (2) we have your final approval for your products. If our lead times do not work with your deadline, please go over your requirements with your sale. In all cases we will try to accommodate your needs. In most cases we are able to do so.

3. What kinds of payment methods do you accept?
You can make the payment to our bank account, Western Union or Alipay:30% deposit in advance, 70% balance before shipment.
