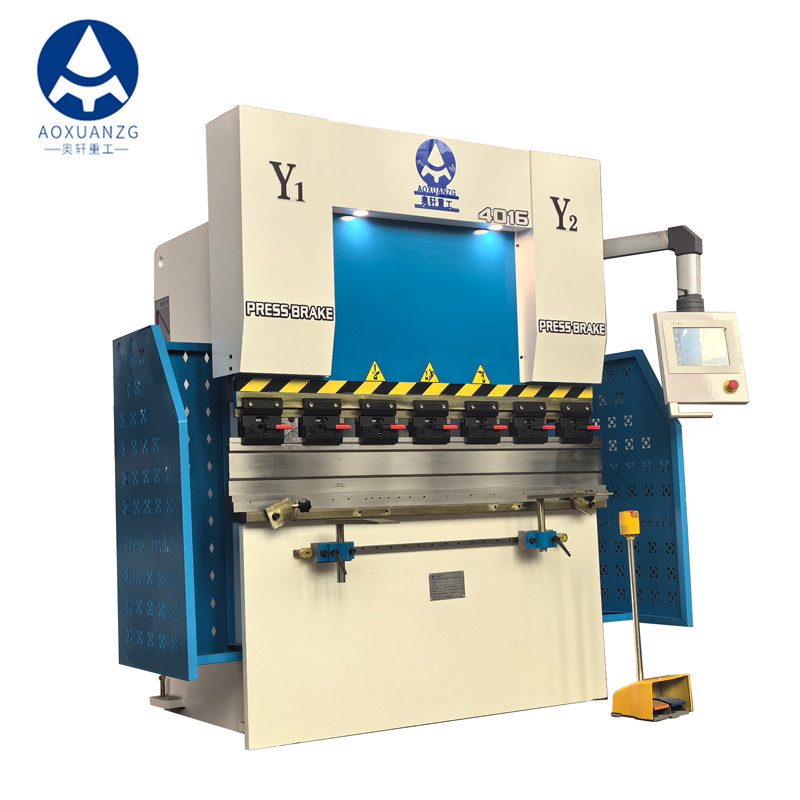

CNC Servo Press Brake Hydraulic Press Brakes 2500mm Worktable Sheet Metal Bending

CNC Servo Press Brake Hydraulic Press Brakes 2500mm Worktable Sheet Metal Bending

Product Description:

The servo press brake is a high precision and efficient machine designed for bending and shaping metal sheets. It is equipped with a mechanical torsion bar system that provides stability and accuracy, making it ideal for various industrial applications.

Key Features

• High Precision: The mechanical torsion bar system ensures precise and accurate bending of metal sheets, making it suitable for demanding industrial applications.
• Efficient: The 5.5KW main motor provides sufficient force for bending thick and large metal sheets, improving efficiency and productivity.
• User-friendly: The TP10S control system allows for easy and precise control of the bending process, making it suitable for operators of all levels.
• Stable Performance: The use of high strength steel and the mechanical torsion bar system ensures stable and consistent bending performance.
• Durable: Made of high strength steel, the Torsion Bar Press Brake is designed to withstand heavy usage and harsh working environments.

Features:

• Product Name: Servo Press Brake
• Net Weight: 3000KG
• Main Motor Power: 5.5KW
• Stroke: 120mm
• Voltage: Customized
• Max. Opening Height: 345mm
• Ball screw and linear guide for precise bending
• Y1, Y2 axis for independent control of left and right cylinders
• Backgauge for accurate positioning of material
• TP10S controller for easy operation and programming

TP10 function introduction
1. Angle programming (input how many degrees, how many degrees will be bent out)
2. Multi-step programming (products are formed in one go)
3. Mold library
4. Product library
5. The opening height of each step is programmable
6. Support R-axis servo lifting (optional function)
7. Support Y1-Y2 dual servo drive (optional function)
8. R axis with safety distance to prevent mold collision
9. Support manual movement of gears left and right (optional function)
10. Supports magnetic scale and can input opening height (standard configuration)
11. Support electromechanical compensation workbench (optional function)
12. Support large arc function
13. Supports step change conditions and bottom dead center step change
14. Support electromagnet simple bridge (optional function)
15. Supports fully automatic pneumatic dragging bridge (optional function)
16. Support material library, plate length, plate thickness, etc.
17. Supports functions such as frame strength and concessions
18. Support list viewing function
19. Support line-to-line pause at variable speed

Technical Parameters:

Applications:

Aoxuanzg Servo Press Brake is a high-quality and reliable machine used in metalworking industries for bending and shaping sheet metal. Its compact structure and advanced technology make it a popular choice for various applications.

Customization:

This Press Brake from Aoxuanzg offers customizable services to meet your specific needs. With a compact structure and AC motor, it provides high precision and easy operation. Its stable performance and high efficiency make it a reliable choice for your bending needs.

Packing and Shipping:

The Press Brake will be carefully packaged to ensure safe delivery to our customers. It will be packed in a sturdy wooden crate to protect it from any damage during shipping.

With our careful packaging and reliable shipping, customers can be assured that their Press Brake will arrive in perfect condition and on time.

FAQ:

1. Can you supply the relevant documentation?
Yes, we can provide most documentation including Certificates of Analysis/Conformance: Insurance: Origin, and other export documents where required.

2. What is the average lead time?
For samples the lead time is about 7 days. For mass production the lead time is 20-30 days after receiving the deposit payment.
The lead times become effective when (1) we have received your deposit and (2) we have your final approval for your products. If our lead times do not work with your deadline, please go over your requirements with your sale. In all cases we will try to accommodate your needs. In most cases we are able to do so.
