Product Details
Place of Origin: China
Brand Name: AOXUANZG
Certification: CE
Model Number: Q35Y-20
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: $6500/unit
Packaging Details: Standard export packing
Delivery Time: 20 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 500sets/Year
Punching Force: |
100T |
Cutting Thickness: |
20mm |
Material Strength: |
450 N/MM2 |
FREQUENCY: |
12-20 Times/min |
Cylinder Storke: |
80mm |
Working Diameter: |
33mm |
Angke: |
7 Angle |
Flat Bar Shearing: |
16*250mm |
Punching Force: |
100T |
Cutting Thickness: |
20mm |
Material Strength: |
450 N/MM2 |
FREQUENCY: |
12-20 Times/min |
Cylinder Storke: |
80mm |
Working Diameter: |
33mm |
Angke: |
7 Angle |
Flat Bar Shearing: |
16*250mm |

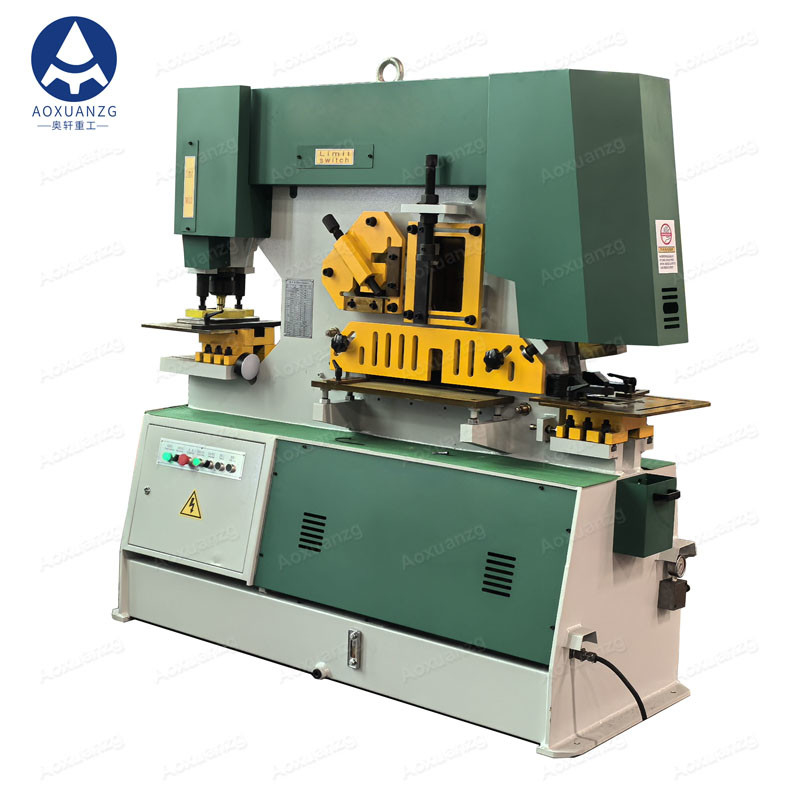

Factory Directly Supply Multifunctional Q35Y-20 Ironworker Machine Hydraulic Punching Shearing Notching Bending Machine
Q35Y series industrial-grade hydraulic ironworker featuring multiple functions, including: round hole, square hole, oblong hole punching; steel plate, flat bar, angle steel, C-channel, H-beam punching; steel plate bending; angle steel shearing, notching and bending; flat, round, square bar, C-channel, I-beam, T-bar shearing/cutting; angle bending and pipe notching.
The machine comes standard with: quick-change coupling nut & sleeve, squaring arm with scale, electronic back gauge, gauging table with stops, punching base table, safety guards and more. With its multifunction, Q35Y series hydraulic ironworker is your first choice among the counterpart machine. Besides, all the components are of the highest quality in the matter of safety, function, capability and maintenance.
Our machine is designed via the most advanced technology and has the virtues of easy operation, low consumption and low maintenance cost. We also can provide customized solutions to better cater for customers' needs.
| Model | Q35Y-16 | Q35Y-20 | Q35Y-25 | Q35Y-30 | Q35Y-40 | Q35Y-60 |
| Puching pressure(T) | 60T | 100T | 120T | 160T | 250T | 315T |
| Max cutting thickness of steel plates(mm) | 16 | 20 | 25 | 30 | 40 | 60 |
| Material strength (N/mm²) | ≤450 | ≤450 | ≤450 | ≤450 | ≤450 | ≤450 |
| Angel of shear (°) | 7° | 8° | 8° | 8° | 8° | 8° |
| Flat bar shearing (T×W)(mm) | 16*250 8*400 | 20*330 10*480 | 25*330 16*600 | 30*335 20*600 | 40*330 20*700 | 508300 30*750 |
| Max length of slinder strock(mm) | 80 | 80 | 80 | 80 | 100 | 100 |
| Trips frequency(times/min) | 11~20 | 12~20 | 8~18 | 6~16 | 6~16 | 6~12 |
| Depth of throat (mm) | 300 | 355 | 400 | 600 | 600 | 600 |
| Punch depth(mm) | 16 | 20 | 25 | 28 | 35 | 40 |
| Max.punching diameter(㎜) | 28 | 33 | 35 | 38 | 40 | 45 |
| Motor Power(KW) | 5.5 | 7.5 | 11 | 11 | 15 | 30 |
| Dimensions(L× W ×H)(mm) | 1780*920*1780 | 1952*920*1950 | 2355*1000*2150 | 2840*1200*2330 | 2940*1200*2330 | 3200*1440*2500 |
A. whole structure of the hydraulic iron worker :
1. Q35Y Series Hydraulic Iron Worker, Totally European design,The machine are strong and easy to use machines which are able to can cut and punch all kinds of materials such as plate, square bar, angle, round bar, channel and so on.
2. Aoxuanzg Industrial hydraulic ironworkers have been designed and built to the highest quality standards in the industry. This profitable machine will serve any grueling fabrication shop for decades to come
3. The machine by the European Union CE certification and ISO quality system certification
B. Hydraulic system:
1. Adopt integrated hydraulic control system, more reliable and easy for maintenance. Hydraulic system is from Bosch – Rexroth,Germany.
2. All seals in cylinder is PARKER from USA,the most famous brand,good quality and high performance
3. Being able to work under rated load continuously,stable working and high precision.
C. Machine Blade:
The rectangular monoblock blades featuring long life with 4 cutting edges, quality high-carbon high-chrome blades D2 quality.
D. Electrical system and the safety interlock:
1. Electrical components are from European,in accordance with international standards,reliable safety,long life,good anti-interference ability,a radiation unit is fitted in electrical cabinet.
2. Protective fence and the safety interlock to ensure the operation safety. Have a movable single-hand pedal switch,easy to operate.
3. Emergency stops on machine and foot switch for safety,Foot pedal conforming to CE regulation.
1. Are you the manufacture?Can we visit your factory?
We are manufacturer and we are located in Anhui,China.And we have our own design team for products design.
And welcome you visit our factory and check our machine qualtiy on spot,any question will be solved on spot at first time.
2.What's your main product and what is your main foreign market?
Our main products are press brake,shears machine,press,cutting machine,locking machine ,auto duct line and related products.
Our main foreign market are Asia, North America, Europe, Africa.
3. what are the advantages of your machines?And how can i believe the quality of your product?
The main configuration is to import quality products, and Professional product quality inspection team ensure machine in top-quality, precision and life.
For example,Germany Bosch-Rexroth Valve group,Germany Siemens Main Motor,Schneider Electrics system and so on.
Once tested as qualified .our machine would be sent out.So The quality of our product is stable and reliable.
4. And are you able to update the production process Information in time after placing our order?
After confirming your order ,we would keep you updated of production details of emails and photos.
5. Can we be your agent?
Yes,we are looking for Global agent we will help agent improve the market ,and supply all the service like machine technical problem or other after-sales problem, meanwhile ,you can get big discount and commission.
6. Payment terms?
T/T, L/C, Western Union, Paypal, Alibaba Secure Payment ect.
