Place of Origin: | China |
---|---|
Brand Name: | AOXUANZG |
Certification: | CE |
Model Number: | J23-12T |
Minimum Order Quantity: | 1 Set |
Price: | $1500 unite |
Packaging Details: | Standard export packing |
Delivery Time: | 20-30 days |
Payment Terms: | L/C, T/T, Western Union, MoneyGram |
Supply Ability: | 500sets/Year |
Pressure: | 120KN | Die Set Height: | 130mm |
---|---|---|---|
Work Table Size: | 220*370mm | Main Power: | 1500w |
Size: | 600*530*1500mm | Weight: | 130kg |
High Light: | 12T Small Power Press Machine,130mm small power press machine,CNC Hydraulic Plate Punching Machine |

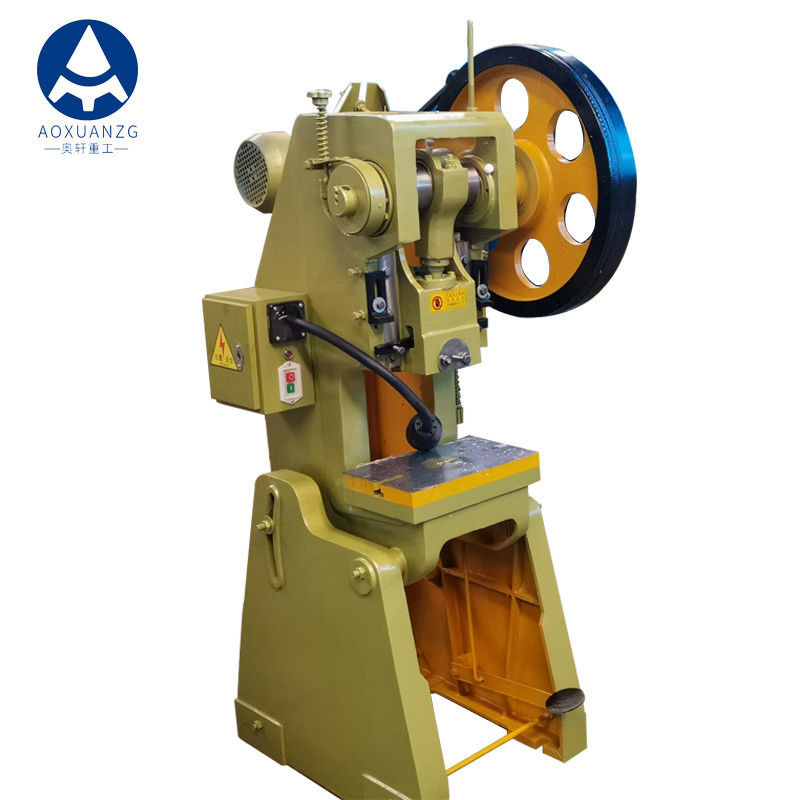

Small Type High Speed 12T Mechanical Power Press Punching Machines For Mini Parts
C-frame Punching Machine Main Features
1. C- frame provides maximum rigidity and minimum deflection for accurate parts and long tool life.
2. Steel-welded frame, high rigidity and less deformation Compact.
3. Thick plates and large columns provide you with the stable platform you need for your demanding application.
4. High accuracy, high efficiency, simple and convenient operation, good performance.
5. Wide body frame eliminating vibration for improved ide life and machine,which means economical and practical.
6. Operation space is wide, and the movable bolster could be moved out of frame to set the die. The structure is simple and the appliance is also beautiful.
Model | J23-6.3T | J23-12T | J23-16T | J23-25T | J23-40T | J23-63T | J23-80T | J23-100T | J23-125T |
Nominal Pressure(KN) | 63 | 120 | 160 | 250 | 400 | 630 | 800 | 1000 | 1250 |
Nominal Pressure Stroke(mm) | 1.5 | 2 | 2 | 2.5 | 4 | 4 | 5 | 5 | 5 |
Slide stroke(mm) | 40 | 50 | 60 | 70 | 100 | 100 | 120 | 120 | 140 |
Stroke frequency (times/min) | 150 | 140 | 100 | 70 | 55 | 56 | 45 | 50 | 40 |
Die Set Height (mm) | 120 | 130 | 170 | 200 | 240 | 275 | 300 | 320 | 340 |
Die Height Adjustment | 30 | 40 | 40 | 40 | 56 | 63 | 70 | 80 | 90 |
Worktable Size ( front-back) (mm) | 210 | 220 | 290 | 350 | 400 | 450 | 480 | 580 | 700 |
Worktable Size ( Left-Right)(mm) | 350 | 370 | 460 | 560 | 680 | 680 | 780 | 910 | 1100 |
Max Tilt Angle | 20 | 20 | 30 | 15 | 25 | 25 | 25 | 20 | 20 |
Die Handle Hole Size (mm) | 25 | 30 | 35 | 40 | 50 | 50 | 60 | 60 | 60 |
Thickness of the Worktable | 30 | 35 | 45 | 50 | 70 | 80 | 90 | 110 | 120 |
Worktable Hole Diameter | 70 | 90 | 120 | 130 | 135 | 140 | 160 | 160 | 170 |
Power(KW) | 0.75 | 1.5 | 1.5 | 2.2 | 3 | 4 | 5.5 | 7.5 | 11 |
Column Spacing (mm) | 140 | 170 | 190 | 240 | 250 | 280 | 320 | 390 | 400 |
Dimensions (mm) | 400*500*1300 | 600*530*1500 | 760*650*1600 | 900*700*2000 | 1400*1000*2300 | 1700*1150*2500 | 2000*1300*2650 | 1950*1400*2850 | 2300*1500*3000 |
Throat Depth (mm) | 120 | 130 | 170 | 190 | 250 | 260 | 290 | 330 | 330 |
Details:
Our crankshafts are all high-quality crankshafts made of 42CRMo steel after high temperature forging. the surface is quite smooth. so that make sure the lower friction resistance , and the lower noise. It is lubricated. The press work more smooth.
Packing Detail:
☂ Each Press machine with plastic film package first, then placed in a wooden case, wooden case with a foam filling.
✈ We loaded the truck with heavy trucks for loading the cargo to the harbor terminal.At the dock we pack the goods in containers and ship them abroad.
Delivery Detail :
☀ Shipped in 15 days after payment.
