Product Details
Place of Origin: China
Brand Name: AOXUANZG
Certification: CE
Model Number: QC11K-6*1600
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: $6450-$6895/unit
Packaging Details: Standard export packing
Delivery Time: 20-30 days
Payment Terms: L/C, T/T, Western Union, D/P, D/A
Supply Ability: 500sets/Year
Metarial: |
Metal Steel |
System: |
Estun E21S |
Type: |
Hydraulic Guillotine |
Cutting Thickness * Length: |
6*1600mm |
Cutting Angel: |
1°30' |
Metarial Strength: |
≤450KN/CM |
Stroke Times: |
16times/min |
Machine Weight: |
2T |
Metarial: |
Metal Steel |
System: |
Estun E21S |
Type: |
Hydraulic Guillotine |
Cutting Thickness * Length: |
6*1600mm |
Cutting Angel: |
1°30' |
Metarial Strength: |
≤450KN/CM |
Stroke Times: |
16times/min |
Machine Weight: |
2T |

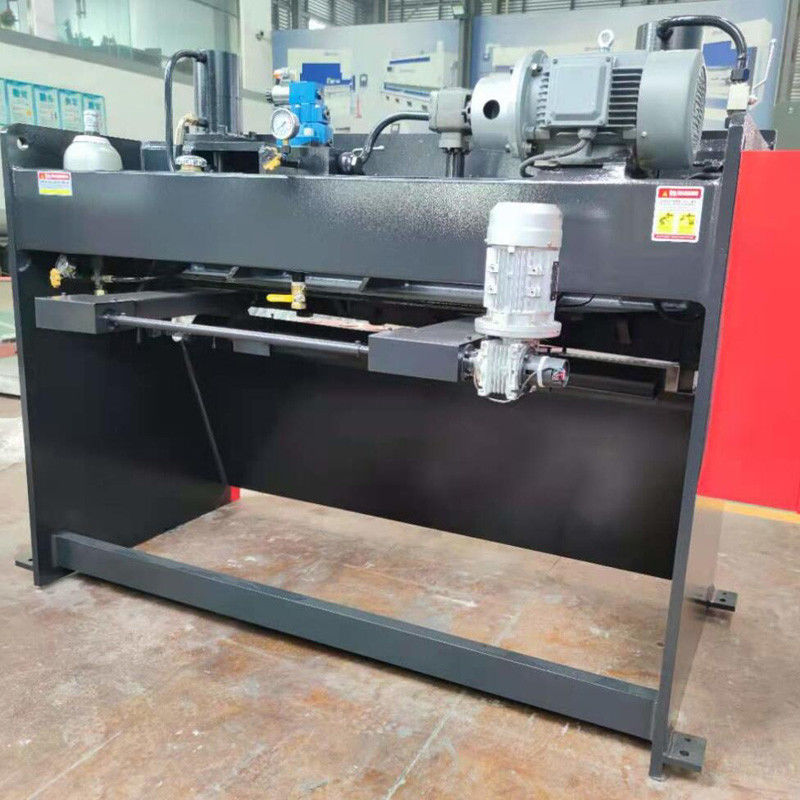

The Guillotine shear machine makes heavy-duty shear affordable. Frame and cutting beam offer maximum rigidity and resistance to deflection and torsional force for accurate shearing of mild steel up to30mm. This guillotine shear features four cutting edges that can be turned three times before grinding for increased production life. Cost-efficiently manufactured. Our guillotine shear machine fit your needs and your budget.
Technical Parameters:
| Model | Thickness(mm) | Cutting Length(mm) | Cutting Angle(°) | Material Strength (KN/CM) | Stroke (times/min) | Power(kw) | Dimension(mm) |
| 4×2500 | 4 | 2500 | 1°30’ | ≤450 | 10 | 5.5 | 3040*1610*1620 |
| 4×3200 | 4 | 3200 | 1°30’ | ≤450 | 10 | 5.5 | 3840*1610*1620 |
| 4×4000 | 4 | 4000 | 1°30’ | ≤450 | 8 | 5.5 | 4600*1700*1700 |
| 4×6000 | 4 | 6000 | 1°30’ | ≤450 | 5 | 7.5 | 6460*2100*3200 |
| 6×2500 | 6 | 2500 | 1°30’ | ≤450 | 10 | 7.5 | 3040*1610*1620 |
| 6×3200 | 6 | 3200 | 1°30’ | ≤450 | 9 | 7.5 | 3840*1610*1620 |
| 6×4000 | 6 | 4000 | 1°30’ | ≤450 | 8 | 7.5 | 4620*1750*1700 |
| 6×5000 | 6 | 5000 | 1°30’ | ≤450 | 6 | 7.5 | 5400*1750*1700 |
| 6×6000 | 6 | 6000 | 1°30’ | ≤450 | 5 | 11 | 6480*2100*2300 |
| 8×2500 | 8 | 2500 | 1°30’ | ≤450 | 10 | 7.5 | 3040*1700*1700 |
| 8×3200 | 8 | 3200 | 1°30’ | ≤450 | 8 | 7.5 | 3860*1700*1700 |
| 8×4000 | 8 | 4000 | 1°30’ | ≤450 | 8 | 7.5 | 4640*1700*1700 |
| 8×5000 | 8 | 5000 | 1°30’ | ≤450 | 8 | 7.5 | 5400*2400*2000 |
| 8×6000 | 8 | 6000 | 1°30’ | ≤450 | 8 | 11 | 6480*2100*2350 |
| 10×2500 | 10 | 2500 | 1°30’ | ≤450 | 9 | 11 | 3040*1700*1700 |
| 10×3200 | 10 | 3200 | 1°30’ | ≤450 | 9 | 11 | 3860*1700*1700 |
| 10×4000 | 10 | 4000 | 1°30’ | ≤450 | 8 | 11 | 4650*2100*2000 |
| 10×6000 | 10 | 6000 | 2° | ≤450 | 5 | 15 | 6500*2100*2300 |
| 12×2500 | 12 | 2500 | 2° | ≤450 | 9 | 18.5 | 3140*2150*2000 |
| 12×3200 | 12 | 3200 | 2° | ≤450 | 9 | 18.5 | 3880*2150*2000 |
| 12×4000 | 12 | 4000 | 2° | ≤450 | 8 | 18.5 | 4680*2150*2000 |
| 12×5000 | 12 | 5000 | 2° | ≤450 | 6 | 18.5 | 5900*2150*2000 |
| 12×6000 | 12 | 6000 | 2° | ≤450 | 5 | 18.5 | 6900*2600*2700 |
| 12×8000 | 12 | 8000 | 2° | ≤450 | 5 | 18.5 | 9000*3500*3500 |
| 16×2500 | 16 | 2500 | 2°30’ | ≤450 | 9 | 18.5 | 3140*2150*2000 |
| 16×3200 | 16 | 3200 | 2°30’ | ≤450 | 8 | 18.5 | 3880*2150*2000 |
| 16×4000 | 16 | 4000 | 2°30’ | ≤450 | 8 | 18.5 | 4650*2150*2200 |
| 16×5000 | 16 | 5000 | 2°30’ | ≤450 | 6 | 18.5 | 5900*2600*2700 |
| 16×6000 | 16 | 6000 | 2°30’ | ≤450 | 5 | 22 | 6900*2700*2700 |
| 16×8000 | 16 | 8000 | 2°30’ | ≤450 | 5 | 22 | 9000*3500*3500 |
| 20×2500 | 20 | 2500 | 3° | ≤450 | 8 | 22 | 3440*2300*2500 |
| 20×3200 | 20 | 3200 | 3° | ≤450 | 8 | 22 | 4150*2350*2700 |
| 20×4000 | 20 | 4000 | 3° | ≤450 | 5 | 22 | 4850*2350*2700 |
| 20×6000 | 20 | 6000 | 3° | ≤450 | 4 | 22 | 4850*2350*2700 |
| 25×2500 | 25 | 2500 | 3° | ≤450 | 8 | 37 | 3200*2700*2900 |
| 25×3200 | 25 | 3200 | 3° | ≤450 | 5 | 37 | 4200*2700*2900 |
| 30×2500 | 30 | 2500 | 3° | ≤450 | 4 | 37 | 3300*2900*2900 |
| 30×3200 | 30 | 3200 | 3°30’ | ≤450 | 4 | 40 | 4200*2900*2900 |
| 40×2500 | 40 | 2500 | 4° | ≤450 | 3 | 75 | 3200*3300*3000 |
| 40×3200 | 40 | 3200 | 4° | ≤450 | 3 | 90 | 4300*3300*3200 |
Main configuration
CNC controller : E21S Estun,China Brand
Main motor:Siemens,Germany brand
Electrical components:Schneider,France brand
Gear pump:Sunny,USA brand
Seal ring:NOK,Japan brand
Hydraulic system:Boschrexroth,Germany brand
Ball screw:HIWIN,Taiwan brand
Tubing connector:EMB, Germany Brand
Variable frequency drive:Shihlin,Taiwan Brand
Details:
Estun E21s
1. Backgauge and block control
2. Control for general AC motors, frequency inverter
3. Intelligent positioning
4. Stock counter
5. Holding/decompression time setting
6. Program memory of up to 40 programs
7. Up to 25 steps per program
8. One side positioning
9. Retract function
10. One key backup/restore of parameters
11. mm/inch
12. Chinese /English
Safety fence
Left and right protective guard guarantees operation safety
Measuring scale
Assist the operator to measure the width of the metal plate, simple and convenient, intimate
Back gauge
Brand: Aoxuanzg
Original: China
With higher precision, to ensure the positioning precision. It brings the higher accuracy of processing.
Electrical system
Electrical Cabinet under the standard of IP65, Electrical under international CE Standard, safe and reliable, strong anti interference capability. Protective fence and the safety interlock to ensure the operation safety. Have a movable single-hand pedal switch,easy to operate. Front Side Covers with safety switches, Back light safety guards,Foot pedal conforming to CE regulation.
