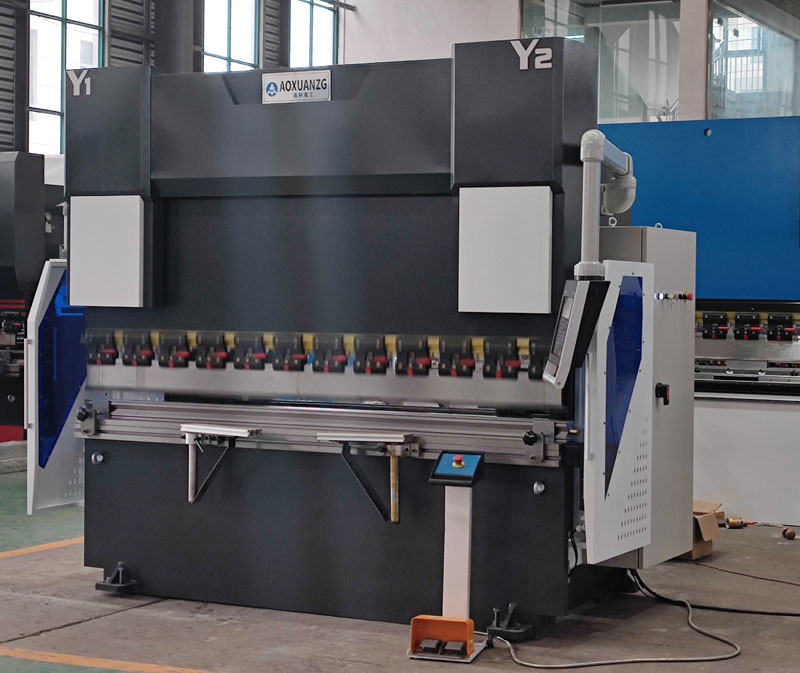

800KN 4+1 Axis Hydraulic CNC Press Brake With DA58T
1 set
MOQ
$26859-$28578/unit
Price
800KN 4+1 Axis Hydraulic CNC Press Brake With DA58T
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: AOXUANZG
Certification: CE
Model Number: WE67K-80T/2500
High Light:

800KN Hydraulic CNC Press Brake

,

DA58T Hydraulic CNC Press Brake

,

Steel WeldedHydraulic CNC Press Brake

Payment & Shipping Terms
Packaging Details: Standard export packing
Delivery Time: 20-30 days
Payment Terms: L/C, T/T, Western Union, D/P, D/A
Supply Ability: 500sets/Year
Specifications
Raw Material: Metal Sheet Plate
Control System: DA58T 4+1Axis
Machine Nominal Pressure: 800KN
Worktable Length: 2500mm
Distance Between Housings: 2050mm
Throat Depth: 250mm
RAM Stroke: 140mm
Max. Open Height: 395mm
Strokes Time: ≥10times/min
Machine Motor: 7.5kw
Machine Weight: 5.5T
Product Description
WC67K/Y-80T2500MM 4+1 Axis Bending Machine Hydraulic CNC Press Brake With DA58T Send To Ukraine
WC67K/Y-80T2500MM 4+1 Axis Bending Machine Hydraulic CNC Press Brake With DA58TSend To Ukraine


WC67Y Hydraulic Press brake
1. Steel-welded construction, vibration to eliminate stress, with high strength and good rigidity.
2. Hydualic top-drive, steadiness and reliability. Mechanical stop, steel torsion bar maintain synchronization, high precision.
3. Motorize-adjustinf device of backgauge and rams stroke, fine adjusting by handwheel, numberical display.

Characteristics
1. Adopt integrated hydraulic control system, more reliable and easy for maintenance. main hydraulic valves from Bosch (Germany)
2. All pipes, flange and joint with vibrations proof and leakage proof design and setting .
3. Overload overflow protection is outfitted to hydraulic system,which can assure no leakage,and the oil level can be read or seen directly.
4. The hydraulic system is made in compliance with current regulations.

ELECTRICAL SYSTEM
1. Electrical Cabinet under the international Standard, safe and reliable, strong anti interference capability.
2. Protective fence to ensure the operation safety. Have a movable single-hand pedal switch,easy to operate.

SYNCHRO CONTROL SYSTEM
1. Patented system for exact parallelism and a high repeat accuracy
2. The worktable adopts the particular design,reducing the crowning distortion amount of lower tool effectively.
3. Adopt steel torsion bar synchro system,simple in structure and high in accuracy,ensures the parallelism between beams is used for the synchronism.

RAM AND DIES
1. The equipped difference standard Dies according machine’s model, special non-standard mold is available under client's
requirement according to real workpiece situation.
2. Upper and buttom die can be sectioned according to customer’s requirement.
3. The Machine By CNC Controller or NC Control With the point of programming, can calculate thebending angle bending depth.




Technical Parameters:
800KN 4+1 Axis Hydraulic CNC Press Brake With DA58T 0​

Model Nominal pressure (KN) Worktable Length (mm) Columns Distance (mm) Throat Slider Max Main Dimension
Depth Stroke Open motor L x W x H
(mm) (mm) height Power (mm)
    (mm) (KW)
WC67Y/K-30/1600 300 1600 1280 200 80 190 3 1700×900×1650
WC67Y/K-30/2000 300 2000 1280 200 80 190 3 1700×900×1650
WC67Y/K-40/2500 400 2500 1900 280 100 320 5.5 2600×1100×1900
WC67Y/K-63/2500 630 2500 1900 350 170 380 5.5 3100×1450×2050
WC67Y/K-80/3200 800 3200 2700 350 170 380 7.5 3500×1550×2100
WC67Y/K-100/3200 1000 3200 2700 400 200 420 7.5 3500×1580×2400
WC67Y/K-160/3200 1600 3200 2700 400 200 420 11 3500×1650×2550
WC67Y/K-200/3200 2000 3200 2700 400 200 420 15 3500×1680×2550
WC67Y/K-250/3200 2500 3200 2700 400 200 420 15 3500×1700×2600
WC67Y/K-320/3200 3200 3200 2700 400 200 420 22 3500×1800×2730
WC67Y/K-400/4000 4000 4000 3500 500 320 600 30 4300×2450×3500
WC67Y/K-500/5000 5000 5000 3900 500 320 600 37 5400×2810×4300
WC67Y/K-500/6000 5000 6000 4900 500 320 600 37 6500×2810×4300
WC67Y/K-500/7000 5000 7000 4900 500 320 600 37 7500×2810×4900
WC67Y/K-600/5000 6000 5000 3900 500 320 600 45 5500×2910×4900
WC67Y/K-600/6000 6000 6000 4900 500 320 600 45 6500×2910×5100
WC67Y/K-600/7000 6000 7000 5900 500 320 600 45 7500×2910×5200
WC67Y/K-800/6000 8000 6000 4900 600 400 600 55 6500×2750 ×5300
WC67Y/K-800/8000 8000 8000 6900 600 400 600 55 8500×2750×5900
WC67Y/K-1000/6000 10000 6000 4900 600 400 600 2×37 6500×2800×5600
WC67Y/K-1000/8000 10000 8000 6900 600 400 600 2×37 8500×2800×6100
WC67Y/K-1000/10000 10000 10000 8000 600 400 600 2×37 10500×2800×5850
WC67Y/K-1200/6000 12000 6000 4900 600 400 800 2×37 6500×3100×5850
WC67Y/K-1200/8000 12000 8000 6900 600 400 800 2×37 8500×3100×7150




800KN 4+1 Axis Hydraulic CNC Press Brake With DA58T 1800KN 4+1 Axis Hydraulic CNC Press Brake With DA58T 2



Details:



Main Configuration


DA58T CNC controller;
Using HIWIN ball screw and linear guide, the accuracy is 0.01mm;
The front support bracket can be adjusted up and down;
German Hawe proportional valve;
Italian GIVI grating ruler;
German Bosch Rexroth hydraulic valve block;
German EMB oil pipe joint;
German Siemens main motor;
Schneider Electric of France;
Laser protection device;
Hydraulic and electrical overload protection;
Optional mechanical compensation device;
Double V mold (material: 42CrMo).



800KN 4+1 Axis Hydraulic CNC Press Brake With DA58T 3800KN 4+1 Axis Hydraulic CNC Press Brake With DA58T 4800KN 4+1 Axis Hydraulic CNC Press Brake With DA58T 5





Certifications:


800KN 4+1 Axis Hydraulic CNC Press Brake With DA58T 6800KN 4+1 Axis Hydraulic CNC Press Brake With DA58T 7



Packing Detail:


Each Hydraulic Press Brake with plastic film package first, then placed in a wooden case, wooden case with a foam filling.
We loaded the truck with heavy trucks for loading the cargo to the harbor terminal.

At the dock we pack the goods in containers and ship them abroad.
800KN 4+1 Axis Hydraulic CNC Press Brake With DA58T 8800KN 4+1 Axis Hydraulic CNC Press Brake With DA58T 9


Our workshop:


800KN 4+1 Axis Hydraulic CNC Press Brake With DA58T 10800KN 4+1 Axis Hydraulic CNC Press Brake With DA58T 11

Customer & EXPO:

800KN 4+1 Axis Hydraulic CNC Press Brake With DA58T 12800KN 4+1 Axis Hydraulic CNC Press Brake With DA58T 13

Our Service:

Pre-sales.
* Project design, performance introduction, technical agreement, contract signing, packaging
* Inquiry and consulting support.
* Sample testing support.

In-sales.
* We will provide you with the latest progress in the product assembly, packaging and transportation.

After-sale.
* We will provide free accessories for the damage to non - human parts.
* Training how to install the machine, training how to use the machine with video and so on
* And our technical staff can go abroad to provide technical guidance.
