Anhui Aoxuan Heavy Industry Machine Co., Ltd.
"Quality First! Customer First! Honesty First!"
Aoxuan CNC not only the manufacturer of Press Brake ,Shearing Machine, Laser Cutting Machine,Punching Machine, but also provide sheet metal automation solutions!
| Place of Origin: | China |
|---|---|
| Brand Name: | AOXUANZG |
| Certification: | CE |
| Model Number: | WE67K-40T/1600 |
| Minimum Order Quantity: | 1 set |
| Price: | $38859-$40978/unit |
| Packaging Details: | Standard export packing |
| Delivery Time: | 20-30 days |
| Payment Terms: | L/C, T/T, Western Union, D/P, D/A |
| Supply Ability: | 500sets/Year |
| Material: | Thin Metal Sheet | Controller: | CBK15 |
|---|---|---|---|
| Nominal Pressure: | 400KN | Max.Worktable Length: | 1600mm |
| Throat Depth: | 200mm | RAM Stroke: | 80mm |
| Max. Open Height: | 190mm | Strokes: | ≥ 25times/min |
| Main Motor: | 3kw | Machine Size: | 1700*900*1650mm |
| High Light: | 400KN Hydraulic CNC Press Brake,400KN Metal Plate Press Brakes,CNC Metal Plate Press Brakes |
||
Main Features:

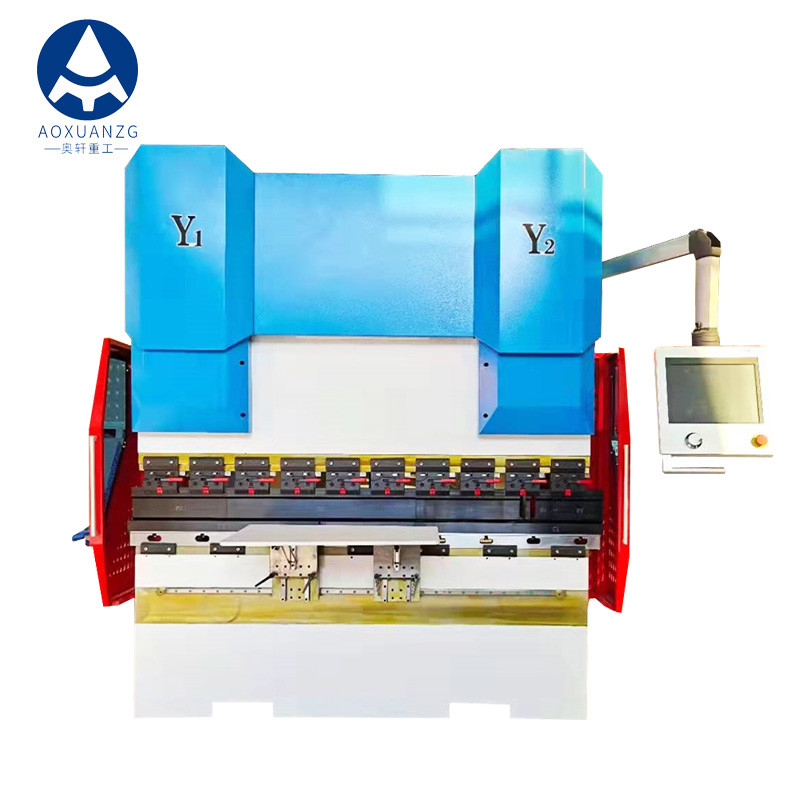

Pure electric servo bending machines are manufactured in accordance with the most stringent
quality standards. The Q345E steel frame is annealed at 1200 degrees before being precisely machined and carefully assembled by experienced professionals. The Pure electric servo bending machine works on the principle of dual servos, and the Y1 (left plunger) and Y2 (right plunger) axes are controlled by powerful tuke servo motors. This design can achieve the highest speed and accuracy, and ensure extremely low operating costs.
The Pure electric servo bending machine is equipped with a fast front-loading quick fixture as standard, which further saves tool change time and improves efficiency.Because of their high speed and high precision, they are widely used in robotic bending,Pure electric servo works with high-end robot manufacturers such as Kawasaki, Kuka, and Yaskawa to ensure that their machines are well suited for high-speed robotic bending applications.
The standard cofiguration:
Details:
Technical Parameters:
| Model | Nominal pressure (KN) | Worktable Length (mm) | Columns Distance (mm) | Throat | Slider | Max | Main | Dimension |
| Depth | Stroke | Open | motor | L x W x H | ||||
| (mm) | (mm) | height | Power | (mm) | ||||
| (mm) | (KW) | |||||||
| WC67Y/K-30/1600 | 300 | 1600 | 1280 | 200 | 80 | 190 | 3 | 1700×900×1650 |
| WC67Y/K-30/2000 | 300 | 2000 | 1280 | 200 | 80 | 190 | 3 | 1700×900×1650 |
| WC67Y/K-40/2500 | 400 | 2500 | 1900 | 280 | 100 | 320 | 5.5 | 2600×1100×1900 |
| WC67Y/K-63/2500 | 630 | 2500 | 1900 | 350 | 170 | 380 | 5.5 | 3100×1450×2050 |
| WC67Y/K-80/3200 | 800 | 3200 | 2700 | 350 | 170 | 380 | 7.5 | 3500×1550×2100 |
| WC67Y/K-100/3200 | 1000 | 3200 | 2700 | 400 | 200 | 420 | 7.5 | 3500×1580×2400 |
| WC67Y/K-160/3200 | 1600 | 3200 | 2700 | 400 | 200 | 420 | 11 | 3500×1650×2550 |
| WC67Y/K-200/3200 | 2000 | 3200 | 2700 | 400 | 200 | 420 | 15 | 3500×1680×2550 |
| WC67Y/K-250/3200 | 2500 | 3200 | 2700 | 400 | 200 | 420 | 15 | 3500×1700×2600 |
| WC67Y/K-320/3200 | 3200 | 3200 | 2700 | 400 | 200 | 420 | 22 | 3500×1800×2730 |
| WC67Y/K-400/4000 | 4000 | 4000 | 3500 | 500 | 320 | 600 | 30 | 4300×2450×3500 |
| WC67Y/K-500/5000 | 5000 | 5000 | 3900 | 500 | 320 | 600 | 37 | 5400×2810×4300 |
| WC67Y/K-500/6000 | 5000 | 6000 | 4900 | 500 | 320 | 600 | 37 | 6500×2810×4300 |
| WC67Y/K-500/7000 | 5000 | 7000 | 4900 | 500 | 320 | 600 | 37 | 7500×2810×4900 |
| WC67Y/K-600/5000 | 6000 | 5000 | 3900 | 500 | 320 | 600 | 45 | 5500×2910×4900 |
| WC67Y/K-600/6000 | 6000 | 6000 | 4900 | 500 | 320 | 600 | 45 | 6500×2910×5100 |
| WC67Y/K-600/7000 | 6000 | 7000 | 5900 | 500 | 320 | 600 | 45 | 7500×2910×5200 |
| WC67Y/K-800/6000 | 8000 | 6000 | 4900 | 600 | 400 | 600 | 55 | 6500×2750 ×5300 |
| WC67Y/K-800/8000 | 8000 | 8000 | 6900 | 600 | 400 | 600 | 55 | 8500×2750×5900 |
| WC67Y/K-1000/6000 | 10000 | 6000 | 4900 | 600 | 400 | 600 | 2×37 | 6500×2800×5600 |
| WC67Y/K-1000/8000 | 10000 | 8000 | 6900 | 600 | 400 | 600 | 2×37 | 8500×2800×6100 |
| WC67Y/K-1000/10000 | 10000 | 10000 | 8000 | 600 | 400 | 600 | 2×37 | 10500×2800×5850 |
| WC67Y/K-1200/6000 | 12000 | 6000 | 4900 | 600 | 400 | 800 | 2×37 | 6500×3100×5850 |
| WC67Y/K-1200/8000 | 12000 | 8000 | 6900 | 600 | 400 | 800 | 2×37 | 8500×3100×7150 |
Certifications:
Packing Detail:
Each Hydraulic Press Brake with plastic film package first, then placed in a wooden case, wooden case with a foam filling.
We loaded the truck with heavy trucks for loading the cargo to the harbor terminal.At the dock we pack the goods in containers
and ship them abroad.
Our Service
Pre-sales.
* Project design, performance introduction, technical agreement, contract signing, packaging
* Inquiry and consulting support.
* Sample testing support.
In-sales.
* We will provide you with the latest progress in the product assembly, packaging and transportation.
