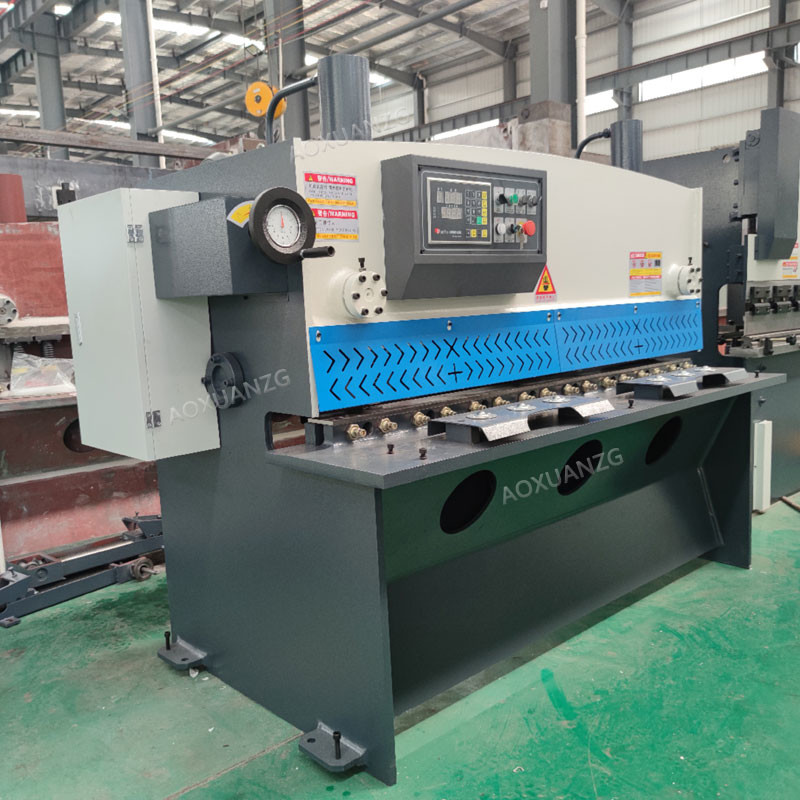

Metal Steel Plate Guillotine Shear Cutting Machine QC12Y-8 1600MM

Product Details

Place of Origin: China

Brand Name: AOXUANZG

Certification: CE

Model Number: QC11Y-8*1600

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: $8500-$11095/unit

Packaging Details: Standard export packing

Delivery Time: 20-30 days

Payment Terms: L/C, T/T, Western Union, D/P, D/A

Supply Ability: 500sets/Year

Get Best Price
Highlight:

Steel PlateHydraulic Guillotine Shearing Machine

,

Guillotine Shear Cutting Machine

,

Metal Plate Shear Cutting Machine

Material / Metal Processed:
Carbon/Stainless Steel/Iron
Control System:
E21S Controller
Cutting Thickness:
6mm
Cutting Width:
1600mm
Stroke Times:
12 Times/min
Main Motor:
7.5kw
Cutting Angle:
1°30'
Weight:
3.5T
Material / Metal Processed:
Carbon/Stainless Steel/Iron
Control System:
E21S Controller
Cutting Thickness:
6mm
Cutting Width:
1600mm
Stroke Times:
12 Times/min
Main Motor:
7.5kw
Cutting Angle:
1°30'
Weight:
3.5T
Metal Steel Plate Guillotine Shear Cutting Machine QC12Y-8 1600MM
QC12Y-8*1600MM Metal Steel Plate Guillotine Shears Cutting Machine Price For Sale



Machine Application:
Sheet metal folding machines can be used to shape metal sheets into boxes and pans in various sizes. Alsoused for ventilation,cases,trays,kitchen,furniture. Consumers can choose the machine according the material thinkness ,processingwidth of the metal sheets.there is light type,heavy type,tradition type(American type or european type),Each type can provide different width to be selected.we can do any model,non-standard products according to customer's special requirement.



Features:

1. Our Hydraulic Shearing Machine is a Swing Beam Action machine which is produced in a variety of cutting lengths and capacity options.
2. Adopt integrated hydraulic system, more reliable and easy for maintenance. and the hydraulic system from Bosch-Rexroth, Germany,
3. Equipped with lighting-alignment, so as to align when shearing. The stroke of knife beam can be adjusted in stepless mode.
4. Hydraulic drive, return of knife beam is smooth and prompt by nitrogen cylinder.
5. CE conformity including Tiltable Fornt Finger Guard and Optical Rear Safety Guard,
6. Safe fence and the electric interlocker have been designed for the machine to ensure the operation safety.


The standard cofiguration:
1. Rapid and precise blade clearance adjustment by single handle on the side frame
2. Multi Edge Blades for cutting Aluminium, Mild Steel and Stainless Steel
3. Cutting Line Illumination and wire for shadow line cutting
4. Counter of Strokes, Cutting Length Adjustment
5. Hydraulic and Electrical overload protection
6. Squaring Arm and Front Support Arms
7. E21S controller system
8. Germany Bosch-Rexroth Hydraulic
9. Telemecanique/SchneiderElectrics

Metal Steel Plate Guillotine Shear Cutting Machine QC12Y-8 1600MM 0Metal Steel Plate Guillotine Shear Cutting Machine QC12Y-8 1600MM 1
Technical Parameters:
Metal Steel Plate Guillotine Shear Cutting Machine QC12Y-8 1600MM 2

Model Thickness(mm) Cutting Length(mm) Cutting Angle(°) Material Strength (KN/CM) Stroke (times/min) Power(kw) Dimension(mm)
4×2500 4 2500 1°30’ ≤450 10 5.5 3040*1610*1620
4×3200 4 3200 1°30’ ≤450 10 5.5 3840*1610*1620
4×4000 4 4000 1°30’ ≤450 8 5.5 4600*1700*1700
4×6000 4 6000 1°30’ ≤450 5 7.5 6460*2100*3200
6×2500 6 2500 1°30’ ≤450 10 7.5 3040*1610*1620
6×3200 6 3200 1°30’ ≤450 9 7.5 3840*1610*1620
6×4000 6 4000 1°30’ ≤450 8 7.5 4620*1750*1700
6×5000 6 5000 1°30’ ≤450 6 7.5 5400*1750*1700
6×6000 6 6000 1°30’ ≤450 5 11 6480*2100*2300
8×2500 8 2500 1°30’ ≤450 10 7.5 3040*1700*1700
8×3200 8 3200 1°30’ ≤450 8 7.5 3860*1700*1700
8×4000 8 4000 1°30’ ≤450 8 7.5 4640*1700*1700
8×5000 8 5000 1°30’ ≤450 8 7.5 5400*2400*2000
8×6000 8 6000 1°30’ ≤450 8 11 6480*2100*2350
10×2500 10 2500 1°30’ ≤450 9 11 3040*1700*1700
10×3200 10 3200 1°30’ ≤450 9 11 3860*1700*1700
10×4000 10 4000 1°30’ ≤450 8 11 4650*2100*2000
10×6000 10 6000 ≤450 5 15 6500*2100*2300
12×2500 12 2500 ≤450 9 18.5 3140*2150*2000
12×3200 12 3200 ≤450 9 18.5 3880*2150*2000
12×4000 12 4000 ≤450 8 18.5 4680*2150*2000
12×5000 12 5000 ≤450 6 18.5 5900*2150*2000
12×6000 12 6000 ≤450 5 18.5 6900*2600*2700
12×8000 12 8000 ≤450 5 18.5 9000*3500*3500
16×2500 16 2500 2°30’ ≤450 9 18.5 3140*2150*2000
16×3200 16 3200 2°30’ ≤450 8 18.5 3880*2150*2000
16×4000 16 4000 2°30’ ≤450 8 18.5 4650*2150*2200
16×5000 16 5000 2°30’ ≤450 6 18.5 5900*2600*2700
16×6000 16 6000 2°30’ ≤450 5 22 6900*2700*2700
16×8000 16 8000 2°30’ ≤450 5 22 9000*3500*3500
20×2500 20 2500 ≤450 8 22 3440*2300*2500
20×3200 20 3200 ≤450 8 22 4150*2350*2700
20×4000 20 4000 ≤450 5 22 4850*2350*2700
20×6000 20 6000 ≤450 4 22 4850*2350*2700
25×2500 25 2500 ≤450 8 37 3200*2700*2900
25×3200 25 3200 ≤450 5 37 4200*2700*2900
30×2500 30 2500 ≤450 4 37 3300*2900*2900
30×3200 30 3200 3°30’ ≤450 4 40 4200*2900*2900
40×2500 40 2500 ≤450 3 75 3200*3300*3000
40×3200 40 3200 ≤450 3 90 4300*3300*3200



Metal Steel Plate Guillotine Shear Cutting Machine QC12Y-8 1600MM 3Metal Steel Plate Guillotine Shear Cutting Machine QC12Y-8 1600MM 4Metal Steel Plate Guillotine Shear Cutting Machine QC12Y-8 1600MM 5Metal Steel Plate Guillotine Shear Cutting Machine QC12Y-8 1600MM 6Metal Steel Plate Guillotine Shear Cutting Machine QC12Y-8 1600MM 7Metal Steel Plate Guillotine Shear Cutting Machine QC12Y-8 1600MM 8
