Product Details
Place of Origin: China
Brand Name: Aoxuanzg
Certification: CE,ISO
Model Number: JF21-45T
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: $17500-23500/SET
Packaging Details: Standard export packing
Delivery Time: 50-60 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 500 sets per year
Raw Material: |
Aluminum Foil Bowls Cups Plates |
Power: |
7.5kw |
Warranty: |
2 Years |
Power Source: |
Pneumatic |
Voltage: |
380v/220v |
CNC Or Not: |
CNC |
Raw Material: |
Aluminum Foil Bowls Cups Plates |
Power: |
7.5kw |
Warranty: |
2 Years |
Power Source: |
Pneumatic |
Voltage: |
380v/220v |
CNC Or Not: |
CNC |

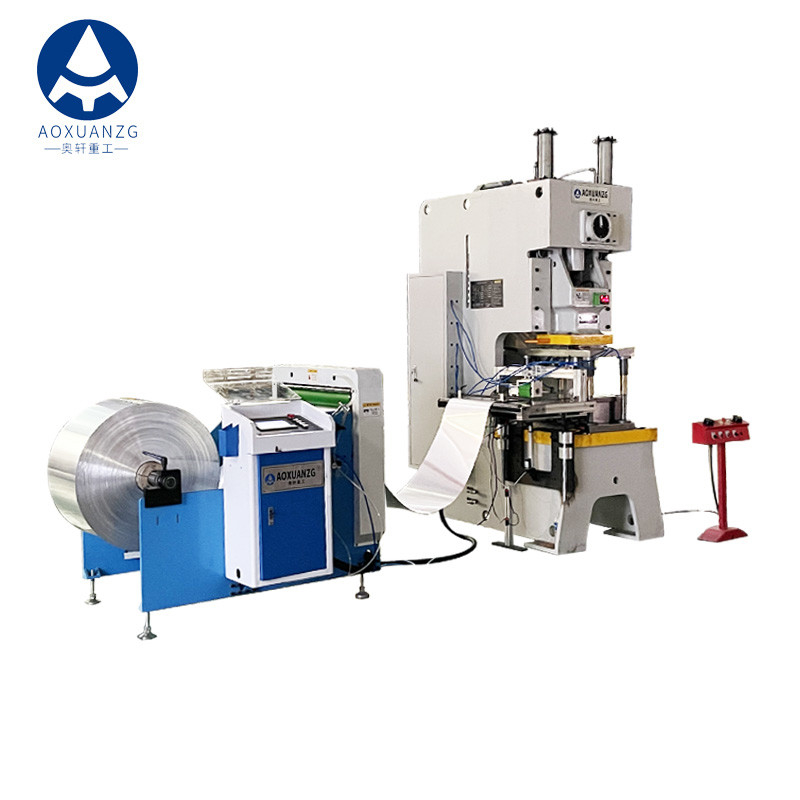

JF21-45T Semi Automatic Punching Press Aluminum Foil Bowls Cups Plates Macking Machine For Sale
Components:
1. Air compressor.
2. Automatic servo feeder.
3. 45/63/80T Aoxuanzg brand "C" frame pneumatic press.
5. Moulds.
6. Auto stacker with1-4 lanes.
7. Full /Semi automatic scrap aspirator & press machine.
Technical parameter:
|
ITEM
|
Unit
|
45T
|
63T
|
|
Nominal Pressure
|
kn
|
450
|
630
|
|
Slide Stroke Per Minutes
|
s.p.m
|
40-70
|
40-70
|
|
Maximum Mold Set Height
|
mm
|
450
|
450
|
|
Slide Adjustment
|
mm
|
60
|
80
|
|
Slide Bottom Size
|
mm
|
340*410
|
340*410
|
|
Bolster Size
|
mm
|
800*900
|
1100*1000
|
|
Throat Depth
|
mm
|
400
|
500
|
|
Total Power
|
kw
|
5.5
|
7.5
|
|
Weight
|
kg
|
5500
|
8500
|
|
Dimension
|
mm
|
1700*1200*3100
|
2200*1450*3400
|
1. Feeder with lubricating oil system:
Max. Diameter of roll :￠800mm
Max. Roll width :700mm
Feed speed :20-50M/min
Feeding length: 30-999 mm
Feeding tolerance :+ / -0.3 mm
2. 45T high precision pneumatic press:
Valve body working plate hole size :300*300mm
Travel time: 60-100 times/min
Stroke height :240 mm
Thickness of working plate :100mm
Max. Mounting height :390mm
Slider bottom size, handle hole size :220*400mm
Distance from slice center to fuselage :340mm
Mold height adjustment :80mm
Hole size of die shank :60mm
Table size :1000* 800mm
3. Two railway stackers
Conveyor width :550 mm
Height of collecting belt :1100-1300mm
Minimum container size :120 × 100mm(size adjustable)
Maximum container size :360 x250(size adjustable)
Maximum working speed :65 PC /min
4. Waste collector
Speed: 1450 RPM
Capacity :4 kW
Elevator: 1.5 meters
5. Mold: Mold prices depend on the size of your container.
The customer needs to send the aluminum foil container to us first, and then we will calculate the mold cost according to your size
For more information, please contact me (^o^)/~
