Product Details
Place of Origin: China
Brand Name: AOXUANZG
Certification: CE
Model Number: QC12K-6*3200
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: $10000-10300
Packaging Details: Wrap film around the machine, put in the export wooden case.
Delivery Time: 15-30 DAYS
Payment Terms: 50% deposit after order confirmed , 50% (payment after machine finished testing before shipping by（T/T）.
Supply Ability: 500 sets/year
Overall Dimension: |
3860*1700*1700mm |
Shearing Angle: |
1-2° |
Weight: |
6000kg |
Blade Gap Adjustment: |
Automatic |
Control System: |
CNC |
Table Height: |
800mm |
Blade Length: |
3200mm |
Stroke Times: |
8 Times/min |
Overall Dimension: |
3860*1700*1700mm |
Shearing Angle: |
1-2° |
Weight: |
6000kg |
Blade Gap Adjustment: |
Automatic |
Control System: |
CNC |
Table Height: |
800mm |
Blade Length: |
3200mm |
Stroke Times: |
8 Times/min |

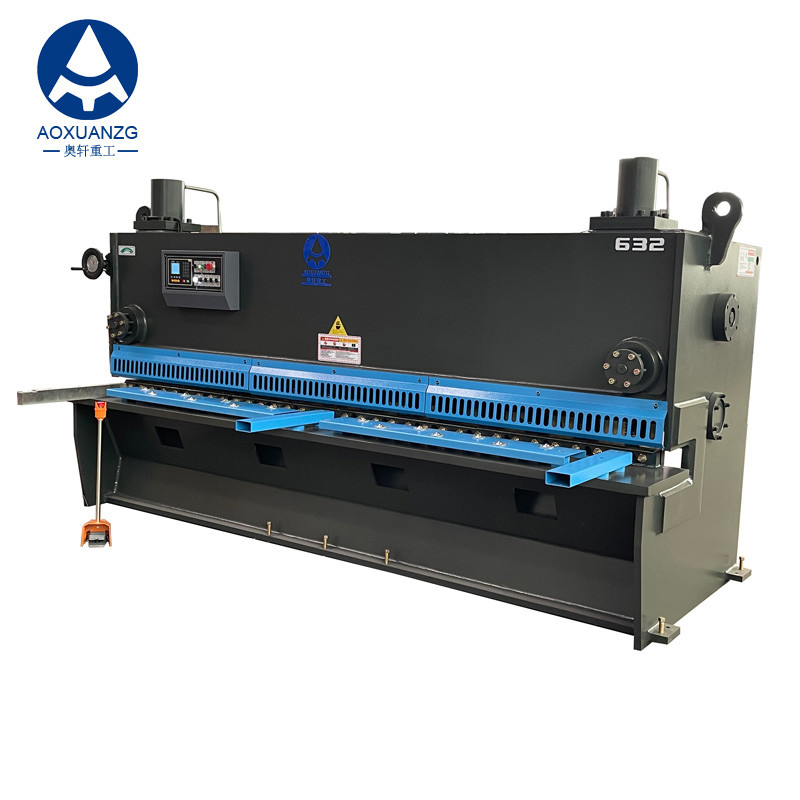

Q12K-6X3200MM Precision Hydraulic Guillotine Shearing Machine NC E21S Shears Cutter For Metal Plate
Hydraulic Guillotine Shearing Machine is a full-automatic hydraulic guillotine cutter which is widely used in sheet metal cutting. It is featured with a CNC control system and a manual/electric blade clearance adjustment, making it a reliable and efficient tool for shearing operation. The table height of this machine is 800mm and the material of blade is Cr12Mov, making it very durable and efficient. The weight of this machine is 6000kg, allowing for secure and stable operation.
Hydraulic Guillotine Shearing Machine is the ideal choice for any sheet metal cutting and shearing operation. It is equipped with full-automatic hydraulic system, making it highly efficient and accurate. It is designed with a manual/electric blade clearance adjustment, allowing for fast and precise cutting. With its reliable and efficient performance, it can easily meet the demands of any shearing operations.
Technical parameter:
| Model | Thickness (mm) |
Cutting Length (mm) |
Cutting Angle (°) |
Material Strength (KN/CM) |
Stroke (times/min) |
Power (kw) |
Dimension(mm) |
| 4×2500 | 4 | 2500 | 1°30’ | ≤450 | 10 | 5.5 | 3040*1610*1620 |
| 4×3200 | 4 | 3200 | 1°30’ | ≤450 | 10 | 5.5 | 3840*1610*1620 |
| 4×4000 | 4 | 4000 | 1°30’ | ≤450 | 8 | 5.5 | 4600*1700*1700 |
| 4×6000 | 4 | 6000 | 1°30’ | ≤450 | 5 | 7.5 | 6460*2100*3200 |
| 6×2500 | 6 | 2500 | 1°30’ | ≤450 | 10 | 7.5 | 3040*1610*1620 |
| 6×3200 | 6 | 3200 | 1°30’ | ≤450 | 9 | 7.5 | 3840*1610*1620 |
| 6×4000 | 6 | 4000 | 1°30’ | ≤450 | 8 | 7.5 | 4620*1750*1700 |
| 6×5000 | 6 | 5000 | 1°30’ | ≤450 | 6 | 7.5 | 5400*1750*1700 |
| 6×6000 | 6 | 6000 | 1°30’ | ≤450 | 5 | 11 | 6480*2100*2300 |
| 8×2500 | 8 | 2500 | 1°30’ | ≤450 | 10 | 7.5 | 3040*1700*1700 |
| 8×3200 | 8 | 3200 | 1°30’ | ≤450 | 8 | 7.5 | 3860*1700*1700 |
| 8×4000 | 8 | 4000 | 1°30’ | ≤450 | 8 | 7.5 | 4640*1700*1700 |
| 8×5000 | 8 | 5000 | 1°30’ | ≤450 | 8 | 7.5 | 5400*2400*2000 |
| 8×6000 | 8 | 6000 | 1°30’ | ≤450 | 8 | 11 | 6480*2100*2350 |
| 10×2500 | 10 | 2500 | 1°30’ | ≤450 | 9 | 11 | 3040*1700*1700 |
| 10×3200 | 10 | 3200 | 1°30’ | ≤450 | 9 | 11 | 3860*1700*1700 |
| 10×4000 | 10 | 4000 | 1°30’ | ≤450 | 8 | 11 | 4650*2100*2000 |
| 10×6000 | 10 | 6000 | 2° | ≤450 | 5 | 15 | 6500*2100*2300 |
| 12×2500 | 12 | 2500 | 2° | ≤450 | 9 | 18.5 | 3140*2150*2000 |
| 12×3200 | 12 | 3200 | 2° | ≤450 | 9 | 18.5 | 3880*2150*2000 |
| 12×4000 | 12 | 4000 | 2° | ≤450 | 8 | 18.5 | 4680*2150*2000 |
| 12×5000 | 12 | 5000 | 2° | ≤450 | 6 | 18.5 | 5900*2150*2000 |
| 12×6000 | 12 | 6000 | 2° | ≤450 | 5 | 18.5 | 6900*2600*2700 |
| 12×8000 | 12 | 8000 | 2° | ≤450 | 5 | 18.5 | 9000*3500*3500 |
| 16×2500 | 16 | 2500 | 2°30’ | ≤450 | 9 | 18.5 | 3140*2150*2000 |
| 16×3200 | 16 | 3200 | 2°30’ | ≤450 | 8 | 18.5 | 3880*2150*2000 |
| 16×4000 | 16 | 4000 | 2°30’ | ≤450 | 8 | 18.5 | 4650*2150*2200 |
| 16×5000 | 16 | 5000 | 2°30’ | ≤450 | 6 | 18.5 | 5900*2600*2700 |
| 16×6000 | 16 | 6000 | 2°30’ | ≤450 | 5 | 22 | 6900*2700*2700 |
| 16×8000 | 16 | 8000 | 2°30’ | ≤450 | 5 | 22 | 9000*3500*3500 |
| 20×2500 | 20 | 2500 | 3° | ≤450 | 8 | 22 | 3440*2300*2500 |
| 20×3200 | 20 | 3200 | 3° | ≤450 | 8 | 22 | 4150*2350*2700 |
| 20×4000 | 20 | 4000 | 3° | ≤450 | 5 | 22 | 4850*2350*2700 |
| 20×6000 | 20 | 6000 | 3° | ≤450 | 4 | 22 | 4850*2350*2700 |
| 25×2500 | 25 | 2500 | 3° | ≤450 | 8 | 37 | 3200*2700*2900 |
| 25×3200 | 25 | 3200 | 3° | ≤450 | 5 | 37 | 4200*2700*2900 |
| 30×2500 | 30 | 2500 | 3° | ≤450 | 4 | 37 | 3300*2900*2900 |
| 30×3200 | 30 | 3200 | 3°30’ | ≤450 | 4 | 40 | 4200*2900*2900 |
| 40×2500 | 40 | 2500 | 4° | ≤450 | 3 | 75 | 3200*3300*3000 |
| 40×3200 | 40 | 3200 | 4° | ≤450 | 3 | 90 | 4300*3300*3200 |
The AOXUANZG Hydraulic Guillotine Shearing Machine is a reliable and efficient guillotine cutter that offers accurate shearing of metals and other materials. It's equipped with hydraulic and pneumatic support racks that provide superior cutting power, allowing for more precise and efficient shearing. The machine comes with a Model Number QC12K-6*3200 and is certified by CE for safety and quality. It has a Minimum Order Quantity of 1, a Price of $10000-10300, and can be delivered within 15-30 DAYS. Payment can be made in two parts: 50% deposit after order confirmed, and 50% (payment after machine finished testing) before shipping by T/T. The Supply Ability is 500 sets/year, and the Shearing Angle is 1-2° with a Cutting Length of 3200mm and a Weight of 6000kg. The Blade Clearance Adjustment and Blade Gap Adjustment are both manual/electric, and the machine itself is wrapped with film and placed in an export wooden case for shipping.
Brand Name: AOXUANZG
Model Number: QC12K-6*3200
Place of Origin: China
Certification: CE
Minimum Order Quantity: 1
Price: $10000-10300
Packaging Details: Wrap film around the machine, put in the export wooden case.
Delivery Time: 15-30 DAYS
Payment Terms: 50% deposit after order confirmed , 50% (payment after machine finished testing before shipping by(T/T).
Supply Ability: 500 sets/year
Weight: 6000kg
Control System: CNC
Cutting Length: 3200mm
Cutting Thickness: 6mm
Blade Length: 3200mm
AOXUANZG customized Hydraulic Guillotine Shearing Machine is designed for cutting metal plates of different thicknesses. It is equipped with a QC12K-6*3200 hydraulic guillotine with a cutting length of 3200mm and a cutting thickness of 6mm. The blade length is 3200mm. The control system is CNC, and the weight is 6000kg. The minimum order quantity is 1, and the price is $10000-10300. The delivery time is 15-30 days. We accept 50% deposit after order confirmed and 50% payment after machine finished testing before shipping by(T/T). We can provide 500 sets/year. The packaging details are wrap film around the machine and put in the export wooden case. It is certified by CE.
We offer comprehensive technical support and service for our Hydraulic Guillotine Shearing Machine. Our team of experienced technicians and engineers are equipped with the latest tools and technologies to ensure that our customers receive the highest quality of technical support and service.
We provide on-site installation and setup, repair and maintenance services, and preventive maintenance inspections. We also offer instruction and guidance on the proper use and operation of the machine, as well as comprehensive training and certification programs.
Our customer service team is available 24/7 to answer any questions or concerns you may have regarding the use and maintenance of our Hydraulic Guillotine Shearing Machine. We are committed to providing you with the highest level of customer service and technical support.
The hydraulic guillotine shearing machine is securely packaged in a wooden crate or wooden box and then shipped by air, sea, truck or train. The crate or box is designed with heavy duty carrying handles and is lined with foam to protect the machine from any external damage. The machine is also strapped inside the crate with metal straps.
The crate or box also contains all the documents required for shipping the machine, such as the commercial invoice, packing list, and other export documents. All the documents are securely placed in a waterproof envelope and placed inside the crate or box.
The crate or box is then placed on a pallet and shrink wrapped for additional protection. This helps to ensure that the machine is safely delivered to its destination.
If you are interested, please contact me ^-^
